Enterprise Product Overview & Architecture
Comprehensive Protection & Deployment Scalability
Procuring through KYS Infotech ensures your organization receives verified, enterprise-grade licensing, direct OEM deployment support, and dedicated architectural consultation. Designed for modern corporate infrastructure, TP-Link Omada EAP230-Wall AC1200 Wireless MU-MIMO Wall Plate Access Point delivers unmatched performance, robust threat mitigation, and seamless regulatory compliance.

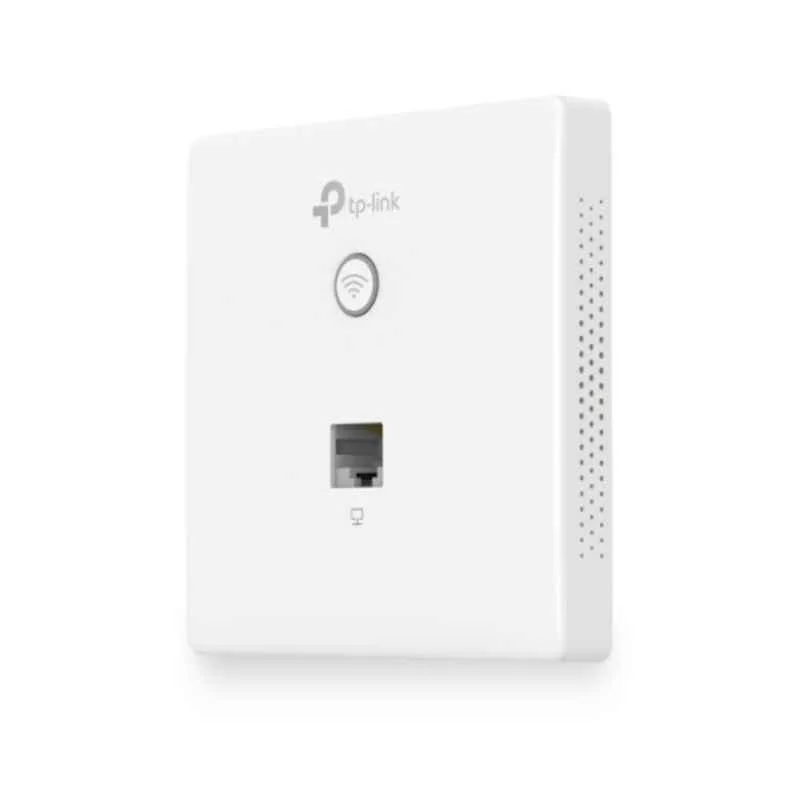

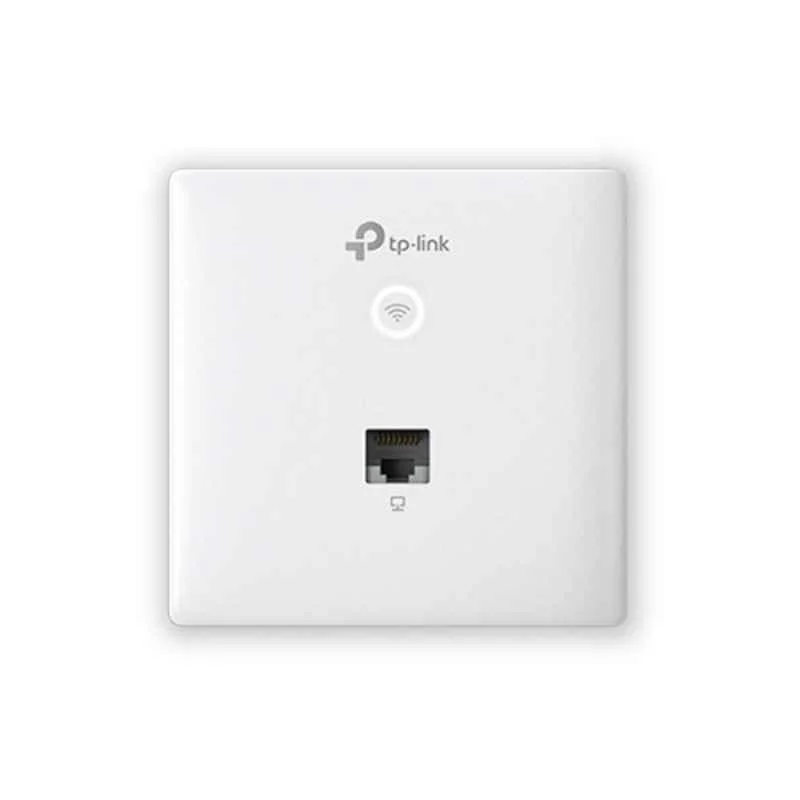

The TP-Link Omada EAP230-Wall Access Point delivers high-speed, reliable wireless connectivity in environments such as hotels, dormitories, and corporate offices. Built with dual-band 802.11ac Wave 2 technology, it supports speeds up to 1,167 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. With 2×2 MU-MIMO, the EAP230-Wall efficiently serves multiple devices at once. This reduces latency and boosts user productivity in high-density environments.
Moreover, integration with the Omada SDN platform brings advanced centralized cloud control via the Omada app, web UI, or Omada controller. This unified approach enables easy deployment, real-time monitoring, and remote management, all from one dashboard. Administrators can enable features such as captive portal, band steering, 802.1Q VLAN, and seamless roaming. These tools ensure users stay connected even while moving between rooms or floors.

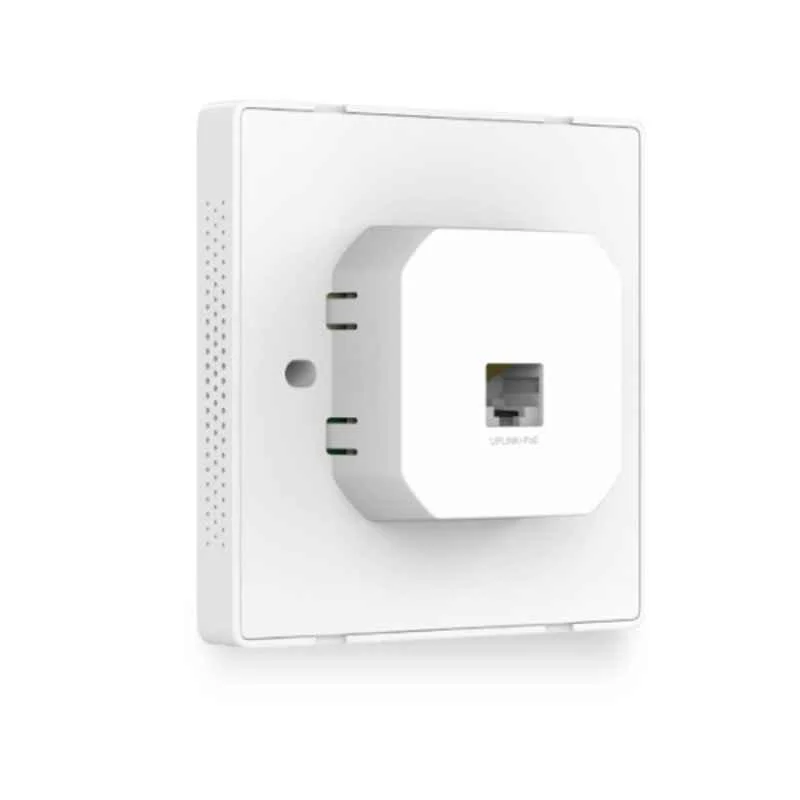

The EAP230-Wall also features Power over Ethernet (PoE) support, requiring only a single cable for both power and data. With two Gigabit Ethernet ports, one uplink and one downlink, it also supports connecting additional wired devices like VoIP phones or IP TVs. Installation is simple, thanks to its ultra-slim 11mm profile, which fits perfectly onto existing wall plates and matches standard outlet or light switch dimensions.
Security is another strong point. With support for WPA3 encryption, MAC filtering, and up to 16 SSIDs, network segmentation and protection are easy to manage. While thick walls may slightly impact range, the overall performance remains excellent for in-room wireless coverage.
Backed by a 5-year limited warranty, the TP-Link Omada EAP230-Wall Access Point offers scalable, professional-grade WiFi with long-term reliability and security in mind.
