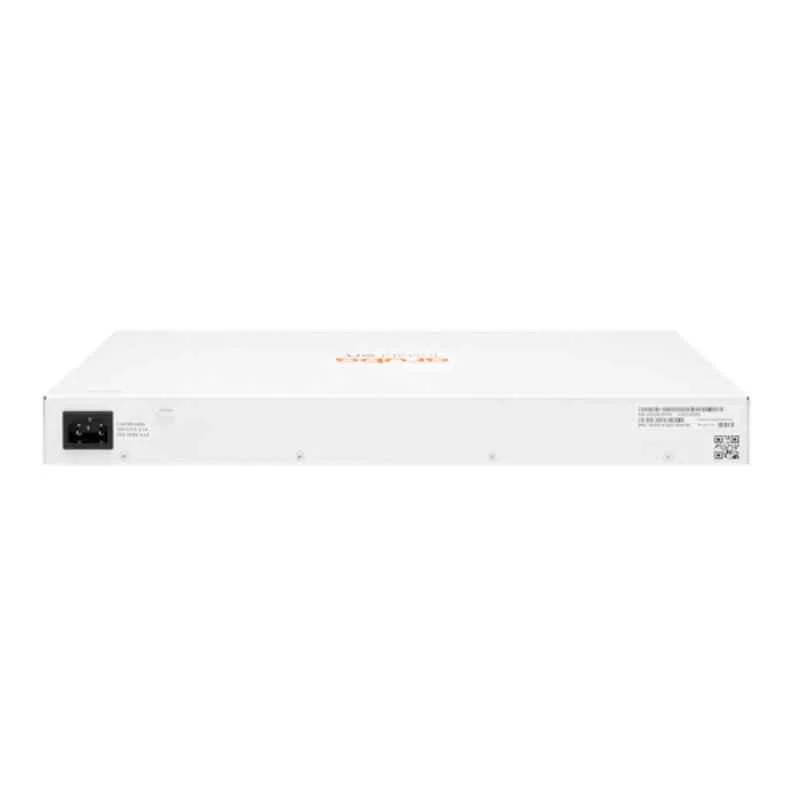

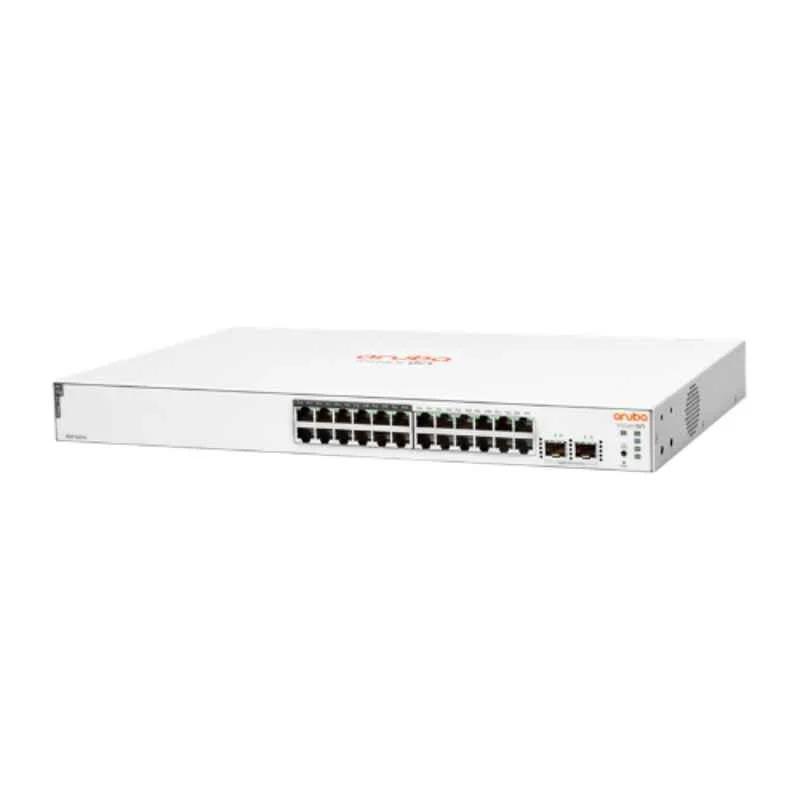

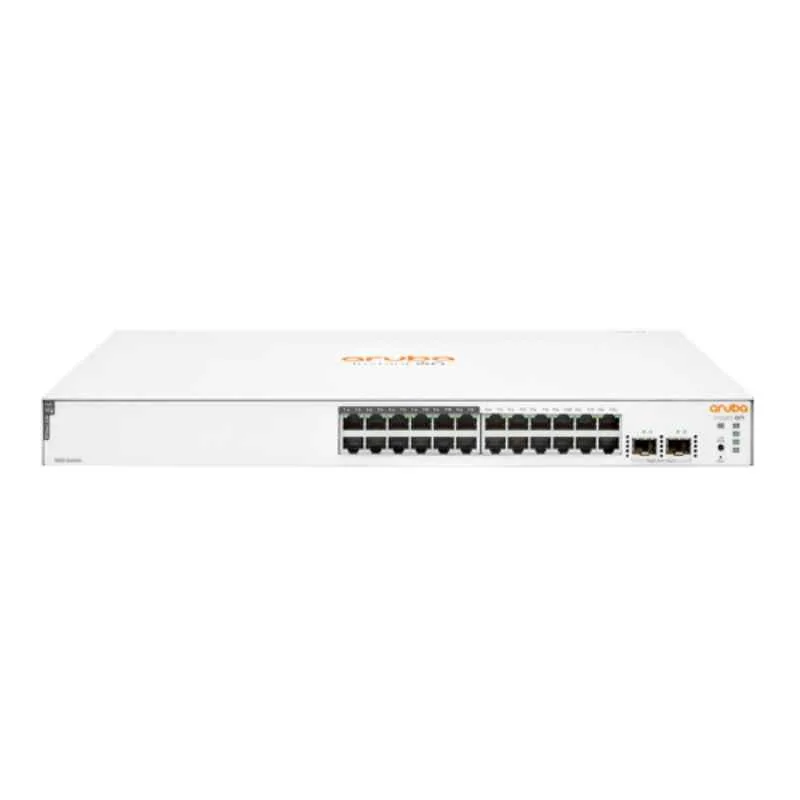

HPE Aruba Instant On 1830 195W 24 Port 24G 12P Class 4 PoE 2SFP Network Switch, JL813A

Technical Specification

• Product Type: Smart-Managed Layer 2 Ethernet Switch

• Ports:

  • 24 x 10/100/1000Base-T Gigabit Ethernet (RJ-45), ports 1-12 support Class 4 PoE+

  • 2 x 1G SFP uplink ports

• Power over Ethernet (PoE):

  • Class 4 PoE+ (IEEE 802.3at/af) on ports 1-12

  • Total PoE power budget: 195W

  • Up to 30W per port (limited by total budget)

• Switching Capacity: 52 Gbps (non-blocking)

• Forwarding Rate: 38.68 Mpps (64-byte packets)

• Layer Support: Layer 2 (Layer 3 static routing not supported)

• MAC Address Table: 16,000 entries

• VLAN Support: Up to 4,096 VLANs, supports voice VLAN, guest VLAN

• Jumbo Frames: Up to 9,216 bytes

• Memory and Processor:

  • Processor: ARM Cortex-A9 @ 800 MHz

  • Memory: 512 MB SDRAM, 256 MB flash

  • Packet Buffer: 1.5 MB

• Power Supply: Internal, 100-240V AC, 50/60 Hz

• Power Consumption:

  • Maximum: 244.6W (100-127V), 237.2W (200-220V) with PoE

  • Idle: 14.5W (100-127V), 13.4W (200-220V)

• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet, auto-port shutdown

• Cooling: Fanless for silent operation

• Stacking: Not supported

• Management:

  • Aruba Instant On cloud management (mobile app/web portal)

  • Local web GUI, SNMP, quick start-up wizard

• Security Features:

  • IEEE 802.1X port authentication, VLANs

  • Global Storm Control, Denial-of-Service (DoS) protection

  • Trusted Platform Module (TPM) for cryptographic key storage

  • DHCP snooping, dynamic ARP inspection

• Quality of Service (QoS):

  • 802.1p, DSCP, 8 priority queues

  • Traffic prioritization for VoIP/video

• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.3af, 802.3at, 802.3az, 802.3ac, 802.3ad

• Dimensions: 443 x 253 x 44 mm (17.44 x 9.96 x 1.73 in)

• Weight: 3.47 kg (7.65 lb)

• Mounting: Rack-mountable (1U, includes rack kit), desktop, wall-mountable

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• MTBF: Not specified (typical for series: ~500,000 hours)

• Certifications: UL 62368-1, IEC 60950-1, EN 55032 Class A, FCC Part 15 Class A

• Warranty: Limited Lifetime Warranty
