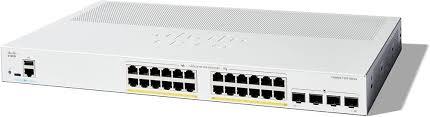

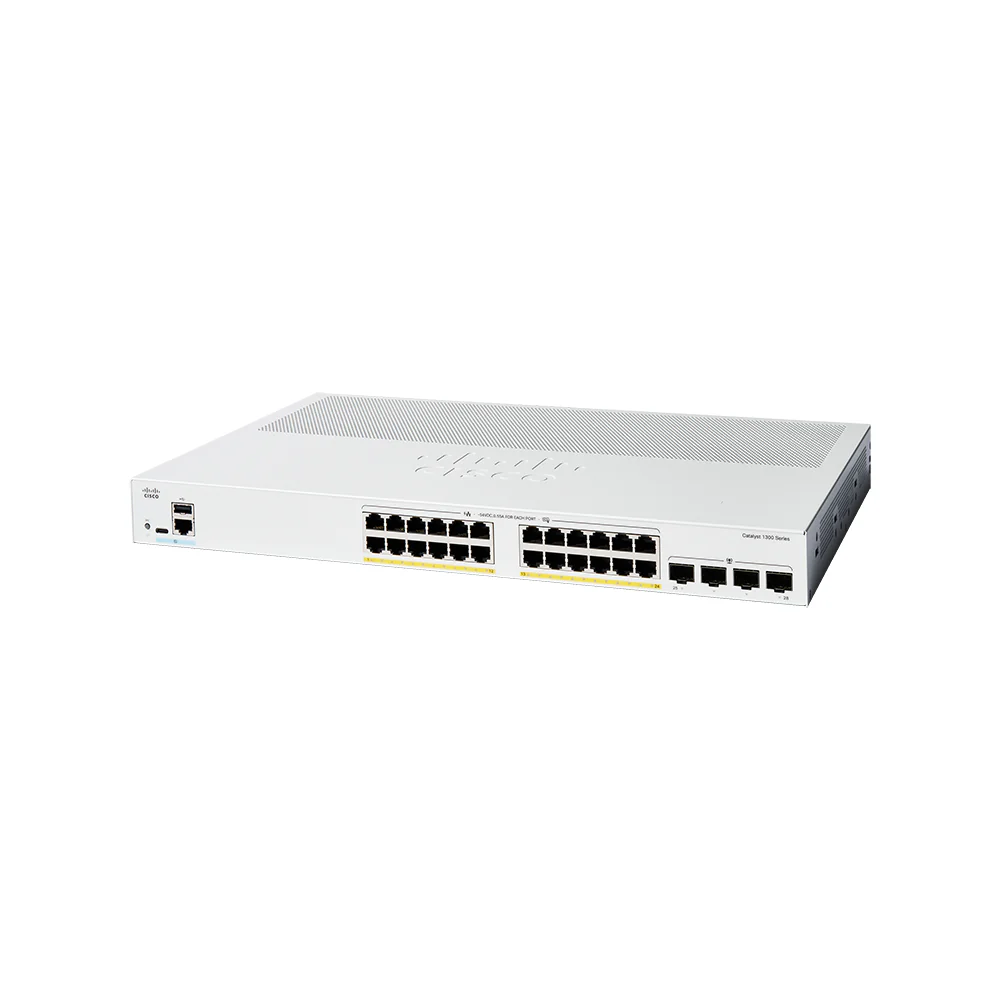

Cisco Catalyst C1300-24P-4G POE Managed Switch, 24 Port GE, PoE, 4x1GE SFP
Cisco Catalyst C1300-24P-4G POE Managed Switch, 24 Port GE, PoE, 4x1GE SFP - Image 2
Cisco Catalyst C1300-24P-4G POE Managed Switch, 24 Port GE, PoE, 4x1GE SFP - Image 3
Cisco Catalyst C1300-24P-4G POE Managed Switch, 24 Port GE, PoE, 4x1GE SFP - Image 4
,

Cisco Catalyst C1300-24P-4G POE Managed Switch, 24 Port GE, PoE, 4x1GE SFP

Compare

Cisco Catalyst C1300-24P-4G Switch: 24-port Gigabit Ethernet with PoE+ (195W), 4 x 1G SFP uplinks, Layer 3, fanless, managed via Cisco Business Dashboard, Limited Lifetime Warranty.

₹58,500.00 ₹80,000.00

Compare

The Cisco Catalyst C1300-24P-4G is a versatile, fully managed Layer 3 switch tailored for small and medium-sized businesses (SMBs) and branch offices. It features 24 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support, providing a 195W PoE budget to power devices such as IP phones, wireless access points, and IP cameras. Equipped with 4 x 1G SFP uplink ports, it ensures flexible connectivity to higher-tier networks. Managed through the Cisco Business Dashboard or mobile app, it offers simplified setup, robust security (802.1X, IPv6 First Hop Security), and advanced Quality of Service (QoS) for prioritizing critical traffic. Its fanless design ensures silent operation, and the rack-mountable form factor suits various deployment scenarios. With IEEE 802.3az Energy Efficient Ethernet and a Limited Lifetime Warranty, this switch delivers reliable, energy-efficient performance for growing networks.

Categories: , Tags: , , , , , , , , , , , Brand:

Technical Specification

  • Product Type: Managed Layer 3 Switch

  • Ports:

    • 24 x 10/100/1000Base-T Gigabit Ethernet (RJ-45) with PoE+

    • 4 x 1G SFP uplink ports

    • 1 x RJ-45 console port, 1 x USB Type-C for management

  • Power over Ethernet (PoE):

    • PoE+ (IEEE 802.3at/af) on all 24 ports

    • Total PoE power budget: 195W

    • Up to 30W per port (limited by total budget)

  • Switching Capacity: 56 Gbps (non-blocking)

  • Forwarding Rate: 41.66 Mpps (64-byte packets)

  • Layer Support: Layer 2 and Layer 3 (static routing, RIP, policy-based routing)

  • MAC Address Table: 16,000 entries

  • VLAN Support: Up to 4,093 VLANs, voice VLAN, guest VLAN, protocol-based VLANs

  • Jumbo Frames: Up to 9,000 bytes

  • Memory: 1 GB DRAM, 512 MB flash

  • Processor: Dual-core ARM (frequency not specified)

  • Power Supply: Internal, 100-240V AC

  • Power Consumption: 27.3W (idle, no PoE); ~230W (max with PoE)

  • Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet, auto power-down, cable length detection

  • Cooling: Fanless for silent operation

  • Stacking: Not supported (virtual stacking up to 4 units via software)

  • Management: Cisco Business Dashboard, Cisco Business mobile app, web-based UI, CLI, SNMP, Cisco Network Plug and Play (PnP)

  • Security Features:

    • IEEE 802.1X port authentication, port security

    • IP-MAC binding, IPv6 First Hop Security, DHCP snooping

    • Access Control Lists (ACLs), Dynamic ARP Inspection (DAI), Secure Shell (SSH)

  • Quality of Service (QoS):

    • 802.1p, DSCP, DiffServ, policing, shaping

    • VoIP/video traffic prioritization, 8 priority queues

  • Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3af/at, 802.3az

  • Dimensions: 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)

  • Weight: 3.53 kg (7.78 lb)

  • Mounting: Rack-mountable (1U), desktop

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)

  • MTBF: Not specified (typical for series: ~500,000 hours)

  • Certifications: UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1, CE marking, FCC Part 15 Class A

  • Warranty: Limited Lifetime Warranty
