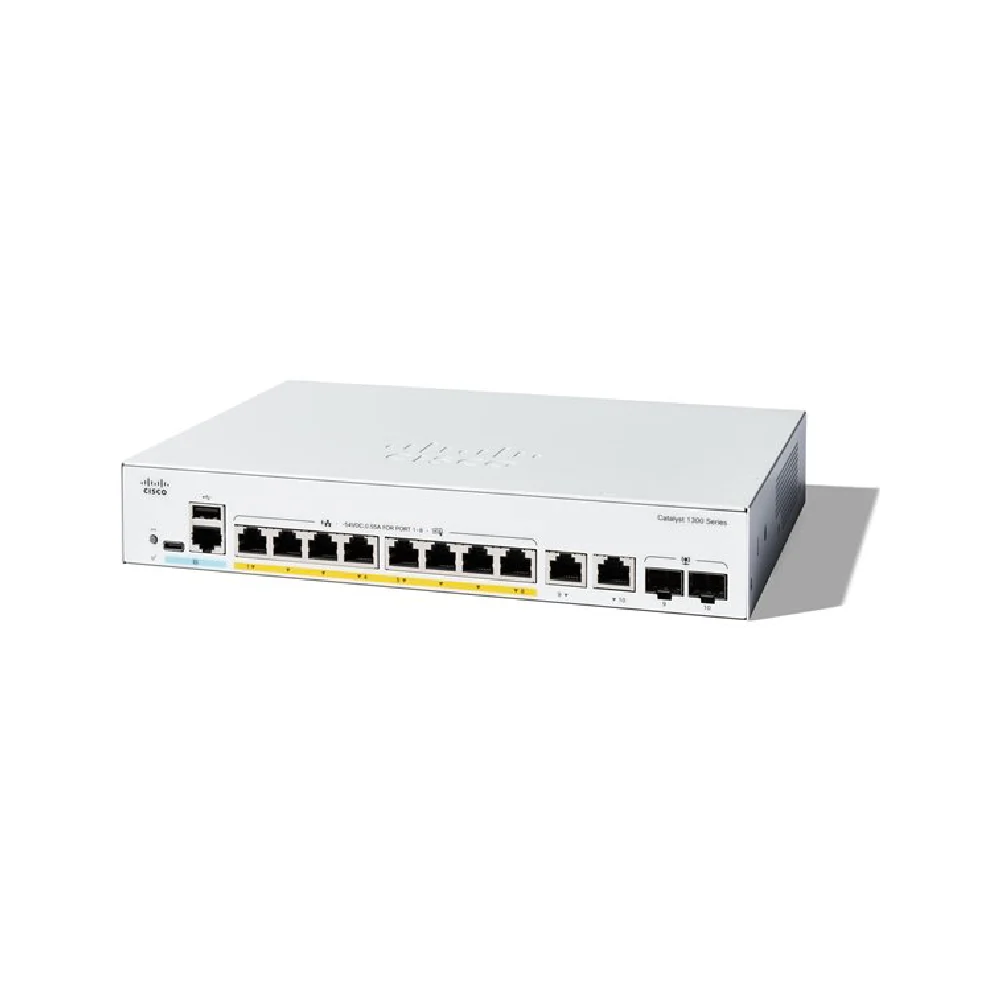

Cisco Catalyst 1300 8-Port Gigabit Switch + 2 x Gig Combo | C1300-8T-E-2G

Technical Specification

• Product Type: Managed Layer 3 Switch

• Ports:

  • 8 x 10/100/1000Base-T Gigabit Ethernet (RJ-45)

  • 2 x 1G RJ45/SFP combo uplink ports

  • 1 x RJ-45 console port, 1 x USB Type-C for management

• Switching Capacity: 20 Gbps (non-blocking)

• Forwarding Rate: 14.88 Mpps (64-byte packets)

• Layer Support: Layer 2 and Layer 3 (static routing, RIP, policy-based routing)

• MAC Address Table: 16,000 entries

• VLAN Support: Up to 4,093 VLANs, voice VLAN, guest VLAN, protocol-based VLANs

• Jumbo Frames: Up to 9,000 bytes

• Memory: 1 GB DRAM, 512 MB flash

• Processor: Dual-core ARM (frequency not specified)

• Power over Ethernet (PoE): Not supported (data-only model)

• Power Supply: External, 100-240V AC

• Power Consumption: 12.1W (typical, no PoE)

• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet, auto power-down, cable length detection

• Cooling: Fanless for silent operation

• Stacking: Not supported (virtual stacking up to 4 units via software)

• Management: Cisco Business Dashboard, Cisco Business mobile app, web-based UI, CLI, SNMP, Cisco Network Plug and Play (PnP)

• Security Features:

  • IEEE 802.1X port authentication, port security

  • IP-MAC binding, IPv6 First Hop Security, DHCP snooping

  • Access Control Lists (ACLs), Dynamic ARP Inspection (DAI), Secure Shell (SSH)

• Quality of Service (QoS):

  • 802.1p, DSCP, DiffServ, policing, shaping

  • VoIP/video traffic prioritization, 8 priority queues

• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3az

• Dimensions: 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)

• Weight: 1.39 kg (3.06 lb)

• Mounting: Rack-mountable (kit optional), desktop

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• MTBF: Not specified (typical for series: ~500,000 hours)

• Certifications: UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1, CE marking, FCC Part 15 Class A

• Warranty: Enhanced Limited Lifetime Warranty
