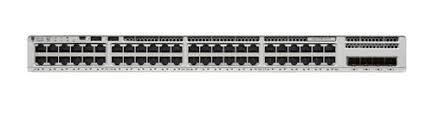

Cisco C9200L-48T-4X-E 48 Ports 2GB RAM 176Gbps Data Uplink Network Switch

Technical Specification:

• Product Type: Layer 3 Managed Switch
• Ports:
  • 48 x 10/100/1000Base-T Gigabit Ethernet (RJ-45)
  • 4 x 10G SFP+ uplink ports
  • 1 x RJ-45 management port
• Switching Capacity: 176 Gbps (non-blocking)
• Forwarding Rate: 261.9 Mpps (64-byte packets)
• Layer Support: Layer 2 and Layer 3 (static routing, RIP, OSPF, EIGRP for routed access)
• MAC Address Table: 32,000 entries
• VLAN Support: Up to 4,096 VLANs, voice VLAN, guest VLAN
• Jumbo Frames: Up to 9,198 bytes
• Memory: 2 GB DRAM, 4 GB flash
• Processor: UADP 2.0 Mini with integrated CPU
• Power over Ethernet (PoE): Not supported (data-only model)
• Power Supply:
  • Default: 1 x PWR-C5-125WAC (125W AC)
  • Redundant: 2 x slots (options: PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-BLANK)
• Power Consumption: 38W (typical, no PoE)
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet, per-port power control
• Cooling: Fixed redundant fans

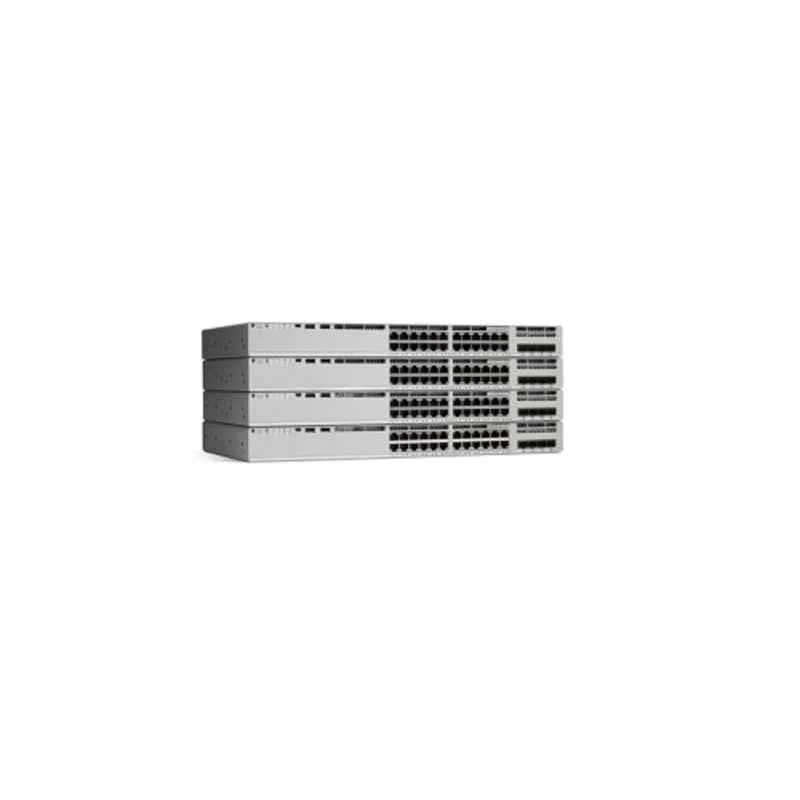

• Stacking: StackWise-160 (up to 8 units, 160 Gbps bandwidth) via C9200L-STACK-KIT (not included)
• Stacking Cables: STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M (not included)
• Management: Cisco Catalyst Center, web-based UI, CLI, SNMP, Cisco Network Plug and Play (PnP)
• Security Features:
  • AES-128 MACsec encryption, policy-based segmentation
  • IEEE 802.1X, port security, DHCP snooping
  • IP-MAC binding, IPv6 First Hop Security
• Quality of Service (QoS): 802.1p, DSCP, DiffServ, policing, shaping, VoIP optimization
• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3ae, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3az
• Dimensions: 445 x 288 x 44 mm (17.5 x 11.3 x 1.73 in)
• Weight: 4.8 kg (10.58 lb)
• Mounting: Rack-mountable (1U)
• Operating Temperature: -5°C to 45°C (23°F to 113°F)
• MTBF: 609,660 hours
• Certifications: UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1, CE marking
• Warranty: Limited lifetime
