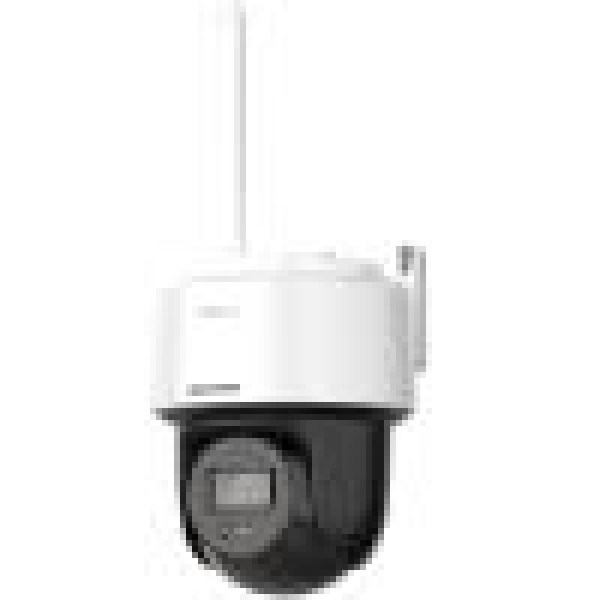

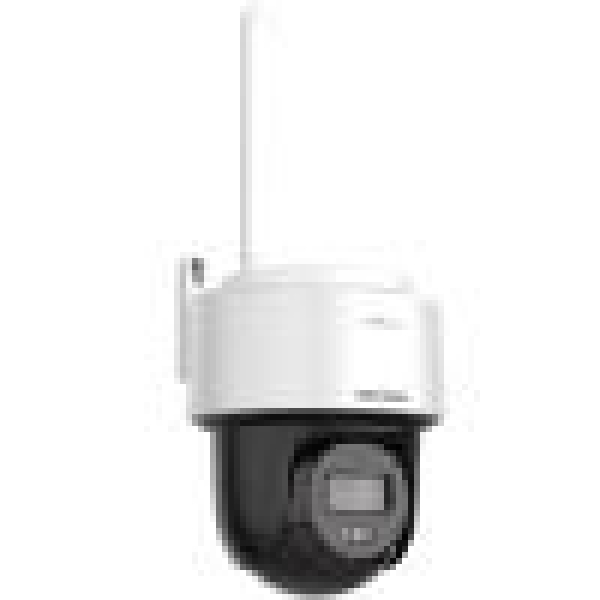

HIKVISION Cable free Series-4 MP Smart WiFi Hybrid Light Mini PT DS-2DE2C400MWG-4G

Technical Specification

• Image Sensor: 1/2.7″ Progressive Scan CMOS

• Max. Resolution: 2560 × 1440

• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

• Lens: Fixed focal lens, 2.8 mm (FOV: 94° horizontal, 49° vertical) or 4 mm (FOV: 70° horizontal, 35° vertical)

• PTZ: Pan: 0° to 345°, Tilt: 0° to 80°, Pan Speed: up to 25°/s, Tilt Speed: up to 20°/s

• Illumination: IR and White Light, up to 30 m

• Video Compression: H.265/H.264 (main stream), H.265/H.264/MJPEG (sub-stream)

• Frame Rate: Main stream: 20 fps (50 Hz/60 Hz) at 2560 × 1440, 1920 × 1080, 1280 × 720; Sub-stream: 20 fps (50 Hz/60 Hz) at 768 × 432

• Audio: Mono sound, 1 built-in microphone, 1 built-in speaker (1.5 W, 95 dB at 10 cm), G.711/AAC-LC compression

• Storage: MicroSD/microSDHC/microSDXC card, up to 512 GB

• Network: 4G LTE (LTE-FDD: B1/3/5/8 for IN, uplink: 5.1 Mbps, downlink: 10.3 Mbps), 1 RJ45 10 M/100 M Ethernet port

• Security: Password protection, HTTPS encryption, watermark, HTTP/HTTPS authentication

• Power: 12 VDC ± 25%, max. 9 W (includes switching adapter)

• Protection: IP66 (water and dust resistant)

• Dimensions: 131.9 mm × 164 mm × 312.6 mm or 332.6 mm (with mount variations)

• Weight: Approx. 600 g (1.32 lb.)

• Operating Conditions: -30°C to 40°C, humidity ≤ 95% (non-condensing)

https://assets.hikvision.com/prd/public/all/doc/m000127941/DS-2DE2C400MWG-4G_Datasheet_20240808.pdf
