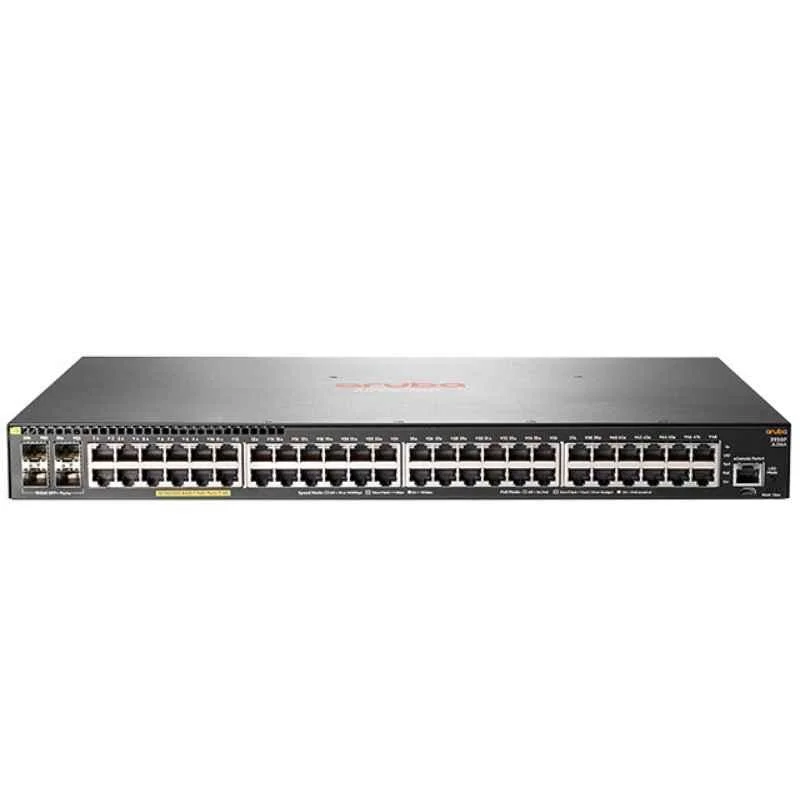

HPE Aruba 2930F Series 48G & 4SFP+ Stackable Layer Switch, JL254A
HPE Aruba 2930F Series 48G & 4SFP+ Stackable Layer Switch, JL254A - Image 2
HPE Aruba 2930F Series 48G & 4SFP+ Stackable Layer Switch, JL254A - Image 3
HPE Aruba 2930F Series 48G & 4SFP+ Stackable Layer Switch, JL254A - Image 4
,

HPE Aruba 2930F Series 48G & 4SFP+ Stackable Layer Switch, JL254A

Availability:

Available on backorder
Compare

The HPE Aruba 2930F 48G 4SFP+ Switch (JL254A) is a Layer 3 managed switch with 48 Gigabit ports and 4 SFP+ uplinks. Ideal for SMBs and enterprises, it offers stacking, SDN support, and cloud-based management with no licensing fees.

₹144,000.00 ₹150,000.00

Available on backorder

Compare

The HPE Aruba 2930F 48G 4SFP+ Switch (JL254A) is a stackable, managed Layer 3 access switch designed for enterprise edge, SMB, and branch office networks. Part of the Aruba 2930F series, it features 48 Gigabit Ethernet ports and 4 SFP+ ports supporting 1G/10G uplinks, delivering high-speed connectivity for modern digital workplaces. Powered by the Aruba ProVision ASIC, it ensures low latency, increased packet buffering, and adaptive power consumption, with support for Software-Defined Networking (SDN) via OpenFlow. The switch offers advanced Layer 3 features, including static, RIP, and Access OSPF routing, robust QoS, ACLs, sFlow, and IPv6, with no software licensing fees. Virtual Switching Framework (VSF) enables stacking of up to eight switches for simplified management and scalability. Security features include 802.1X, MAC, and Web authentication, alongside Aruba ClearPass Policy Manager support for unified wired/wireless policies. Managed via Aruba AirWave, cloud-based Aruba Central, or CLI, it supports Zero Touch Provisioning for easy deployment. The compact 1U design is rack-mountable and includes a limited lifetime warranty

SKU: JL254A Categories: , Tags: , , , , , , , , , , , , , , Brand:

Technical Specification Summary

  • Ports: 48 x 10/100/1000BASE-T (Gigabit Ethernet, RJ-45), 4 x 1G/10G SFP+ uplink ports, 1 x dual-personality (RJ-45 or USB micro-B) serial console port

  • Switching Capacity: 176 Gbps

  • Throughput: 112 Mpps

  • Latency: 3.8 µs (1 Gbps, 64-byte packets), 1.6 µs (10 Gbps, 64-byte packets)

  • Processor: Dual-Core ARM Cortex-A9 @ 1.016 GHz

  • Memory: 1 GB DDR3 SDRAM, 4 GB flash, 1 MB packet buffer

  • MAC Address Table: 32,768 entries

  • Capacity: VLANs: 4,096, IPv4 routing entries: 10,000, IPv6 routing entries: 5,000, Jumbo frame size: 9,220 bytes

  • Routing Protocols: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4/IPv6 routing, RIPng, MLD, CIDR

  • Power Consumption: Max: 46.6W, Idle: 32.7W

  • Input Voltage: 100 – 127 / 200 – 240 VAC, 50/60 Hz

  • Current: 0.9 A (100-127V) / 0.6 A (200-240V)

  • Maximum Heat Dissipation: 157.2 BTU/hr

  • Power Supply: Fixed, internal

  • Fans: Fanless

  • Management: Aruba Central (cloud), Aruba AirWave, Aruba ClearPass Policy Manager, CLI, Web GUI, SNMP (v1, v2c, v3), RMON, sFlow, XRMON, Telnet, SSH, SSH-2

  • Security: 802.1X, MAC authentication, Web authentication, ACLs, RADIUS/TACACS+, SSL, port security, MAC address lockout, source-port filtering

  • Layer 2 Features: VLANs, LACP, STP, RSTP, MSTP, IGMP snooping, MLD snooping, LLDP, LLDP-MED

  • Layer 3 Features: Static routing, RIP, Access OSPF, Dynamic Segmentation, IPv6

  • Stacking: Virtual Switching Framework (VSF), up to 8 switches

  • Mounting: Rack-mountable (1U), includes rack ears

  • Dimensions: 44.25 cm (W) x 24.63 cm (D) x 4.39 cm (H)

  • Weight: 3.1 kg

  • Operating Temperature: 0-45°C

  • Warranty: Limited Lifetime
