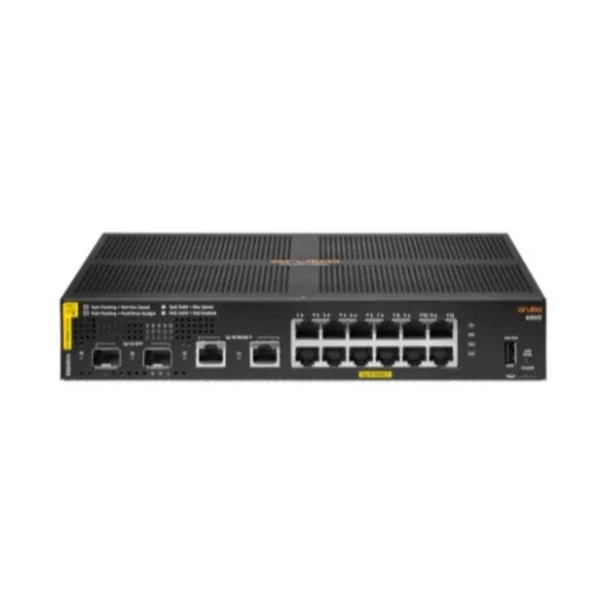

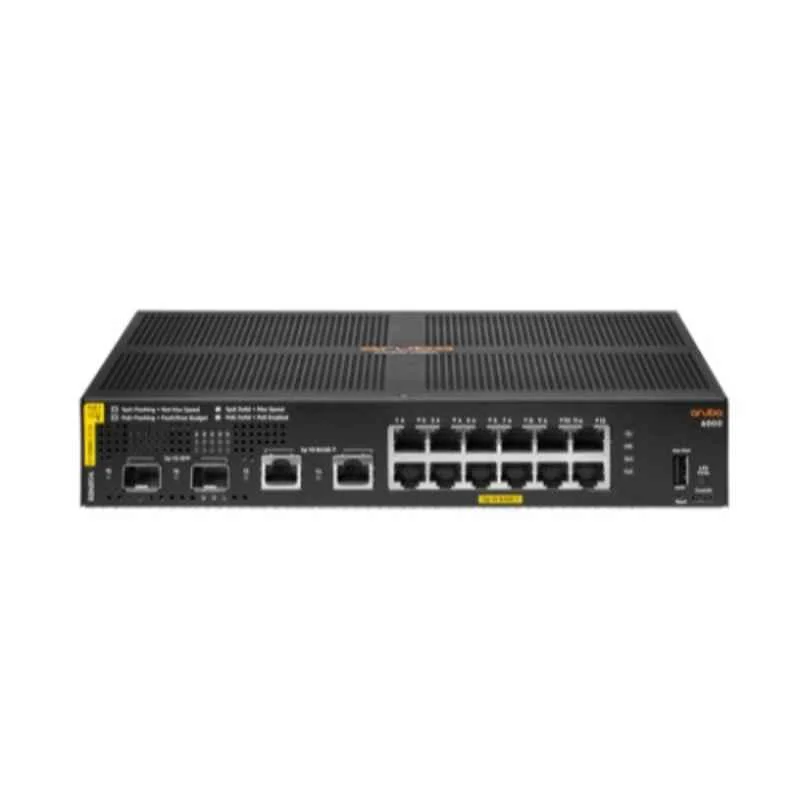

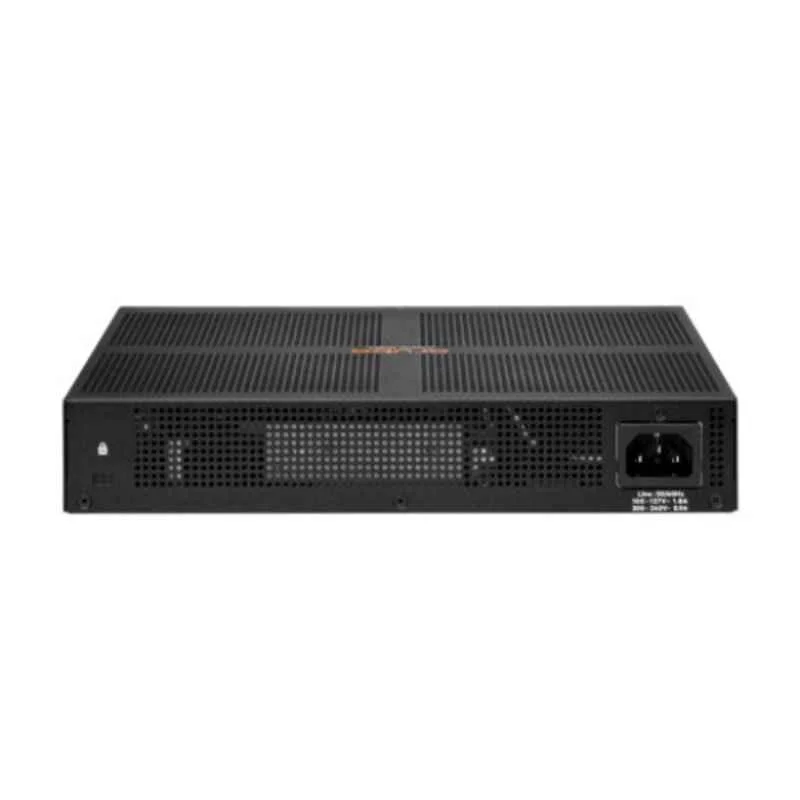

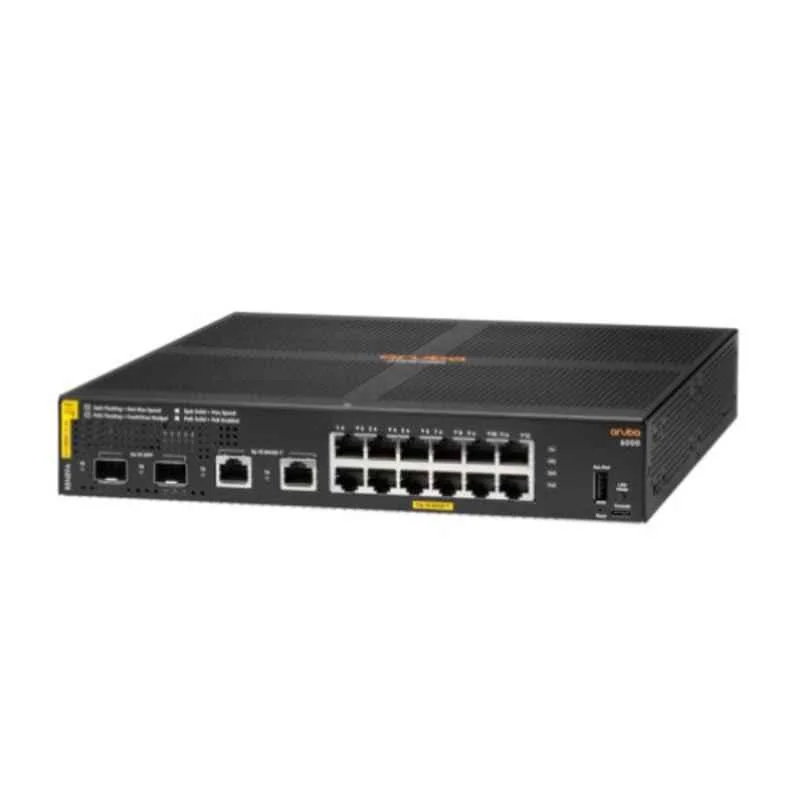

HPE Aruba 6000 Series Networking Switch with 12G CL4 & 2SFP Ports, R8N89A
HPE Aruba 6000 Series Networking Switch with 12G CL4 & 2SFP Ports, R8N89A - Image 2
HPE Aruba 6000 Series Networking Switch with 12G CL4 & 2SFP Ports, R8N89A - Image 3
HPE Aruba 6000 Series Networking Switch with 12G CL4 & 2SFP Ports, R8N89A - Image 4
,

HPE Aruba 6000 Series Networking Switch with 12G CL4 & 2SFP Ports, R8N89A

Availability:

Available on backorder
Compare

The HPE Aruba CX 6000 12G Class4 PoE 2G/2SFP 139W Switch (R8N89A) is a fanless, managed Layer 2 switch with 12 Gigabit PoE+ ports (139W), 2 Gigabit ports, and 2 SFP uplinks. Perfect for SMBs, it offers secure, silent connectivity and cloud-ready management.

₹62,000.00 ₹69,000.00

Available on backorder

Compare

The HPE Aruba CX 6000 12G Class4 PoE 2G/2SFP 139W Switch (R8N89A) is a compact, fanless, fully-managed Layer 2 access switch designed for branch offices, midsize businesses, and small enterprises. Part of the Aruba CX 6000 series, it features 12 Gigabit Ethernet ports with Class 4 PoE+ (139W budget), 2 Gigabit Ethernet ports, and 2 SFP 1GbE uplink ports, providing cost-effective, secure connectivity for IoT devices, wireless access points, and IP phones. Built on Aruba’s ASIC architecture and AOS-CX operating system, it delivers low latency, enhanced packet buffering, and adaptive power consumption. The switch supports static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6, with no software licensing fees. Management options include Aruba NetEdit, Web GUI, CLI, and future Aruba Central support, with REST APIs for programmability. Security features include Local MAC Authentication (LMA), colorless ports, and 802.1X authentication. Its silent, fanless design is ideal for quiet workspaces, and the 1U rack-mountable form factor simplifies deployment. The R8N89A includes a Limited Lifetime Warranty.

SKU: R8N89A Categories: , Tags: , , , , , , , , , , , , , , Brand:

Technical Specification

  • Ports: 12 x 10/100/1000BASE-T (Gigabit Ethernet, PoE+, IEEE 802.3af/at, up to 30W per port), 2 x 10/100/1000BASE-T (Gigabit Ethernet), 2 x 1G SFP uplink ports, 1 x USB-C console, 1 x USB Type-A host

  • Switching Capacity: 32 Gbps

  • Throughput: 23.8 Mpps

  • Latency: 2.3 µs (1 Gbps, 64-byte packets)

  • Processor: Dual-Core ARM Cortex-A9 @ 1.016 GHz

  • Memory: 8 GB DDR3 SDRAM, 16 GB eMMC flash, 12.38 MB packet buffer

  • MAC Address Table: 8,192 entries

  • Capacity: Switched Virtual Interfaces: 16, ARP entries: 1,024, IPv4/IPv6 routes: 512, IGMP/MLD groups: 512, ACL entries (ingress): 256 (IPv4), 128 (IPv6), 256 (MAC)

  • PoE Budget: 139W Class 4 PoE (IEEE 802.3af/at, up to 30W per port)

  • Power Consumption: Max: 170W (with PoE), Max (without PoE): 21.9W, Idle: 14.7W

  • Input Voltage: 100 – 127 / 200 – 240 VAC, 50/60 Hz

  • Current: 2.2 A (100-127V) / 1.2 A (200-240V)

  • Power Supply: Fixed, non-pluggable

  • Fans: Fanless, silent operation

  • Management: Aruba NetEdit, Web GUI, CLI, SNMP, REST APIs, Aruba Central (future support)

  • Security: Local MAC Authentication (LMA), colorless ports, ACLs, 802.1X, sFlow, RADIUS, DHCP snooping, Integrated Trusted Platform Module (TPM)

  • Layer 2 Features: VLANs (4,096), LACP, MSTP, RSTP, IGMPv2/v3, MLD snooping

  • Layer 3 Features: Static routing, IPv6 support

  • Mounting: Rack-mountable (1U), desktop, wall (rack-mount kit included)

  • Dimensions: 25.5 cm (W) x 25.4 cm (D) x 4.4 cm (H)

  • Weight: 2.8 kg

  • Operating Temperature: 0-45°C (up to 1.5 km altitude, derate -1°C per 305m above 1.5 km)

  • Warranty: Limited Lifetime
