HPE Aruba 6000 Series Networking Switch with 48G & 4SFP Ports, R8N86A
Available on backorder

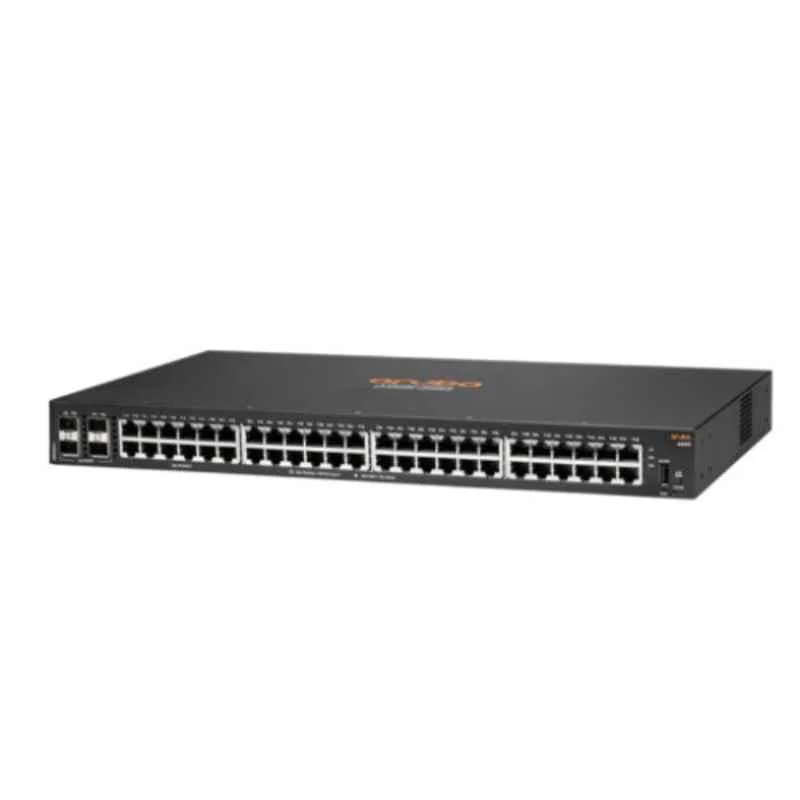

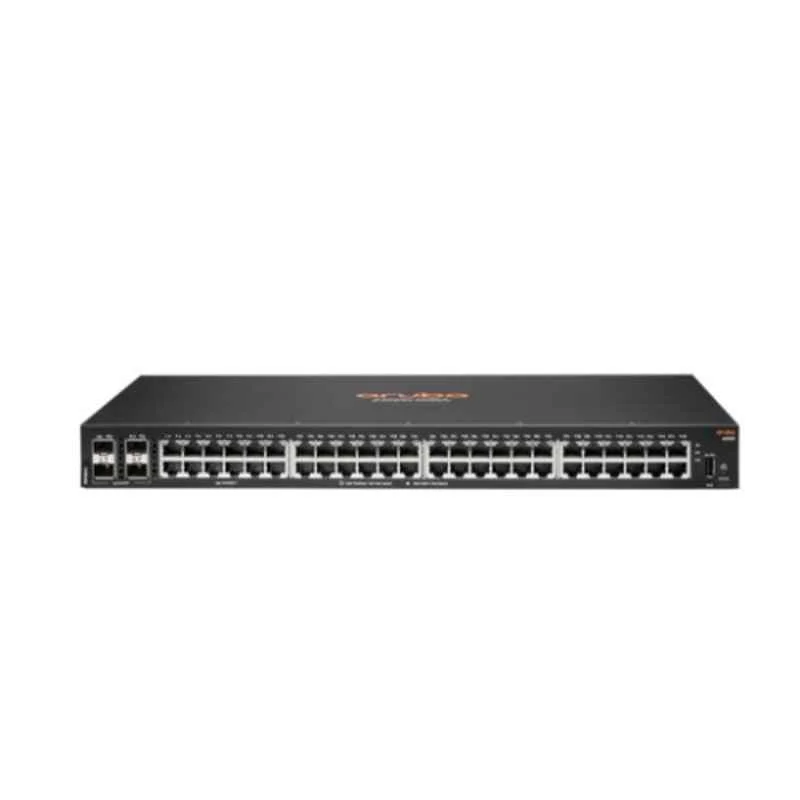

The HPE Aruba CX 6000 48G 4SFP Switch (R8N86A) is a managed Layer 2 switch with 48 Gigabit ports and 4 SFP uplinks. Tailored for SMBs, it provides secure, low-latency connectivity with management via Web GUI, CLI, or Aruba NetEdit, and no licensing fees.
₹98,900.00 ₹120,000.00
Available on backorder
CompareThe HPE Aruba CX 6000 48G 4SFP Switch (R8N86A) is a fully-managed, enterprise-class Layer 2 access switch designed for branch offices, midsize businesses, and small enterprises. Part of the Aruba CX 6000 series, it delivers reliable, secure, and cost-effective wired connectivity for IoT, mobile, and cloud applications. Equipped with 48 Gigabit Ethernet ports and 4 SFP 1GbE uplink ports, it supports high-speed fiber connections for network uplinks or backbones. Powered by the Aruba ASIC architecture and AOS-CX operating system, it offers low latency, enhanced packet buffering, and adaptive power consumption. The switch supports static routing, Access Control Lists (ACLs), robust Quality of Service (QoS), traffic prioritization, sFlow, and IPv6, with flexible management options including Aruba NetEdit, Web GUI, CLI, or future Aruba Central support. Security features like Local MAC Authentication (LMA), colorless ports, and 802.1X authentication ensure network protection. With no software licensing fees, a compact 1U rack-mountable design, and a limited lifetime warranty, the R8N86A is ideal for simplified, high-performance deployments.
Technical Specification
-
Ports: 48 x 10/100/1000BASE-T (Gigabit Ethernet), 4 x 1G SFP uplink ports, 1 x USB-C console, 1 x USB Type-A host
-
Switching Capacity: 104 Gbps
-
Forwarding Rate: 77.3 Mpps
-
Latency: 1.9 µs (1 Gbps, 64-byte packets)
-
Processor: Dual-Core ARM Cortex-A9 @ 1.016 GHz
-
Memory: 4 GB DDR3 SDRAM, 16 GB eMMC flash, 12.38 MB packet buffer
-
MAC Address Table: 8,192 entries
-
Capacity: VLANs: 4,096, ARP entries: 1,024, IPv4/IPv6 routes: 512, IGMP/MLD groups: 512, ACL entries (ingress): 256 (IPv4), 128 (IPv6), 256 (MAC)
-
Power Consumption: Max: 44.2W; Idle: 20.6W
-
Input Voltage: 100 – 127 / 200 – 240 VAC, 50/60 Hz
-
Current: 0.8 A (100-127V) / 0.5 A (200-240V)
-
Power Supply: Fixed, non-pluggable
-
Fans: Fixed fans
-
Management: Aruba NetEdit, Web GUI, CLI, SNMP, REST APIs, Aruba Central (future support)
-
Security: Local MAC Authentication (LMA), colorless ports, ACLs, 802.1X, sFlow, RADIUS, DHCP snooping
-
Layer 2 Features: VLANs (4,096), LACP, MSTP, RSTP, IGMPv2/v3, MLD snooping
-
Layer 3 Features: Static routing, IPv6 support
-
Mounting: Rackmount (1U), horizontal surface (rack-mounting kit included)
-
Dimensions: 44.2 cm (W) x 24.74 cm (D) x 4.39 cm (H)
-
Weight: 3.42 kg
-
Operating Temperature: 0-45°C
-
Warranty: Limited Lifetime
