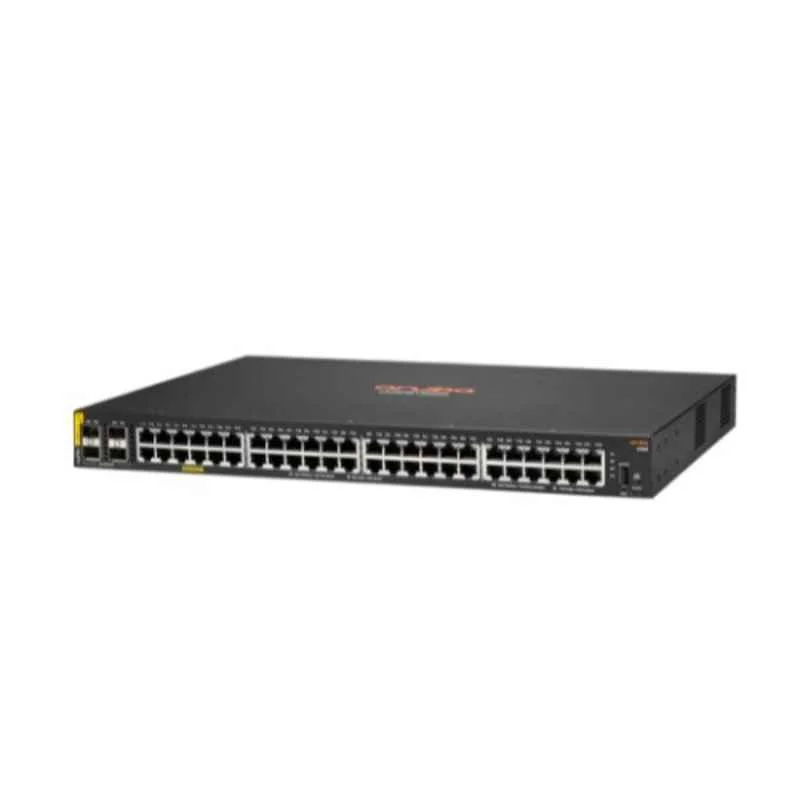

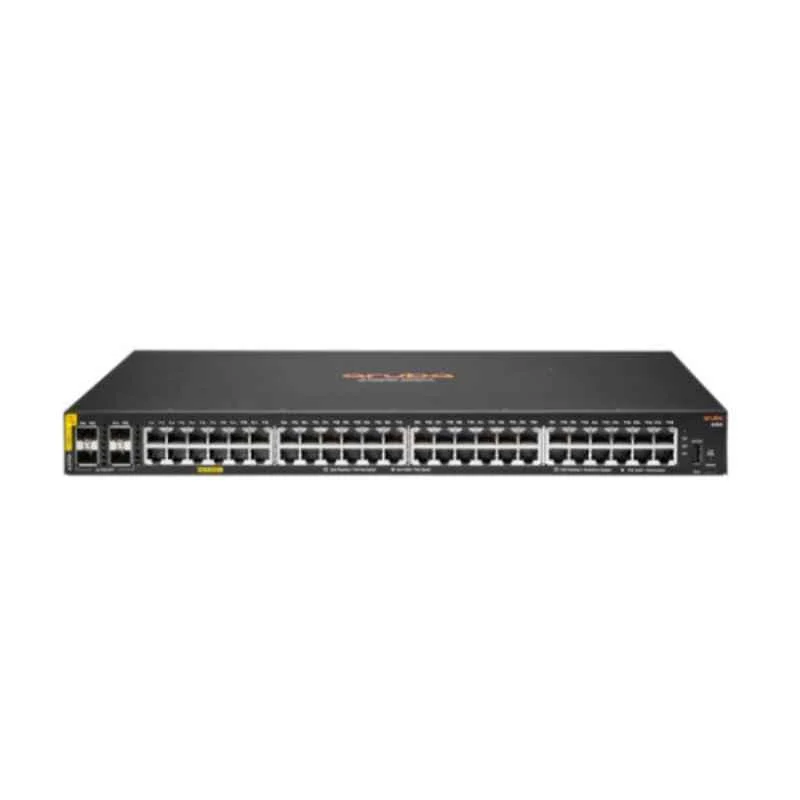

HPE Aruba 6100 Series Networking Switch with 48G CL4 & 4SFP+ Ports, JL675A
HPE Aruba 6100 Series Networking Switch with 48G CL4 & 4SFP+ Ports, JL675A - Image 2
HPE Aruba 6100 Series Networking Switch with 48G CL4 & 4SFP+ Ports, JL675A - Image 3
,

HPE Aruba 6100 Series Networking Switch with 48G CL4 & 4SFP+ Ports, JL675A

Availability:

Available on backorder
Compare

The HPE Aruba CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A) is a managed Layer 2 switch with 48 Gigabit PoE+ ports (370W) and 4 SFP+ 1G/10G uplinks. Designed for SMBs, it offers secure, low-latency connectivity and easy management via Web GUI, CLI, or Aruba NetEdit.

₹173,000.00 ₹190,000.00

Available on backorder

Compare

The HPE Aruba CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A) is a modern, fully-managed Layer 2 access switch tailored for branch offices, mid-market enterprises, and small to medium-sized businesses (SMBs). Part of the Aruba CX 6100 series, it provides reliable, secure, and simple wired connectivity for IoT, mobile, and cloud applications. With 48 Gigabit Ethernet ports supporting Class 4 PoE+ (370W total budget) and 4 SFP+ ports for 1G/10G uplinks, it powers devices like wireless access points, IP phones, and security cameras while enabling high-speed fiber connectivity. Powered by the Aruba ASIC architecture and AOS-CX operating system, it delivers low latency, enhanced packet buffering, and adaptive power consumption. The switch supports static routing, Access Control Lists (ACLs), robust Quality of Service (QoS), and IPv6, with management options including Aruba Central (future support), Web GUI, CLI, and Aruba NetEdit. Security features like Local MAC Authentication, colorless ports, and sFlow protect the network. With no software licensing fees and a limited lifetime warranty, the JL675A is an efficient, cost-effective solution for modern networks.

SKU: JL675A Categories: , Tags: , , , , , , , , , , , , , , Brand:

Technical Specification

  • Ports: 48 x 10/100/1000BASE-T (PoE+, IEEE 802.3af/at), 4 x 1G/10G SFP+ uplink ports

  • PoE Budget: 370W Class 4 PoE (up to 30W per port)

  • Switching Capacity: 176 Gbps

  • Throughput: 130.9 Mpps

  • Latency: 2.2 µs (1 Gbps, 64-byte packets)

  • Processor: Dual-core ARM Cortex-A9 @ 1.016 GHz

  • Memory: 4 GB DDR3 SDRAM, 16 GB eMMC flash, 12.38 MB packet buffer

  • MAC Address Table: 8,192 entries

  • Capacity: Switched Virtual Interfaces: 16, ARP entries: 1,024, IPv4/IPv6 host routes: 512, IGMP/MLD groups: 512, ACL entries (ingress): 256 (IPv4), 128 (IPv6), 256 (MAC)

  • Power Consumption: Max: 500W (with PoE); Idle: 45W (without PoE)

  • Input Voltage: 100 – 240 VAC, 50/60 Hz

  • Management: Aruba NetEdit, Web GUI, CLI, SNMP, REST APIs, Aruba Central (future support)

  • Security: Local MAC Authentication, colorless ports, ACLs, sFlow, RADIUS, DHCP snooping

  • Layer 2 Features: VLANs (4,096), LACP, MSTP, RSTP, IGMPv2/v3, MLD snooping

  • Layer 3 Features: Static routing, IPv6 support

  • Mounting: Rackmount (1U), rack ears included

  • Dimensions: 44.25 cm (W) x 30.42 cm (D) x 4.37 cm (H)

  • Weight: 5.02 kg

  • Operating Temperature: 0-45°C

  • Warranty: Limited Lifetime with advance replacement

  • Standards: IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.1D, 802.1Q, 802.1p, 802.1w, 802.3ad, 802.3x
