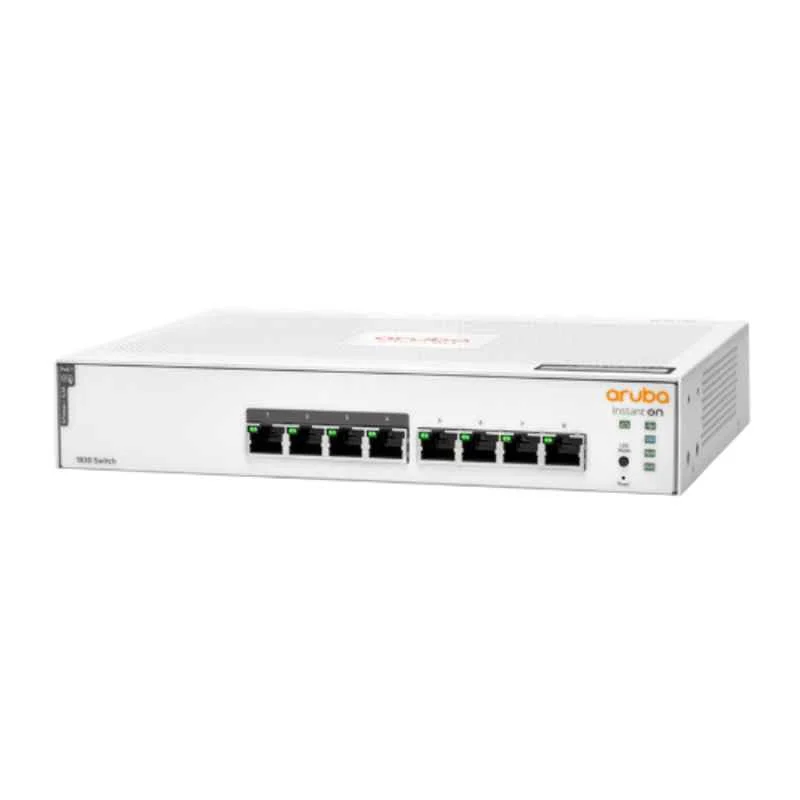

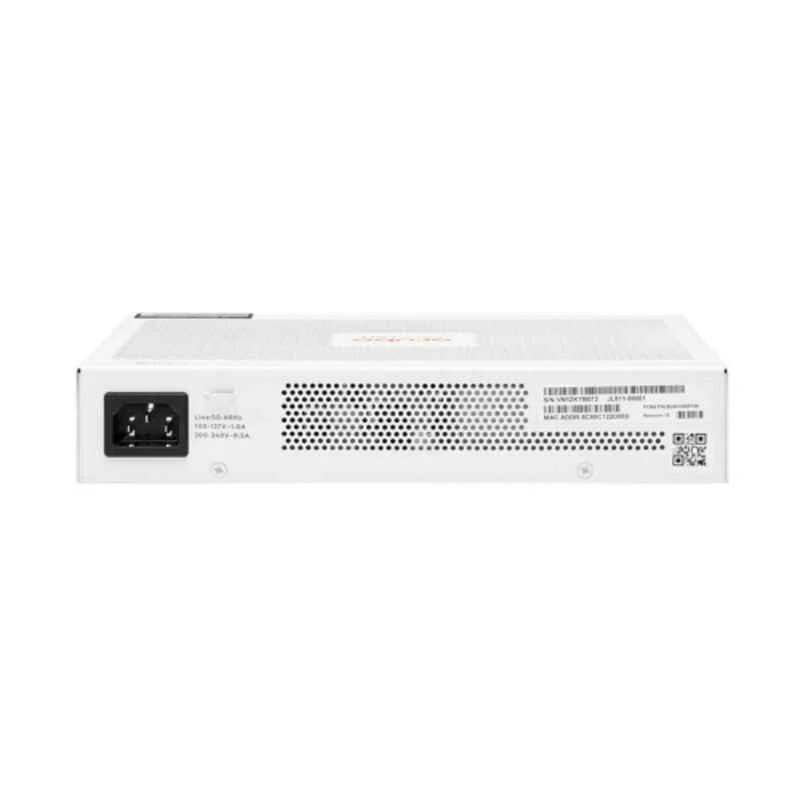

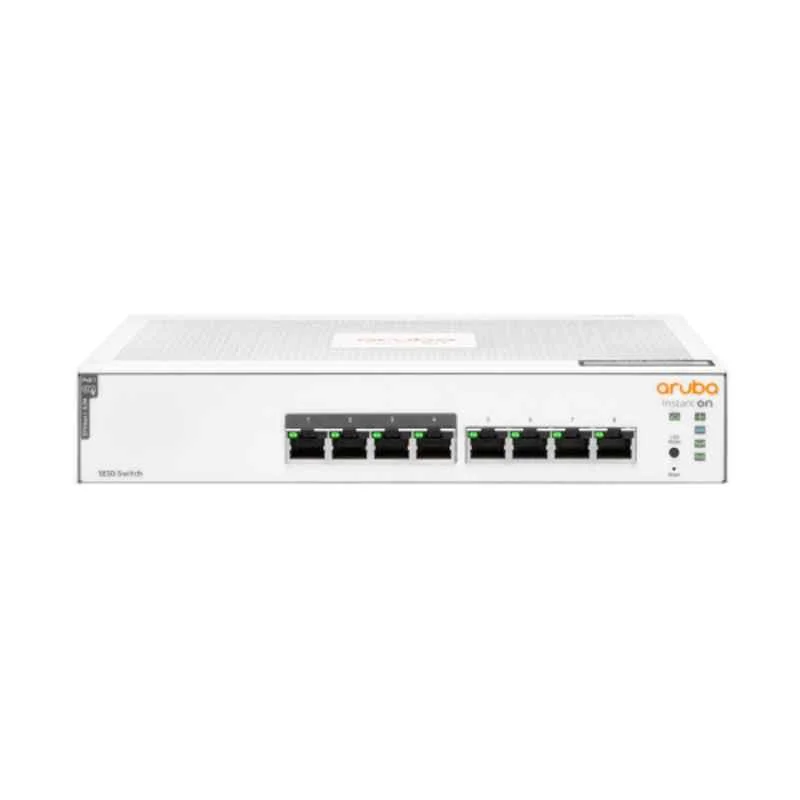

HPE Aruba Instant On 1830 65W 8 Port 8G 4P Class 4 PoE Network Switch, JL811A

Availability:

Available on backorder


The HPE Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) is a smart-managed Layer 2 switch with 8 Gigabit ports (4 PoE+, 65W). Fanless and energy-efficient, it offers cloud-based management and robust security for small businesses.

18,000.00 21,000.00

Available on backorder

Compare

The HPE Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) is an affordable, smart-managed Layer 2 Ethernet switch designed for small businesses seeking cost-effective, reliable networking solutions. Featuring 8 Gigabit Ethernet ports, with 4 supporting Class 4 PoE+ (65W total budget), it powers devices like IP phones, wireless access points, and surveillance cameras, eliminating the need for additional power cabling. Ideal for budget-conscious environments such as small offices or retail, it offers plug-and-play deployment with flexible management via the Aruba Instant On mobile app, cloud-based web portal, or local web GUI, requiring no licensing fees. Security features include IEEE 802.1X, VLANs, Global Storm Control, Trusted Platform Module (TPM), and automatic Denial-of-Service (DoS) protection. Its fanless design ensures silent operation, and energy-efficient features like IEEE 802.3az reduce power consumption. With a compact form factor and versatile mounting options (rack, wall, desktop), the JL811A is backed by a limited lifetime warranty, delivering enterprise-grade performance for evolving network demands.

Technical Specification

  • Ports: 8 x 10/100/1000BASE-T (4 x PoE+, IEEE 802.3af/at, ports 1-4)

  • PoE Budget: 65W Class 4 PoE (up to 30W per port)

  • Switching Capacity: 16 Gbps

  • Throughput: 11.9 Mpps

  • Latency: 5.2 µs (100 Mbps), 2.8 µs (1 Gbps)

  • Processor: 800 MHz ARM Cortex-A9

  • Memory: 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer

  • MAC Address Table: 8,000 entries

  • Power Consumption: Max: 86.07W (100-127V, with PoE); Idle: 8.3W (100-127V)

  • Input Voltage: 100 – 240 VAC, 50/60 Hz

  • Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP (v1, v2c, v3), HTTP/HTTPS

  • Security: IEEE 802.1X, VLANs, Global Storm Control, TPM, DoS protection, RADIUS, DHCP snooping

  • Layer 2 Features: VLANs (4,096), LACP, STP, RSTP, MSTP, Jumbo frames (up to 9,216 bytes)

  • Energy Efficiency: IEEE 802.3az (EEE), auto-port shutdown

  • Mounting: Rackmount (1U), wall, desktop, under-table (brackets included)

  • Dimensions: 24.43 cm (W) x 19.51 cm (D) x 4.34 cm (H)

  • Weight: 1.54 kg

  • Operating Temperature: 0-40°C

  • Cooling: Fanless, silent operation

  • Warranty: Limited Lifetime
