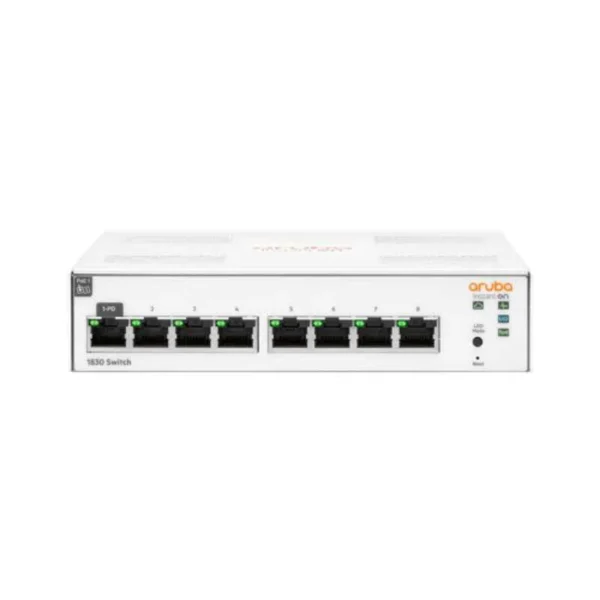

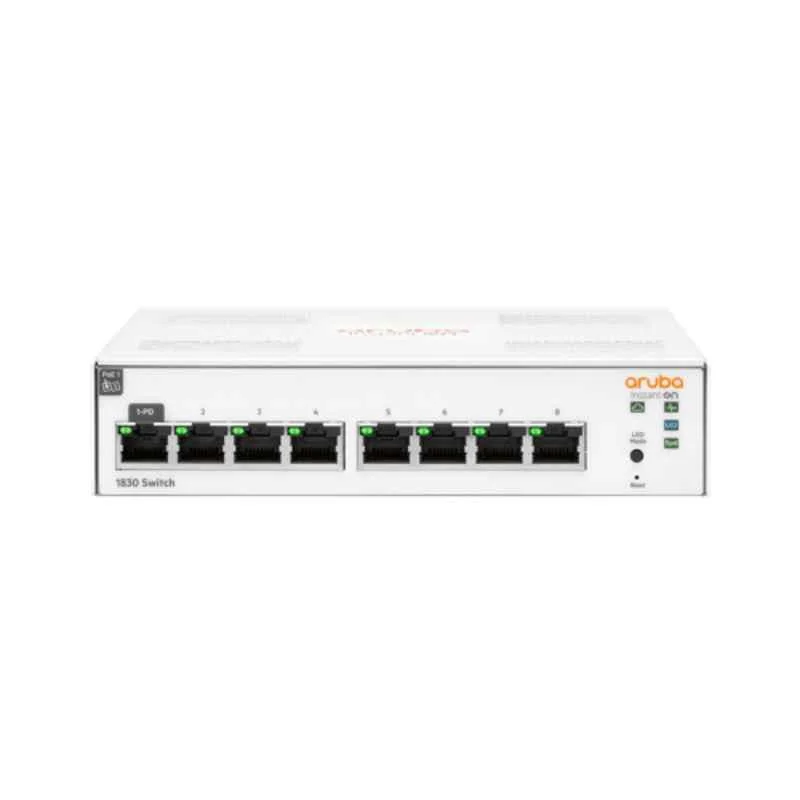

HPE Aruba Instant On 1830 13W 8 Port 8G Network Switch, JL810A

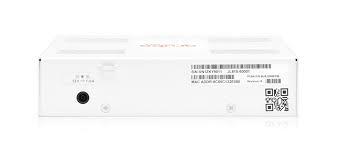

HPE Aruba Instant On 1830 13W 8 Port 8G Network Switch, JL810A - Image 2
,

HPE Aruba Instant On 1830 13W 8 Port 8G Network Switch, JL810A

Availability:

Available on backorder
Compare

The HPE Aruba Instant On 1830 8G Switch (JL810A) is a smart-managed Layer 2 switch with 8 Gigabit ports, supporting PoE-powered deployment (13W). It offers cloud-based management, robust security, and silent operation for SMBs

₹13,500.00 ₹15,000.00

Available on backorder

Compare

The HPE Aruba Instant On 1830 8G Switch (JL810A) is an affordable, smart-managed Layer 2 Ethernet switch designed for small businesses seeking cost-effective, reliable networking solutions. Featuring 8 Gigabit Ethernet ports, it supports high-speed connectivity for devices like computers, printers, and IoT equipment. Unique to this model, it can be powered via an upstream 802.3af PoE switch (Class 3, up to 13W) or an external power adapter, offering flexibility in environments without direct power access. Built on Aruba’s AOS-CX architecture, it provides robust QoS, VLANs, and energy-efficient Ethernet (IEEE 802.3az) for optimized performance. Management is streamlined through the Aruba Instant On mobile app, cloud-based web portal, or local web GUI, with no licensing fees. Security features include Global Storm Control, 802.1X authentication, and a Trusted Platform Module (TPM). The fanless, compact design supports desktop, wall, or under-table mounting, ideal for quiet environments. It includes a Limited Lifetime Warranty with 24/7 support.

SKU: JL810A Categories: , Tags: , , , , , , , , , , , , , , Brand:

Technical Specification Summary

  • Ports: 8 x 10/100/1000BASE-T (Gigabit Ethernet), 1 x USB-C console

  • Switching Capacity: 16 Gbps

  • Forwarding Rate: 11.90 Mpps

  • Latency: 5.2 µs (100 Mbps), 2.8 µs (1 Gbps, 64-byte packets)

  • Processor: ARM Cortex-A9 @ 800 MHz

  • Memory: 512 MB DDR3 SDRAM, 256 MB flash, 1.5 MB packet buffer

  • MAC Address Table: 8,000 entries

  • Capacity: VLANs: 256, ACL entries: 480

  • Power: External adapter (100-240 VAC, 50/60 Hz) or upstream PoE (IEEE 802.3af Class 3, Port 1, max 13W)

  • Power Consumption: Max: 8.09W (100-127V), 8.05W (200-220V); Idle: 5.8W (100-127V), 5.9W (200-220V)

  • Power Supply: External, included

  • Fans: Fanless, silent operation

  • Management: Aruba Instant On mobile app, cloud portal, local web GUI, SNMP

  • Security: 802.1X, Global Storm Control, VLANs, TPM, DHCP snooping, DoS protection

  • Layer 2 Features: VLANs, LACP (up to 16 trunks, 8 ports each), STP, RSTP, MSTP, IGMP snooping, LLDP, LLDP-MED

  • Mounting: Desktop, wall, under-table (mounting holes included, no rack mount)

  • Dimensions: 15.7 cm (W) x 17.3 cm (D) x 3.91 cm (H)

  • Weight: 0.77 kg

  • Operating Temperature: 0-40°C

  • Warranty: Limited Lifetime
