HPE Aruba Instant On 1930 Series 195W Network Switch with 24G Class4 PoE & 4SFP/SFP+, JL683A
Available on backorder

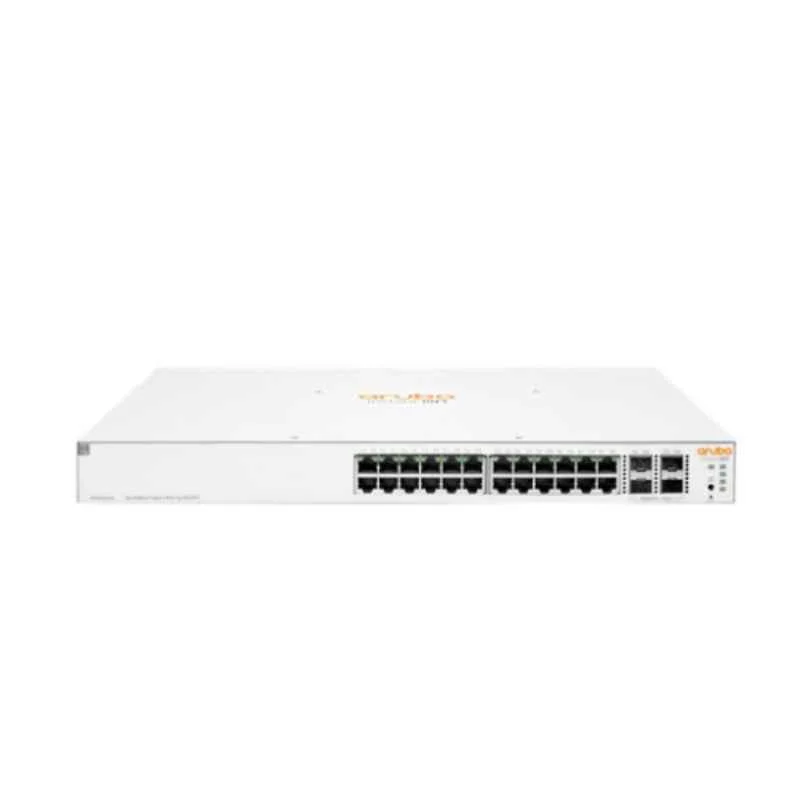

The HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683A) is a smart-managed Layer 2+ switch with 24 Gigabit PoE+ ports (195W) and 4 SFP/SFP+ uplinks. Perfect for SMBs, it offers cloud-based management, robust security, and easy deployment.
₹32,800.00 ₹35,000.00
Available on backorder
CompareThe HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683A) is a smart-managed, fixed-configuration Layer 2+ Gigabit Ethernet switch tailored for small businesses needing reliable, secure, and cost-effective networking. It features 24 Gigabit Ethernet ports with Class 4 PoE+ (195W budget) to power devices like IP phones, wireless access points, and surveillance cameras, and 4 SFP/SFP+ ports for 1G/10G uplinks to support high-speed fiber connectivity. Designed for bandwidth-intensive applications such as voice, video, and IoT, it integrates seamlessly with Aruba Instant On access points. The switch offers cloud-based management through the Instant On mobile app or web portal with no licensing fees, alongside a local web GUI for advanced configuration. Security features include IEEE 802.1X, VLANs, Access Control Lists (ACLs), and automatic Denial-of-Service (DoS) protection. Energy-efficient with IEEE 802.3az, it supports versatile mounting (rack, wall, desktop) and includes a limited lifetime warranty, making it an ideal solution for SMBs.
Technical Specification
-
Ports: 24 x 10/100/1000BASE-T (PoE+, IEEE 802.3af/at), 4 x 1G/10G SFP/SFP+ uplink ports
-
PoE Budget: 195W Class 4 PoE (up to 30W per port)
-
Switching Capacity: 128 Gbps
-
Throughput: 95.23 Mpps
-
Latency: 4.5 µs (1 Gbps, 64-byte packets)
-
Processor: 800 MHz ARM Cortex-A9
-
Memory: 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer
-
MAC Address Table: 16,000 entries
-
Capacity: VLANs: 4,096, IPv4/IPv6 static routes: 32 each
-
Power Consumption: Max: 260.4W (with PoE); Idle: 18.1W (without PoE)
-
Input Voltage: 100 – 240 VAC, 50/60 Hz
-
Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP (v1, v2c, v3), HTTP/HTTPS
-
Security: IEEE 802.1X, VLANs, ACLs, RADIUS, DHCP snooping, automatic DoS protection, Global Storm Control
-
Layer 2+ Features: VLANs, LACP, STP, RSTP, MSTP, Jumbo frames (9,216 bytes), IPv4/IPv6 static routing, QoS
-
Energy Efficiency: IEEE 802.3az (EEE), auto-port shutdown
-
Mounting: Rackmount (1U), wall, desktop, under-table, cabinet (rack ears included)
-
Dimensions: 44.25 cm (W) x 26.47 cm (D) x 4.39 cm (H)
-
Weight: 3.52 kg
-
Operating Temperature: 0-40°C
-
Cooling: Fan-based cooling
-
Warranty: Limited Lifetime
