The HPE Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A) is a high-performance, smart-managed Layer 2+ Gigabit Ethernet switch designed for small and medium-sized businesses (SMBs) requiring robust, secure, and easy-to-deploy networking. It features 48 Gigabit Ethernet ports, all supporting Class 4 PoE (up to 30W per port) with a 370W PoE budget, powering devices such as IP phones, wireless access points, and cameras without additional cabling. Four SFP/SFP+ uplink ports offer 1G/10G fiber connectivity for high-bandwidth applications like data backups and video streaming. The switch provides flexible management via the Aruba Instant On mobile app, cloud-based web portal, or local web GUI, with no subscriptions or licenses required. Advanced security features, including IEEE 802.1X, VLANs, Access Control Lists (ACLs), and malware protection, safeguard the network. Energy-efficient technologies like IEEE 802.3az and PoE scheduling minimize power consumption. Backed by a limited lifetime warranty, the JL686A delivers reliable, scalable connectivity for SMBs with demanding network needs.

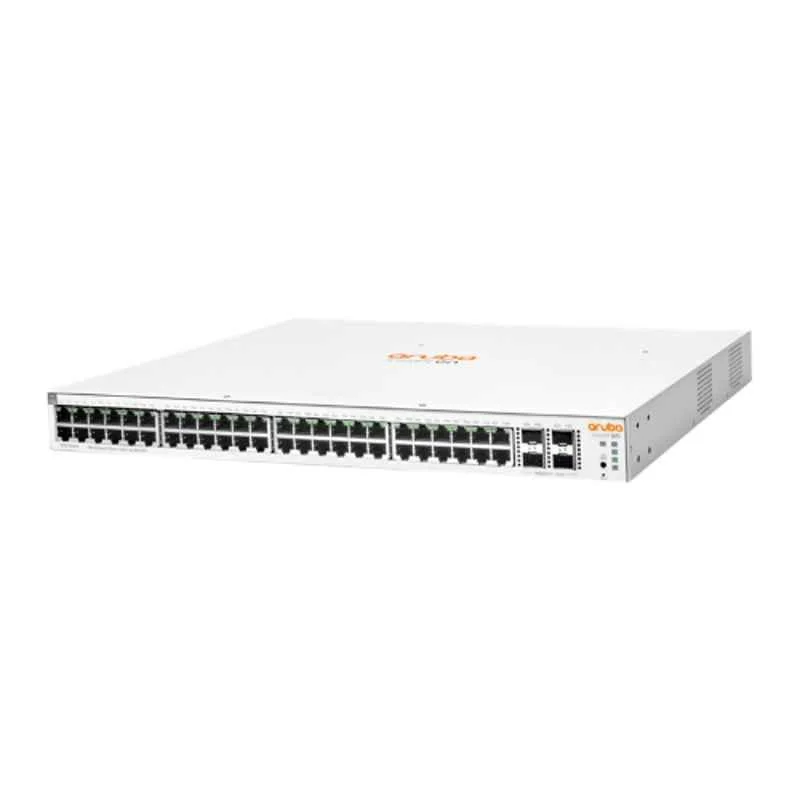

HPE Aruba Instant On 1930 370W 48 Port 48G Class 4 4SFP/SFP+ PoE Network Switch, JL686A
The HPE Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686A) is a smart-managed Layer 2+ switch with 48 Gigabit PoE+ ports (370W budget) and 4 SFP/SFP+ uplinks. Ideal for SMBs, it offers easy app-based setup, robust security, and energy-efficient operation
₹75,000.00 ₹78,000.00
Technical Specification
-
Ports: 48 x RJ-45 10/100/1000 Mbps autosensing Class 4 PoE ports (IEEE 802.3af/at), 4 x SFP/SFP+ 1G/10G uplink ports
-
PoE Budget: 370W (up to 30W per port)
-
Switching Capacity: 176 Gbps
-
Forwarding Rate: 130.95 Mpps
-
Processor: Dual Core ARM Cortex-A9 @ 800 MHz
-
Memory: 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer
-
Power Consumption: Max: 465.7W (100-240V); Idle: 36.9W
-
Input Voltage: 100 – 240 VAC, 50/60 Hz
-
Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP
-
Security: IEEE 802.1X, VLANs, ACLs, Port Security, DoS protection, malware blocking
-
Layer 2+ Features: VLANs, link aggregation (LACP), Spanning Tree Protocols, IPv4 static routing, IPv6 support
-
Energy Efficiency: IEEE 802.3az (EEE), PoE scheduling
-
Mounting: Rackmount (1U), tabletop (rack ears included)
-
Dimensions: 44.25 cm (W) x 32.43 cm (D) x 4.39 cm (H)
-
Weight: 4.52 kg
-
Operating Temperature: 0-40°C
-
Warranty: Limited Lifetime
