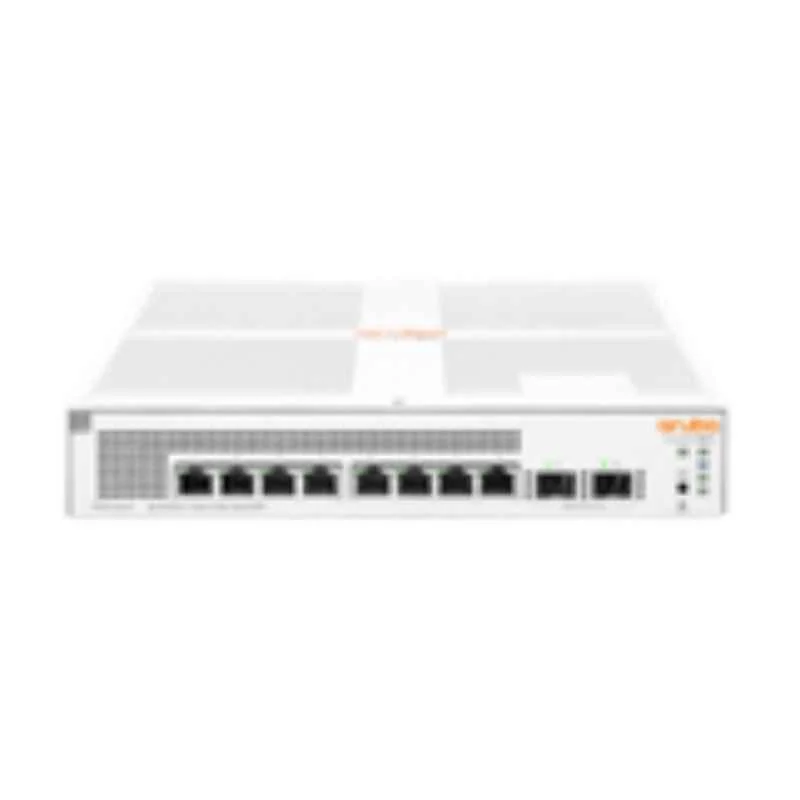

HPE Aruba Instant On 1930 124W 8 Port 8G Class 4 2SFP PoE Network Switch, JL681A

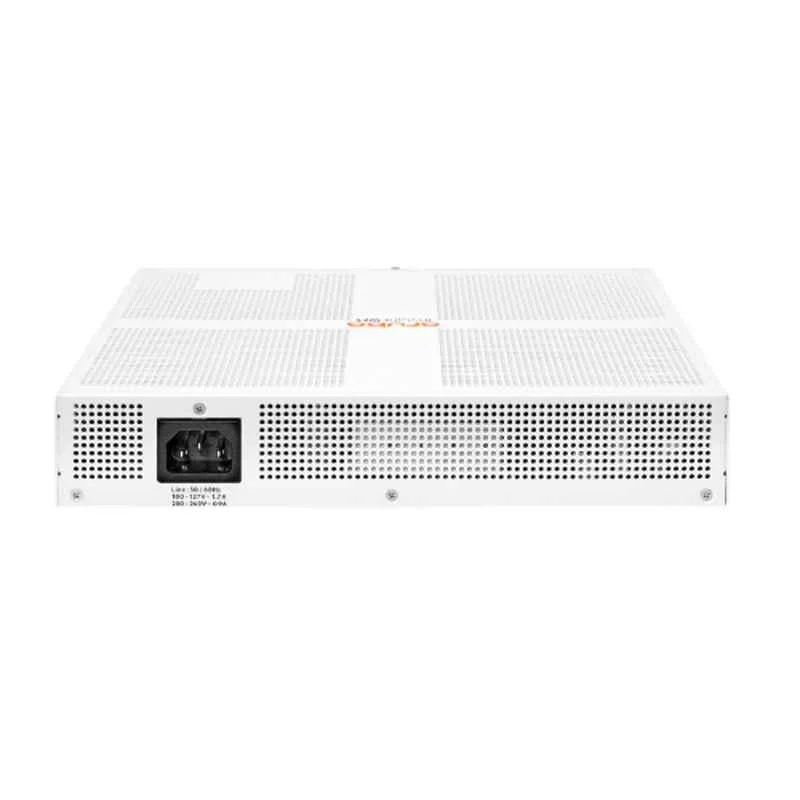

HPE Aruba Instant On 1930 124W 8 Port 8G Class 4 2SFP PoE Network Switch, JL681A - Image 2

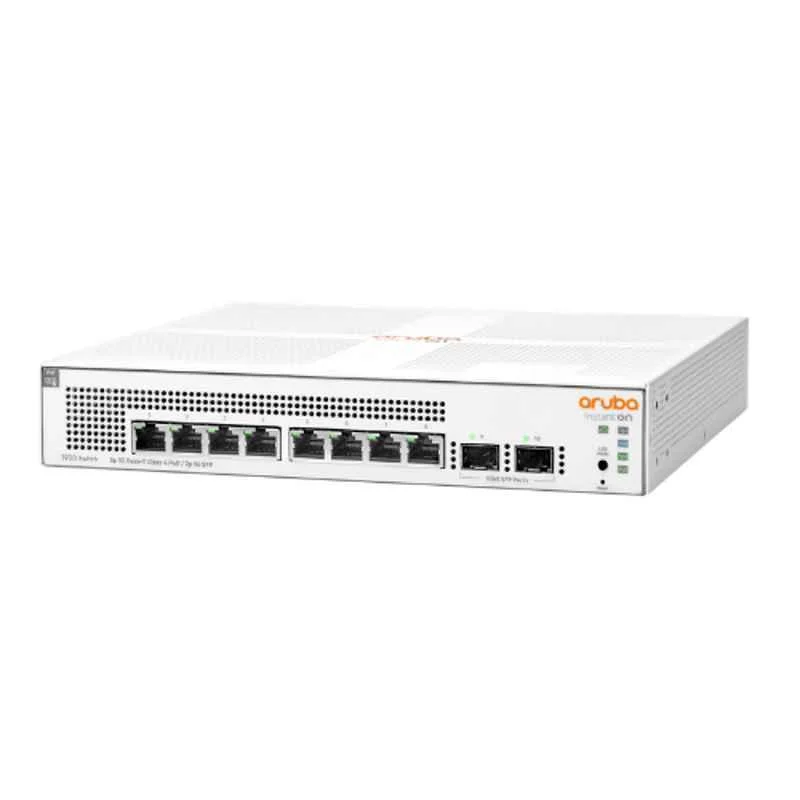

HPE Aruba Instant On 1930 124W 8 Port 8G Class 4 2SFP PoE Network Switch, JL681A - Image 3
HPE Aruba Instant On 1930 124W 8 Port 8G Class 4 2SFP PoE Network Switch, JL681A - Image 4
,

HPE Aruba Instant On 1930 124W 8 Port 8G Class 4 2SFP PoE Network Switch, JL681A

Availability:

Available on backorder
Compare

The HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (JL681A) is a smart-managed Layer 2+ switch with 8 Gigabit PoE+ ports (124W) and 2 SFP uplinks. Designed for SMBs, it offers cloud-based management, robust security, and silent, fanless operation.

₹28,500.00 ₹32,000.00

Available on backorder

Compare

The HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch (JL681A) is a smart-managed, fixed-configuration Layer 2+ Gigabit Ethernet switch designed for small and growing businesses requiring reliable, high-performance networking. Featuring 8 Gigabit Ethernet ports with Class 4 PoE+ (124W total budget) and 2 1G SFP uplink ports, it powers devices like access points, IP phones, surveillance cameras, and IoT equipment while providing fiber connectivity options. Ideal for bandwidth-intensive applications such as voice and video conferencing, it supports advanced features like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control. The switch integrates seamlessly with Aruba Instant On access points and offers cloud-based management via the Instant On mobile app or web portal, with no recurring fees, alongside a local web GUI for advanced configuration. Its fanless design ensures silent operation, making it perfect for quiet office environments, and its compact form supports desktop, wall, or rackmount deployment. With energy-efficient Ethernet (IEEE 802.3az) and a limited lifetime warranty, the JL681A delivers cost-effective, secure connectivity for small businesses.

SKU: JL681A Categories: , Tags: , , , , , , , , , , , , , , Brand:

Technical Specification

  • Ports: 8 x 10/100/1000BASE-T (PoE+, IEEE 802.3af/at), 2 x 1G SFP uplink ports

  • PoE Budget: 124W Class 4 PoE (up to 30W per port)

  • Switching Capacity: 20 Gbps

  • Throughput: 14.88 Mpps

  • Latency: 5.2 µs (100 Mbps), 3 µs (1 Gbps)

  • Processor: Not specified in sources

  • Memory: 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer

  • MAC Address Table: 8,000 entries

  • Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP (v1, v2c, v3), HTTP/HTTPS

  • Security: IEEE 802.1X, VLANs, ACLs, RADIUS, DHCP snooping, automatic DoS protection

  • Layer 2+ Features: VLANs (4,096), LACP, STP, RSTP, MSTP, IPv4/IPv6 static routing, QoS

  • Power Consumption: Max: 150.2W (with PoE); Idle: 11.7W (without PoE)

  • Input Voltage: 100 – 240 VAC, 50/60 Hz

  • Mounting: Desktop, wall, rackmount (1U, rack ears included)

  • Dimensions: 25.4 cm (W) x 15.93 cm (D) x 4.34 cm (H)

  • Weight: 1.15 kg

  • Operating Temperature: 0-40°C

  • Cooling: Fanless, silent operation

  • Warranty: Limited Lifetime

  • Standards: IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u

  • Certifications: FCC, CE, ICES-003, VCCI, CISPR 32/35, EN 55032/35, UL 60950-1, UL 62368-1, IEC 60950-1, IEC 62368-1
