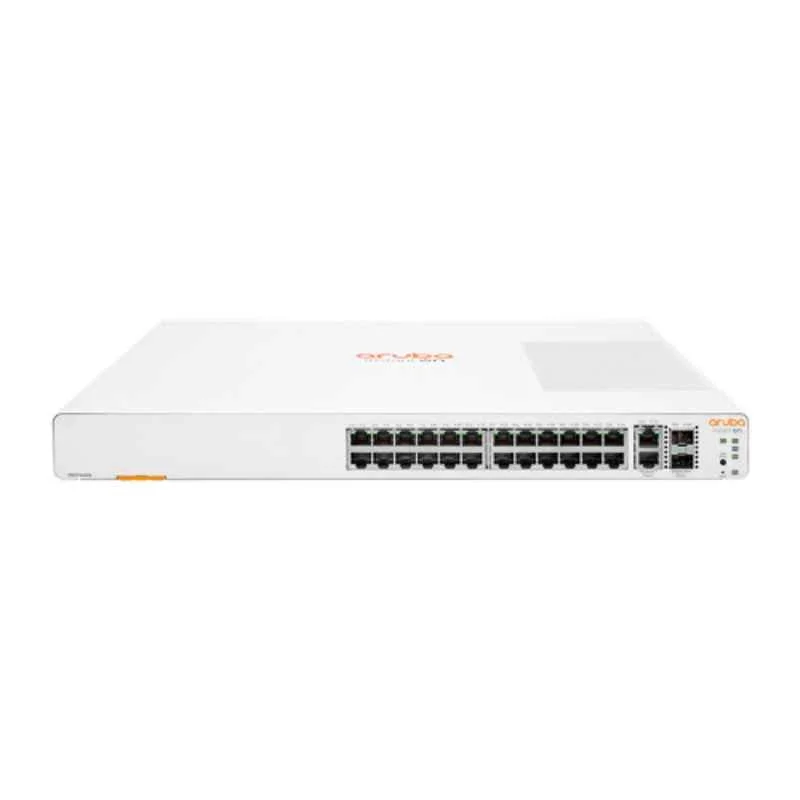

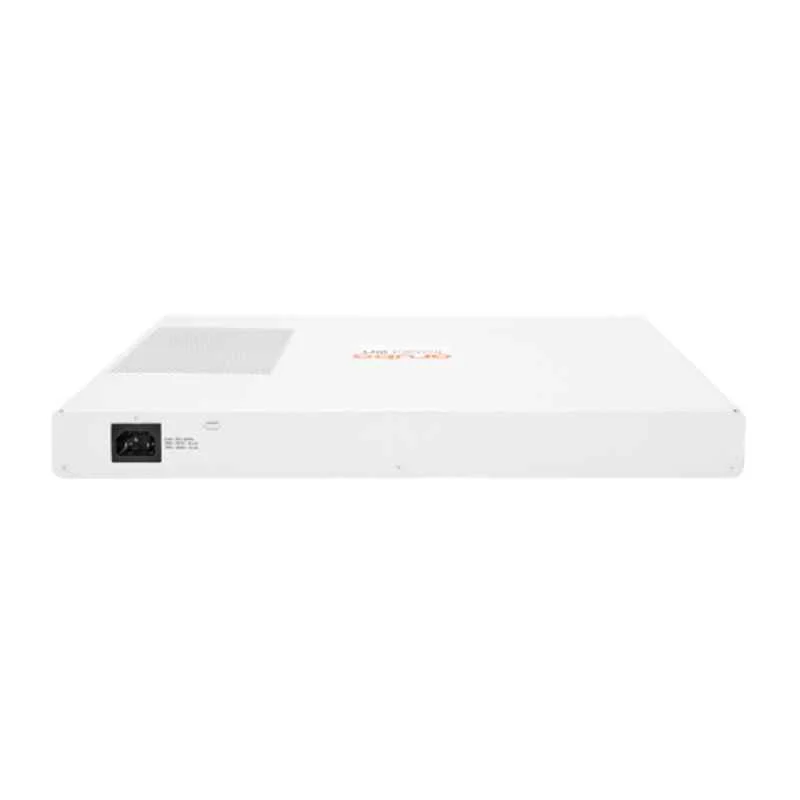

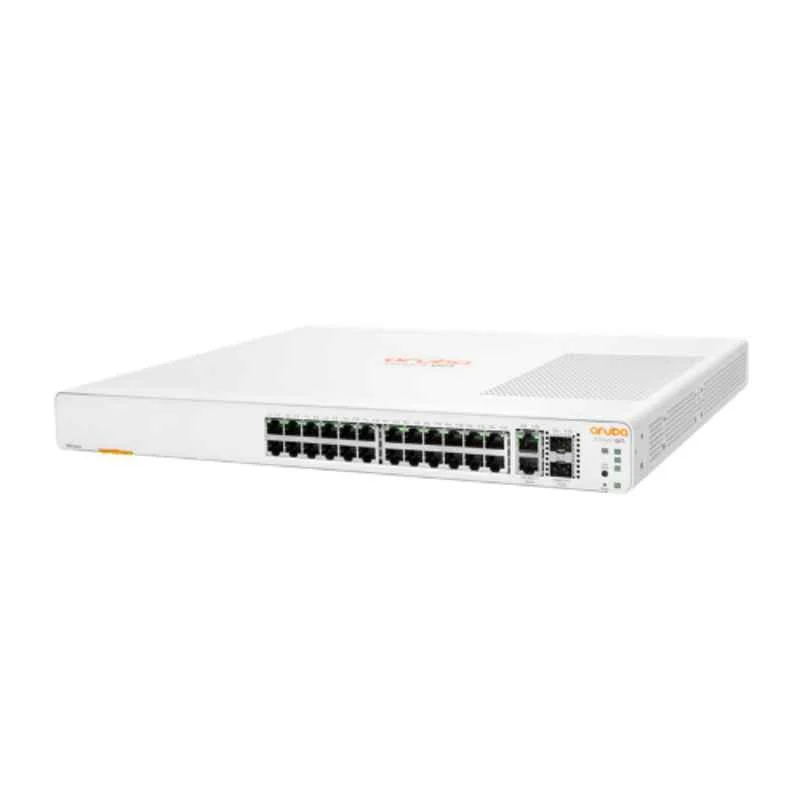

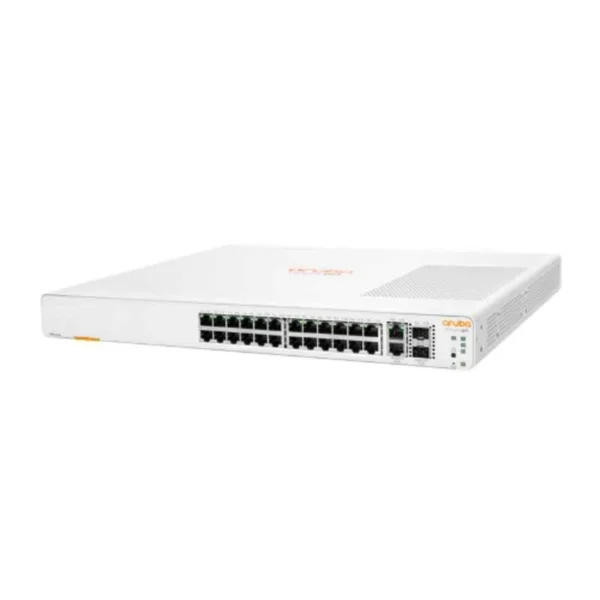

HPE Aruba Instant On 1960 24 Port 24G 2XGT 2SFP+ Network Switch, JL806A
HPE Aruba Instant On 1960 24 Port 24G 2XGT 2SFP+ Network Switch, JL806A - Image 2
HPE Aruba Instant On 1960 24 Port 24G 2XGT 2SFP+ Network Switch, JL806A - Image 3
HPE Aruba Instant On 1960 24 Port 24G 2XGT 2SFP+ Network Switch, JL806A - Image 4
HPE Aruba Instant On 1960 24 Port 24G 2XGT 2SFP+ Network Switch, JL806A - Image 5
,

HPE Aruba Instant On 1960 24 Port 24G 2XGT 2SFP+ Network Switch, JL806A

Availability:

Available on backorder
Compare

The HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch (JL806A) is a smart-managed, stackable Layer 2+ switch with 24 Gigabit ports, 2 10GBASE-T, and 2 10G SFP+ uplinks. Perfect for SMBs, it offers cloud-based management, robust security, and fanless operation.

₹46,700.00 ₹50,000.00

Available on backorder

Compare

The HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch (JL806A) is an advanced, smart-managed, stackable Layer 2+ Gigabit Ethernet switch tailored for small and growing businesses requiring high-speed, reliable networking. Equipped with 24 Gigabit Ethernet ports, 2 10GBASE-T ports, and 2 10G SFP+ uplink ports, it delivers robust connectivity for bandwidth-intensive applications like voice, video conferencing, and cloud services. Ideal for tech startups, healthcare facilities, and training centers, it supports cloud-managed stacking of up to four switches via the Aruba Instant On mobile app or web portal, simplifying management without licensing fees. Security features include IEEE 802.1X, Access Control Lists (ACLs), Trusted Platform Module (TPM), and automatic Denial-of-Service (DoS) protection. Energy-efficient with IEEE 802.3az and a fanless design for silent operation, it ensures low operating costs. The switch includes a limited lifetime warranty, a QR-coded luggage tag for easy onboarding, and is rack-mountable, making it a scalable, cost-effective solution for modern SMB networks.

SKU: JL806A Categories: , Tags: , , , , , , , , , , , , , , Brand:

Technical Specification

  • Ports: 24 x RJ-45 10/100/1000 Mbps (Gigabit Ethernet), 2 x 10GBASE-T, 2 x 10G SFP+ uplink ports

  • Switching Capacity: 128 Gbps

  • Forwarding Rate: 95 Mpps

  • Latency: 4.4 µs (100 Mbps), 2.2 µs (1 Gbps), 1.1 µs (10 Gbps)

  • Processor: 800 MHz ARM Cortex-A9 Single-Core

  • Memory: 1 GB SDRAM, 512 MB flash, 16 MB packet buffer

  • MAC Address Table: 16,000 entries

  • Capacity: IPv4/IPv6 static routes: 32 each

  • Power Consumption: Max: 80W; Idle: 40W

  • Input Voltage: 100 – 240 VAC, 50/60 Hz

  • Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP (v1, v2c, v3), HTTP/HTTPS, RADIUS

  • Security: IEEE 802.1X, ACLs, TPM, VLANs, RADIUS, DoS protection, DHCP snooping

  • Layer 2+ Features: VLANs (4,096), LACP, STP, RSTP, MSTP, IPv4/IPv6 static routing, QoS, Jumbo frames (9,216 bytes)

  • Stacking: Up to 4 switches (local or cloud-managed)

  • Energy Efficiency: IEEE 802.3az (EEE), adaptive power consumption

  • Mounting: Rackmount (1U), tabletop (rack ears included); not recommended for under-table mounting due to top vent

  • Dimensions: 44.25 cm (W) x 35.05 cm (D) x 4.39 cm (H)

  • Weight: 3.9 kg

  • Operating Temperature: 0-40°C

  • Cooling: Fanless, passive cooling with large top vent

  • Reliability: MTBF 94.5 years

  • Warranty: Limited Lifetime
