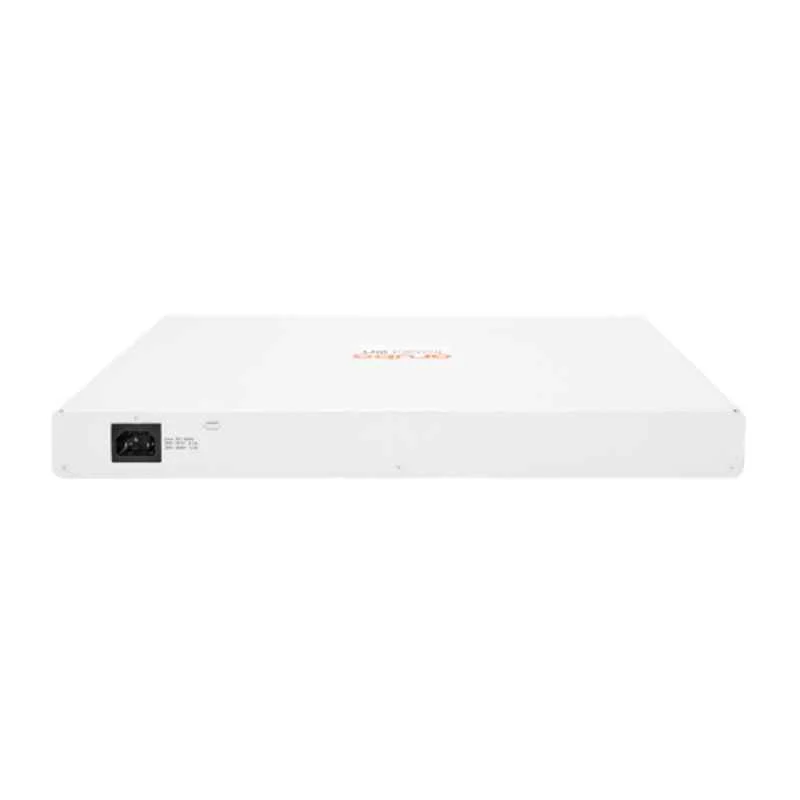

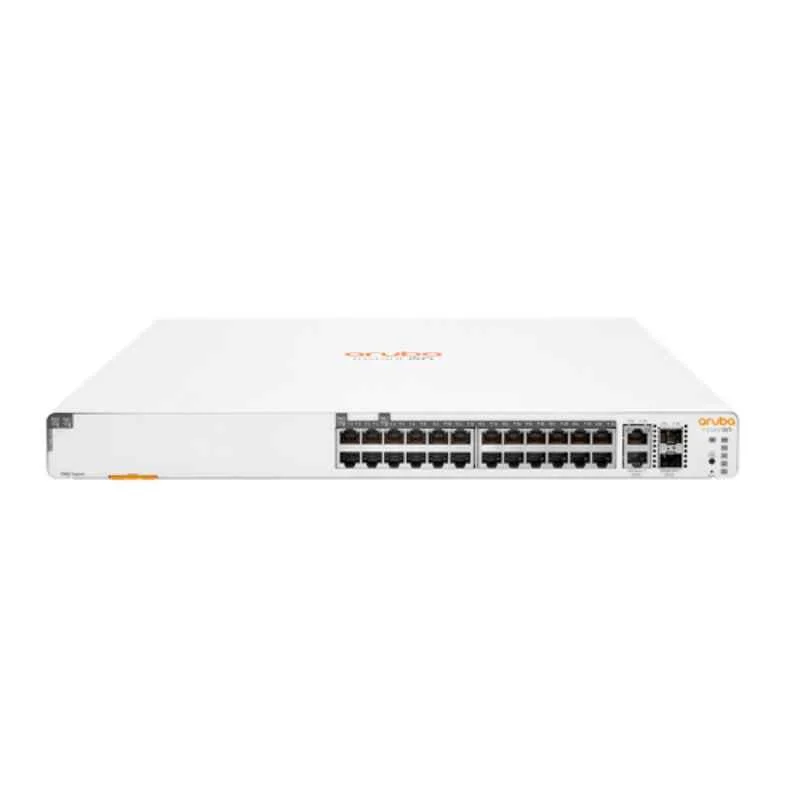

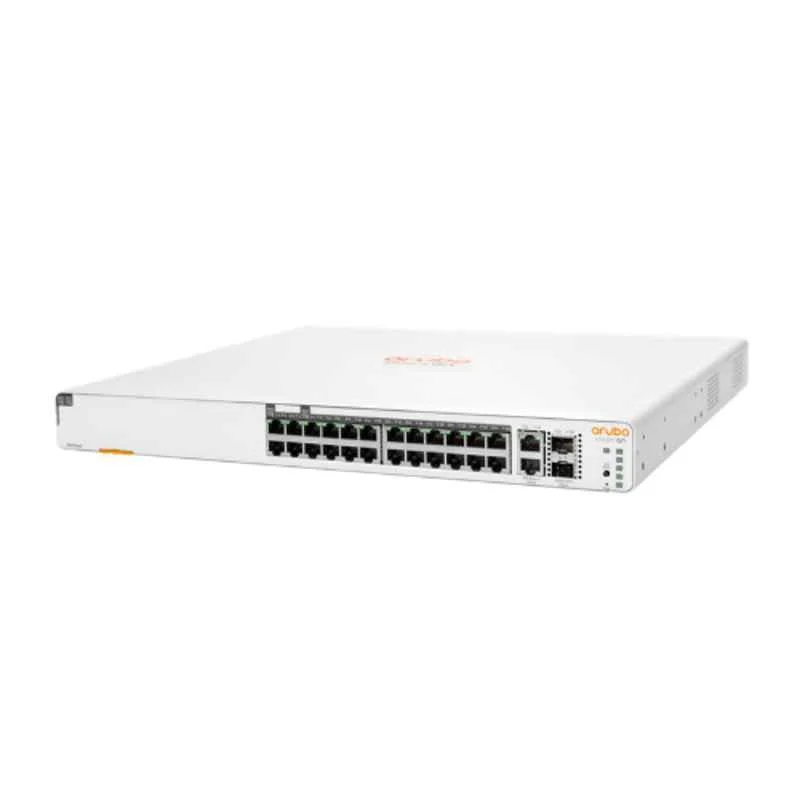

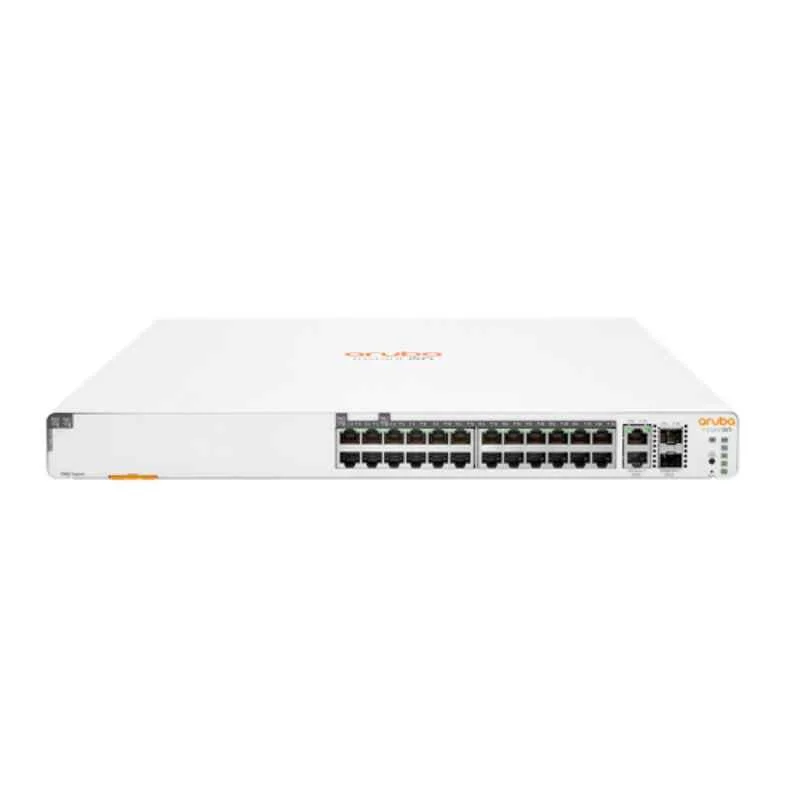

HPE Aruba Instant On 1960 370W 24G 20P 4P 2XGT 2SFP+ PoE Network Switch, JL807A


The HPE Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 370W Switch (JL807A) is a smart-managed, stackable Layer 2+ switch with 24 Gigabit ports (20 Class 4, 4 Class 6 PoE), 2x 10GBASE-T, and 2x 10G SFP+ uplinks. Perfect for SMBs, it offers cloud-based management, robust security, and easy deployment.

75,000.00 81,000.00

Compare

The HPE Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch (JL807A) is an advanced, smart-managed, stackable Layer 2+ Gigabit Ethernet switch designed for small and growing businesses requiring high-performance, secure, and scalable networking. It features 24 Gigabit Ethernet ports, with 20 supporting Class 4 PoE (30W per port) and 4 supporting Class 6 PoE (60W per port), providing a 370W PoE budget to power devices like access points, IP phones, and high-power IoT devices such as pan-tilt-zoom cameras. Two 10GBASE-T and two 10G SFP+ uplink ports deliver high-bandwidth connectivity for servers and storage. The switch supports cloud-managed stacking (up to four units) via the Aruba Instant On mobile app or web portal, with no licensing fees. Robust security features, including IEEE 802.1X, VLANs, Access Control Lists (ACLs), and automatic Denial-of-Service (DoS) protection, safeguard the network. Energy-efficient technologies like IEEE 802.3az and PoE scheduling reduce power consumption. With a limited lifetime warranty and easy setup, the JL807A is ideal for bandwidth-heavy applications like video conferencing and IoT deployments

Technical Specification Summary

  • Ports: 24 x RJ-45 10/100/1000 Mbps (20 x Class 4 PoE, 4 x Class 6 PoE), 2 x 10GBASE-T, 2 x 10G SFP+ uplink ports

  • PoE Budget: 370W (30W per port for Class 4, 60W per port for Class 6)

  • Switching Capacity: 128 Gbps

  • Forwarding Rate: 95.24 Mpps

  • Processor: Dual Core ARM Cortex-A9 @ 1.016 GHz

  • Memory: 1 GB SDRAM, 512 MB flash, 16 MB packet buffer

  • Power Consumption: Max: 500W; Idle: 40W

  • Input Voltage: 100 – 240 VAC, 50/60 Hz

  • Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP

  • Security: IEEE 802.1X, VLANs, ACLs, DoS protection, RADIUS, malware blocking

  • Layer 2+ Features: VLANs, link aggregation (LACP), Spanning Tree Protocols, IPv4/IPv6 static routing, QoS

  • Stacking: Up to 4 switches (local or cloud-managed)

  • Energy Efficiency: IEEE 802.3az (EEE), PoE scheduling

  • Mounting: Rackmount (1U), tabletop (rack ears included)

  • Dimensions: 44.25 cm (W) x 35.05 cm (D) x 4.39 cm (H)

  • Weight: 4.7 kg

  • Operating Temperature: 0-40°C

  • Warranty: Limited Lifetime

  • Standards: IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.3az, 802.3u, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
