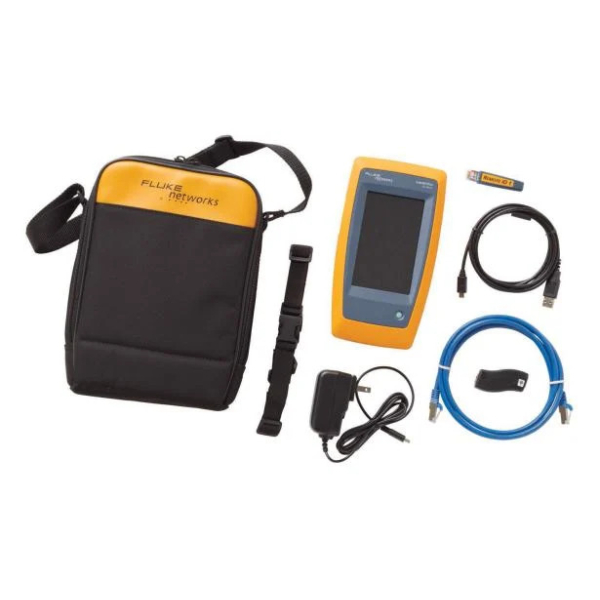

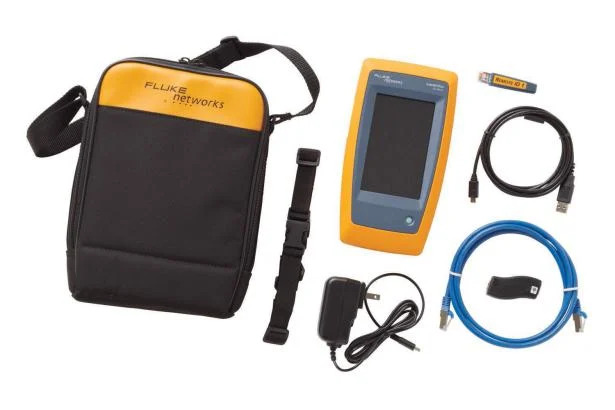

Fluke Networks LIQ-100 LinkIQ Cable + Network Tester
Available on backorder
The LinkIQ™ Cable+Wi-Fi+Network Tester verifies cable performance up to 10 Gb/s, troubleshoots network connectivity, and analyzes Wi-Fi 6E networks. It offers frequency-based cable testing, PoE verification, switch diagnostics, and Wi-Fi analysis (Duo model), with results managed via LinkWare™ PC

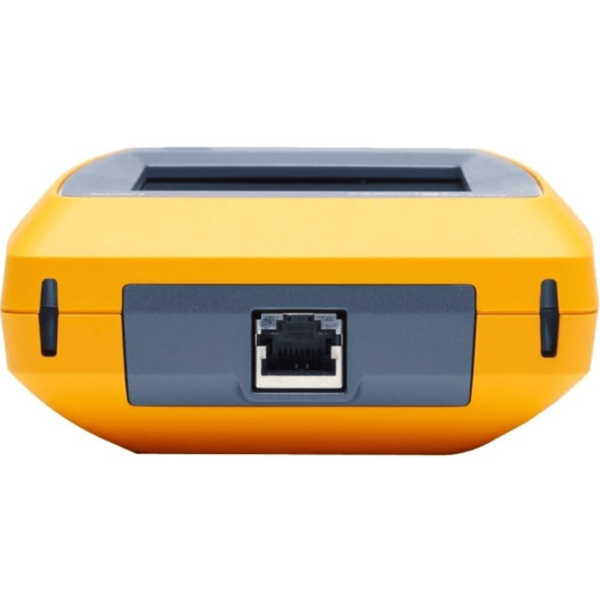

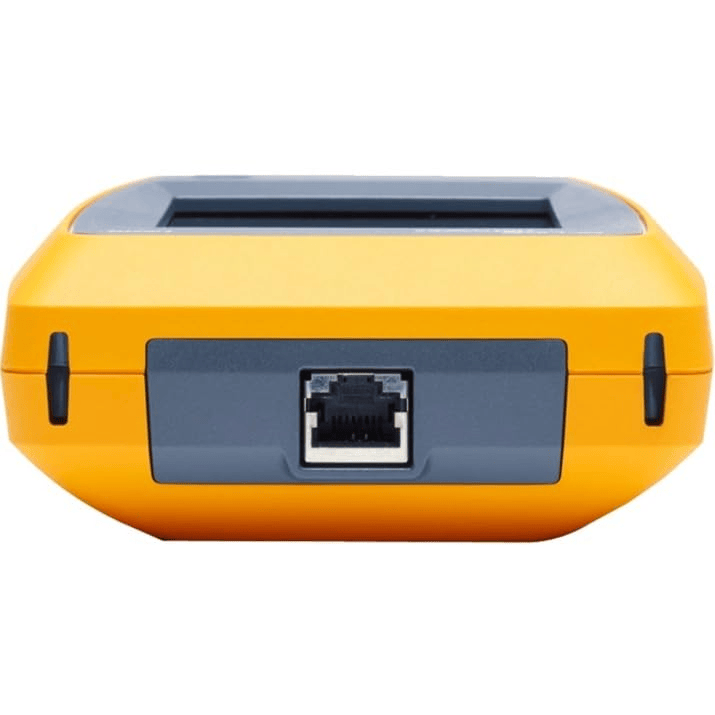

The LinkIQ™ Cable+Wi-Fi+Network Tester by Fluke Networks is a versatile testing solution designed to verify cable performance up to 10 Gb/s, troubleshoot network connectivity issues, and analyze Wi-Fi 6E networks (Duo model, where approved). It performs frequency-based cable performance tests, provides distance-to-fault diagnostics, and supports wire mapping for RJ45, M12X, M12D, and M8D connectors, catering to Ethernet/IP, PROFINET, and EtherCAT protocols (IE versions). The tester also offers advanced network diagnostics, including IPv4/v6 ping, nearest switch diagnostics (IP address, name, port/VLAN, and data rates), and Ethernet Alliance-certified PoE verification (Classes 1-8). The LinkIQ Duo model includes Wi-Fi analysis for 2.4 GHz, 5 GHz, and 6 GHz bands, identifying networks, channels, access points, and common configuration issues. Additional features include analog/digital toning, port blinking, remote office locators, and result management via LinkWare™ PC. With a touch-sensitive color display, rechargeable Li-ion battery, and multi-language support, it ensures reliable, user-friendly operation for professionals managing critical network infrastructure.
Technical Specification Summary
-
Cable Testing: Supports 10BASE-T to 10GBASE-T (10 Mb/s to 10 Gb/s), measures lengths up to 305 m (1000 ft), detects opens, shorts, miswires, and split pairs.
-
Network Diagnostics: IPv4/v6 ping, nearest switch diagnostics (LLDP, CDP, FLP), identifies switch name, IP/MAC address, port, VLAN, and advertised data rates.
-
PoE Verification: Ethernet Alliance-certified for IEEE 802.3at/af/bt, measures power class (0-8), loaded voltage, and power for single/dual signatures.
-

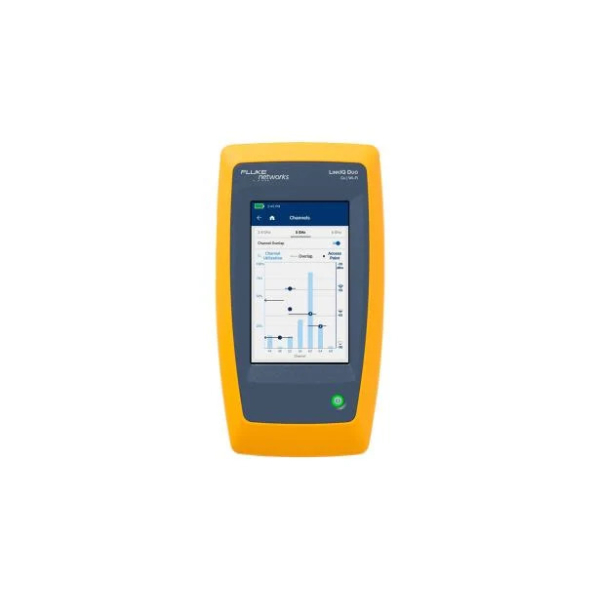

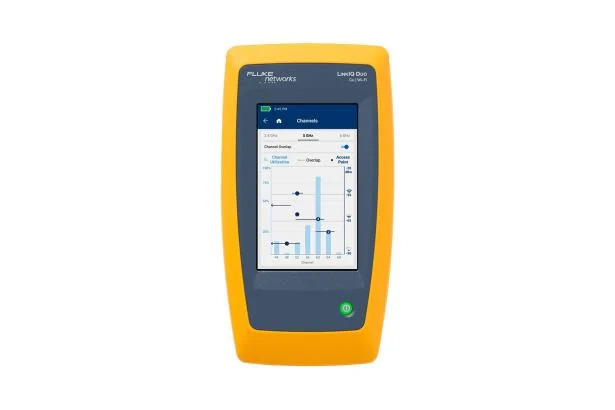

Wi-Fi Testing (Duo Model): Analyzes 2.4 GHz, 5 GHz, 6 GHz bands, displays networks, channels, access points, and flags configuration errors.
-
Additional Features: Analog/digital toning, port blinking, remote ID locators, USB-C for data export/updates/charging, 800×480 color touch display.
-
Battery: 3.6 V, 6400 mAh Li-ion, 8-hour life, 4.5-hour charge time.
-
Physical: 22 cm x 11 cm, 624 g, operates 0°C to 45°C, 1 m drop resistance.
-
Languages: Supports 20 languages, including English, German, French, Japanese, and more.
https://dam-assets.fluke.com/s3fs-public/2024-11/LinkIQ%E2%84%A2_Cable_Wi_Fi_Network_Tester-en-us.pdf?VersionId=lBxICNvLPcZTGKNXoQ.5SmQk8vNTpydI
