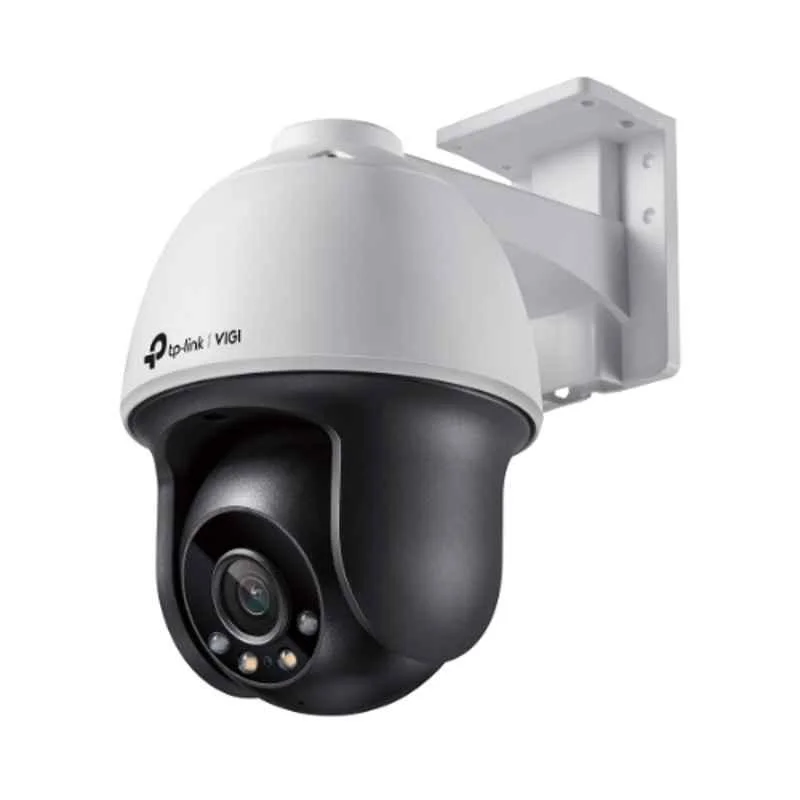

TP-Link VIGI C540 4MP Outdoor Network IP Camera with High Definition Full-Colour PT , NVR Enable, 24h Full-Colour, Smart Detect & IP66 Waterproof
,

TP-Link VIGI C540 4MP Outdoor Network IP Camera with High Definition Full-Colour PT , NVR Enable, 24h Full-Colour, Smart Detect & IP66 Waterproof

Compare

The TP-Link CPE710 delivers 867 Mbps on 5 GHz with a 23dBi antenna, enabling 30+ km connections. IP65 weatherproof and PoE-powered, it’s ideal for long-range PtP/PtMP networks.

₹6,300.00 ₹8,000.00

Compare

The TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE is a high-performance wireless bridge designed for long-range outdoor networking, ideal for point-to-point (PtP) or point-to-multipoint (PtMP) applications like rural connectivity or surveillance backhaul. Delivering up to 867 Mbps on the 5 GHz band using 802.11ac with 256 QAM and 80 MHz bandwidth, it features a 23dBi high-gain directional Cassegrain antenna with a dedicated metal reflector for excellent beam directivity, low latency, and noise immunity over 30 km (18.6 miles) in line-of-sight conditions. Powered by a Qualcomm 750 MHz CPU and Pharos MAXtream TDMA technology, it optimizes PtMP performance. The IP65-rated weatherproof enclosure, 15kV ESD, and 6kV lightning protection ensure durability in harsh environments, with snap-lock assembly for easy installation. Managed via Pharos Control or web GUI, it supports AP, client, bridge, and repeater modes. Some users note complex initial setup for non-experts. The CPE710 is backed by a 2-year limited warranty.

SKU: VIGI C540 Categories: , Tags: , , , , , , , , , , , , , , , Brand:

  • Wireless Standard: 802.11ac (WiFi 5), backward compatible with 802.11a/n

  • Data Rate: Up to 867 Mbps (5 GHz, 2×2 MIMO, 256 QAM, 80 MHz)

  • Antenna: 23dBi directional Cassegrain 2×2 MIMO, 9° (H-plane) / 7° (E-plane) beamwidth

  • Transmission Power: Adjustable, 0–27 dBm/500mW (region-dependent)

  • Range: Up to 30 km (18.6 miles, line-of-sight, environment-dependent)

  • Processor: Qualcomm 750 MHz CPU, MIPS 74Kc

  • Memory: 128 MB DDR2 RAM, 16 MB flash

  • Ports: 1 x 10/100/1000 Mbps shielded Ethernet (LAN/POE, Passive PoE)

  • Power: Passive PoE (24V/0.5A, adapter included), 10.8W max

  • Modes: AP, Client, AP Router, AP Client Router (WISP), Repeater, Bridge

  • Features: Pharos MAXtream TDMA, spectrum analyzer, WEP/WPA/WPA2-PSK, QoS, VLAN, distance adjustment, ping watchdog, 15kV ESD protection, 6kV lightning protection

  • Management: Pharos Control software, web-based GUI

  • IP Rating: IP65 (weatherproof, dust-tight, water-resistant)

  • Dimensions: 366 mm (W) x 280 mm (D) x 207 mm (H)

  • Weight: 1.4 kg

  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)

  • Operating Humidity: 10% to 90% non-condensing

  • Certifications: CE, FCC, RoHS, IC

  • Warranty: 2-year limited
