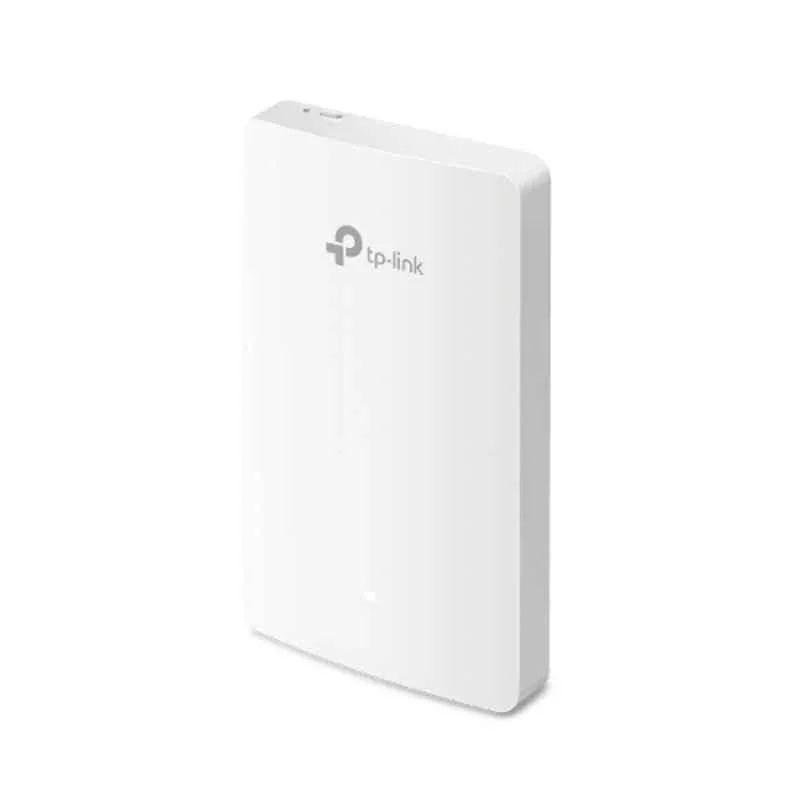

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall - Image 2
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall - Image 3
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall - Image 4
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall - Image 5
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall - Image 6
,

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall

Compare

The TP-Link Omada EAP235-Wall AC1200 delivers 1,167 Mbps WiFi with 4 Gigabit ports, including PoE pass-through. Slim, PoE-powered, and Omada SDN-managed, it’s ideal for hotels and offices.

₹4,000.00 ₹5,000.00

Compare

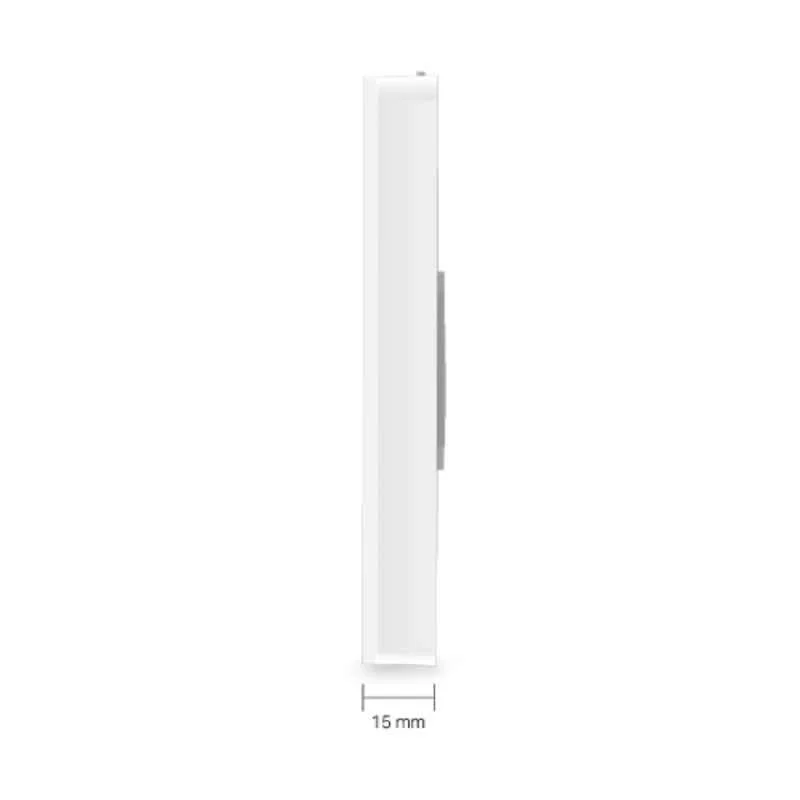

The TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point is a sleek, enterprise-grade solution designed for environments with multiple rooms, such as hotels, offices, hospitals, and dormitories. Delivering dual-band WiFi speeds up to 1,167 Mbps (300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz), it leverages 802.11ac Wave 2 with 2×2 MU-MIMO to support multiple devices for seamless streaming and VoIP. Integrated with the Omada SDN platform, it offers centralized cloud management via the Omada app, web interface, or controller, supporting features like captive portal, VLAN, and seamless roaming. It features four Gigabit Ethernet ports (1 uplink, 3 downlink, one with PoE pass-through), with 802.3af/at PoE support for easy in-wall installation. Its ultra-slim 15mm design matches standard wall outlets, blending seamlessly. Security includes WPA3 and up to 16 SSIDs, though some users note limited range through thick walls. The EAP235-Wall is backed by a 5-year limited warranty.

SKU: EAP235 Categories: , Tags: , , , , , , , , , , , , , , , Brand:

  • Wireless Standard: 802.11ac Wave 2 (WiFi 5), backward compatible with 802.11a/b/g/n

  • Radios: Dual-band 2.4 GHz (300 Mbps, 2×2 MIMO), 5 GHz (867 Mbps, 2×2 MIMO)

  • Data Rates: Up to 1,167 Mbps (300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz)

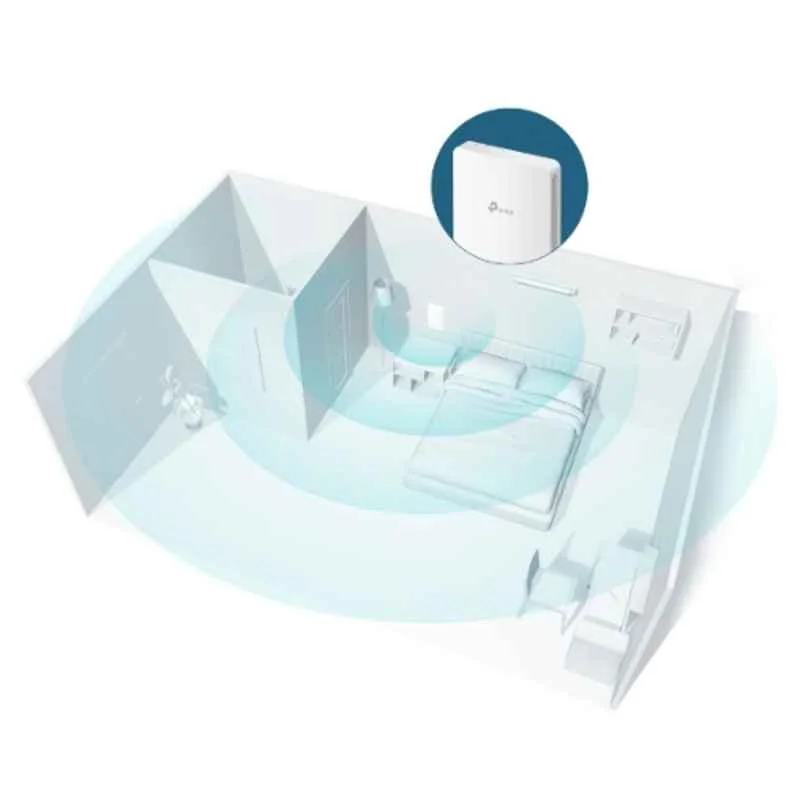

  • Coverage: Up to 1,000 sq. ft. (environment-dependent, ~4.5m through walls)

  • Client Capacity: Up to 50+ devices

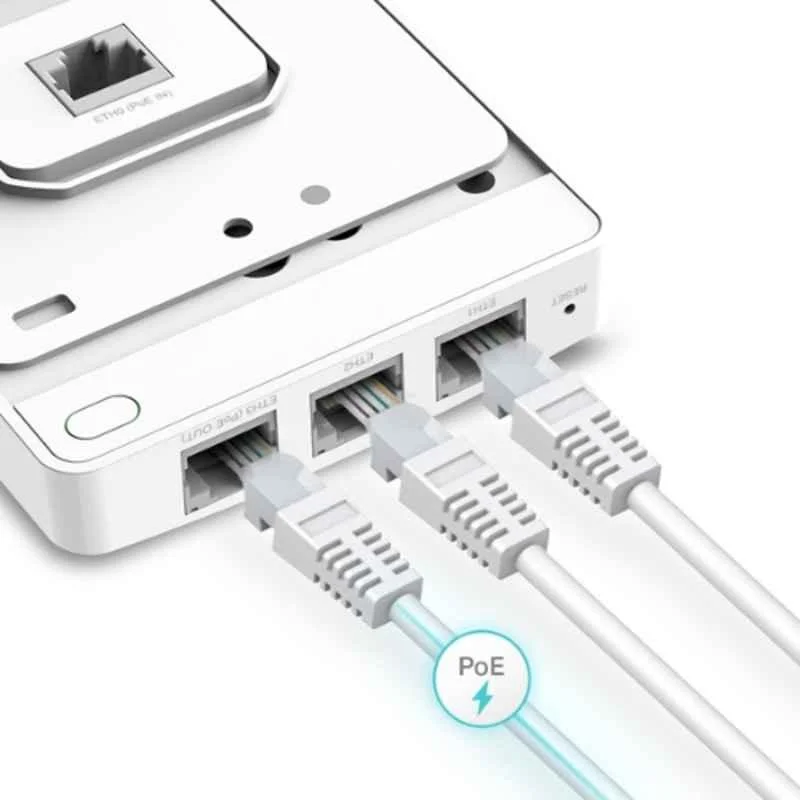

  • Ports: 4 x 10/100/1000 Mbps Gigabit Ethernet (1 uplink with PoE 802.3af/at in, 3 downlink, 1 with PoE pass-through up to 15.4W)

  • Antennas: Internal (2.4 GHz: 2 x 4 dBi, 5 GHz: 2 x 3.6 dBi)

  • Security: WEP, WPA/WPA2/WPA3, up to 16 SSIDs (8 per band), guest network, MAC filtering, rogue AP detection

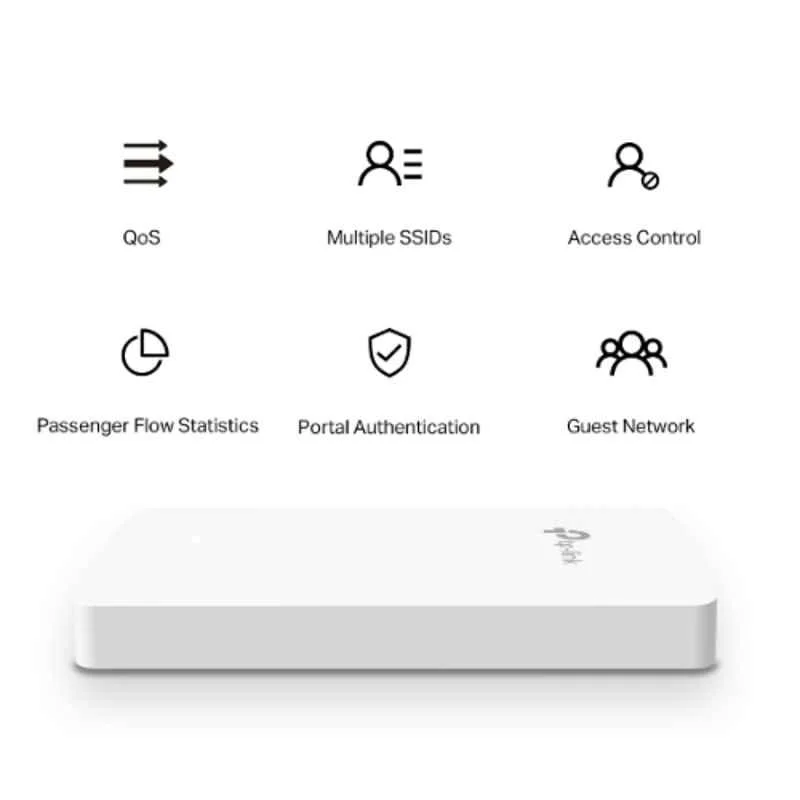

  • Features: 2×2 MU-MIMO, seamless roaming, band steering, Beamforming, QoS (WMM), VLAN, captive portal, load balancing

  • Management: Omada SDN (app, web, controller software), standalone web GUI

  • Power: PoE 802.3af/at (10W max), no DC adapter option

  • Dimensions: 143 mm (W) x 86 mm (D) x 20 mm (H)

  • Weight: 0.19 kg

  • Operating Temperature: 0°C to 40°C

  • Certifications: CE, FCC, RoHS

  • Warranty: 5-year limited
