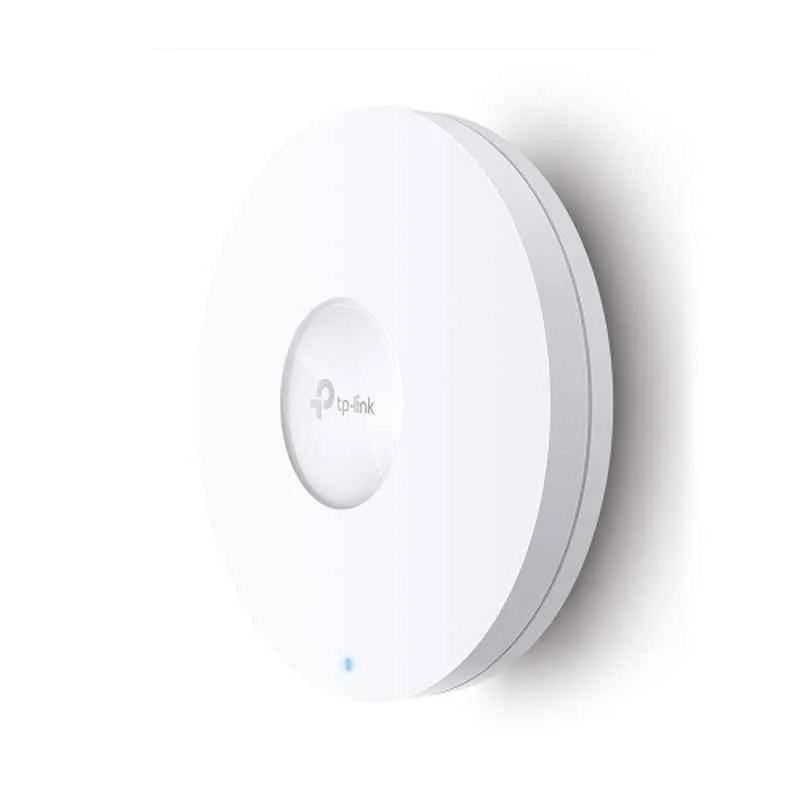

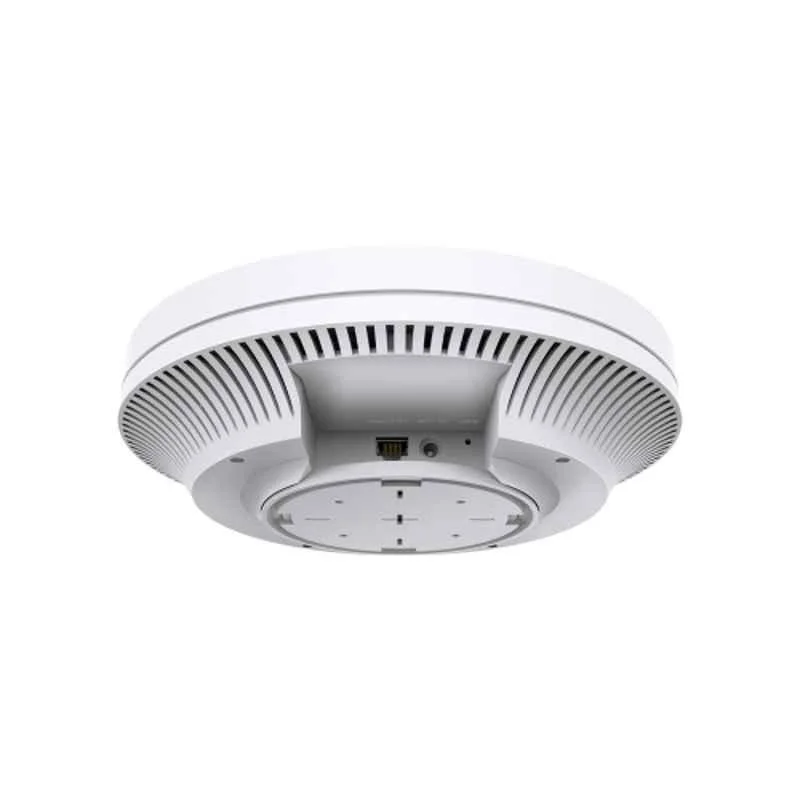

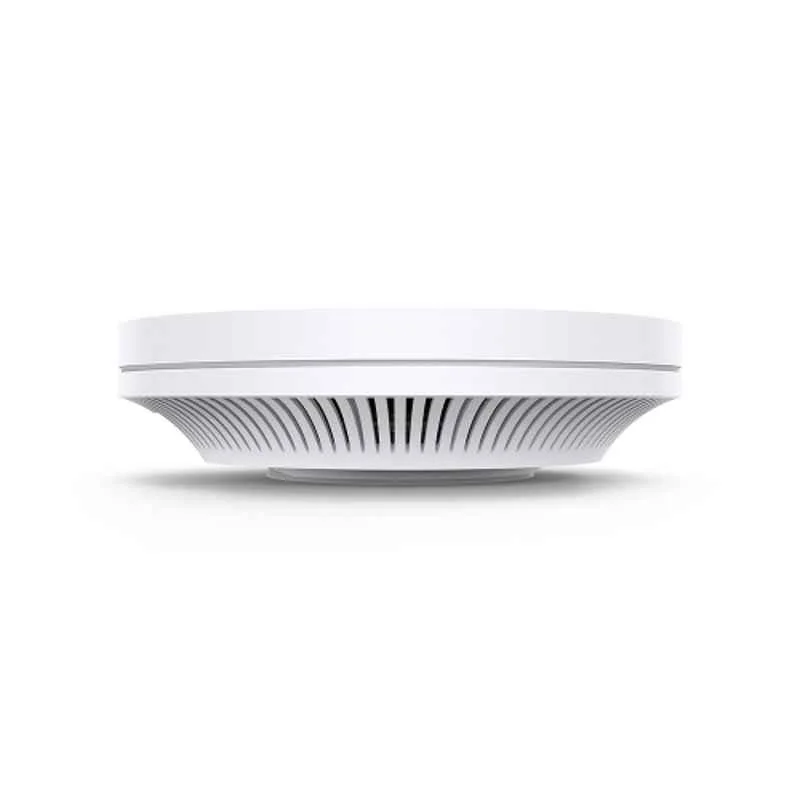

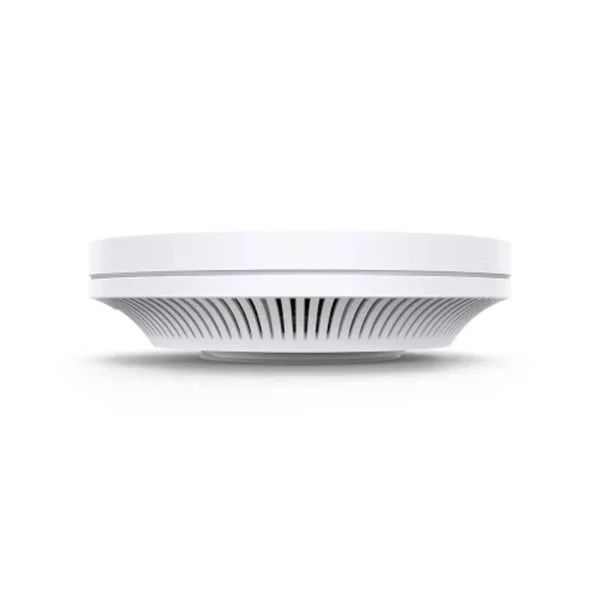

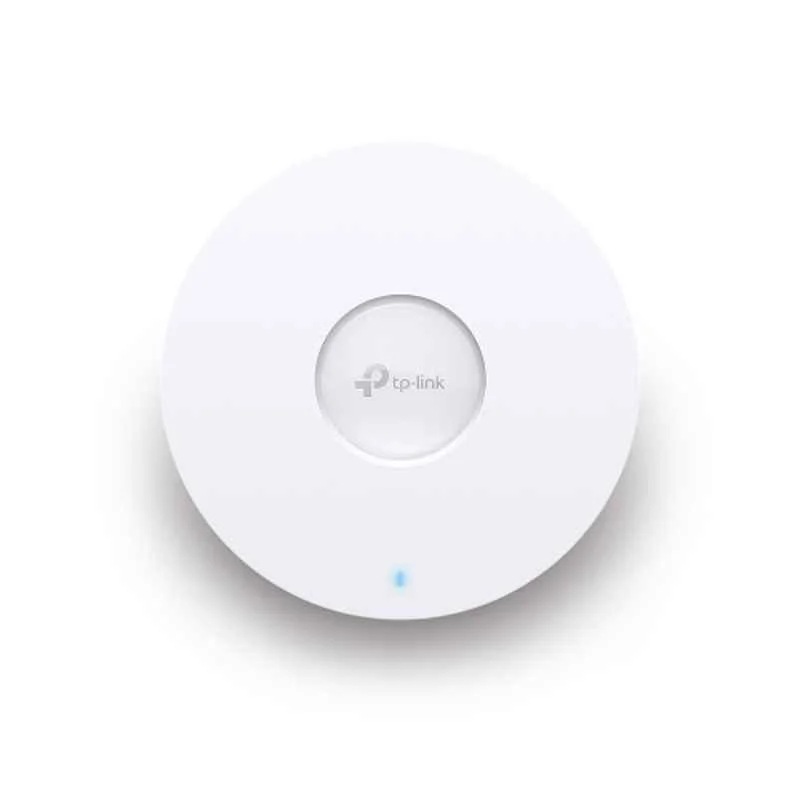

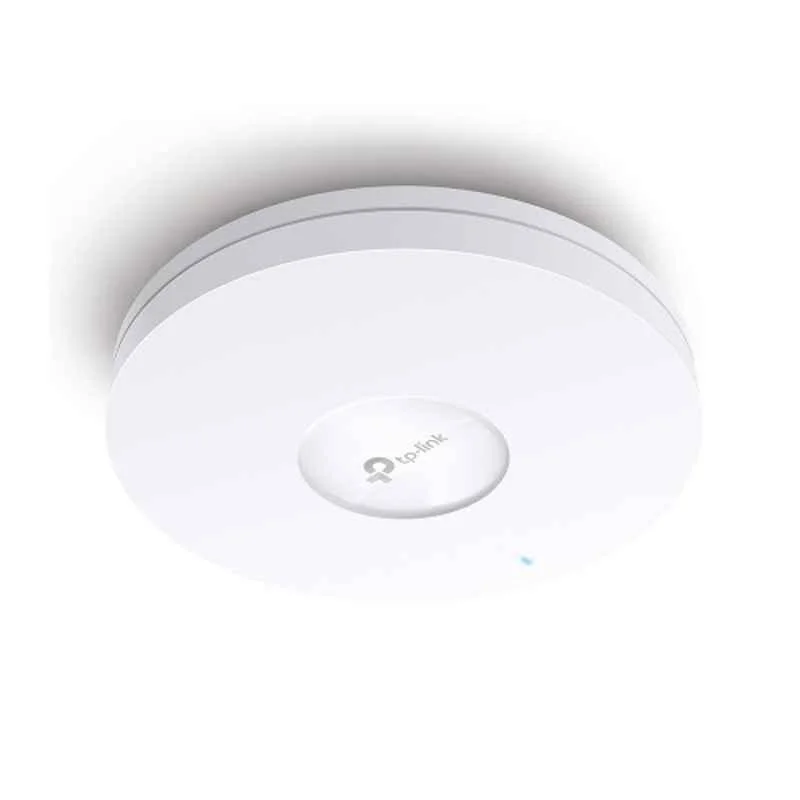

The TP-Link Omada EAP670 AX5400 Dual-Band Ceiling Mount Access Point is a high-performance, enterprise-grade WiFi 6 solution for businesses, delivering blazing-fast speeds up to 5.4 Gbps (574 Mbps on 2.4 GHz, 4,804 Mbps on 5 GHz) across 2,500 sq. ft. Leveraging 802.11ax with 4×4 MU-MIMO, OFDMA, and 160 MHz channels, it supports over 250 devices for seamless 4K/8K streaming, VoIP, and IoT applications in high-density environments like offices, schools, or hotels. Integrated with the Omada SDN platform, it offers centralized cloud management via the Omada app, web interface, or controller, supporting advanced features like mesh networking, seamless roaming, and captive portal. Power over Ethernet (802.3at) and a 2.5Gbps Ethernet port ensure flexible deployment, while WPA3 and up to 16 SSIDs provide robust security. Its sleek, low-profile design blends into ceilings, though some users note complex initial setup without the controller. The EAP670 is backed by a 5-year limited warranty.
TP-Link EAP670 Dual-Band Ceiling Mount Wi-Fi Router, AX5400
The TP-Link Omada EAP670 AX5400 Access Point delivers 5.4 Gbps WiFi 6 across 2,500 sq. ft. for 250+ devices. With MU-MIMO, PoE, and Omada SDN, it’s perfect for high-density business networks.
₹17,000.00 ₹20,000.00
-
Wireless Standard: 802.11ax (WiFi 6), backward compatible with 802.11a/b/g/n/ac
-
Radios: Dual-band 2.4 GHz (574 Mbps, 2×2 MIMO), 5 GHz (4,804 Mbps, 4×4 MIMO)
-
Data Rates: Up to 5,376 Mbps (574 Mbps on 2.4 GHz, 4,804 Mbps on 5 GHz)
-
Coverage: Up to 2,500 sq. ft. (environment-dependent)
-
Client Capacity: Up to 250+ devices
-
Ports: 1 x 2.5 Gbps Ethernet (RJ45, PoE 802.3at)
-
Antennas: Internal (2.4 GHz: 4 x 4 dBi, 5 GHz: 4 x 5 dBi)
-
Security: WPA/WPA2/WPA3, up to 16 SSIDs (8 per band), guest network, MAC filtering, rogue AP detection
-
Features: 4×4 MU-MIMO, OFDMA, 160 MHz channels, seamless roaming, mesh networking, band steering, Beamforming, QoS (WMM), VLAN, captive portal, load balancing
-
Management: Omada SDN (app, web, controller software), standalone web GUI
-
Power: PoE 802.3at (21.5W max) or 12V/2A DC (adapter included)
-
Dimensions: 243 mm (W) x 243 mm (D) x 64 mm (H)
-
Weight: 0.82 kg
-
Operating Temperature: 0°C to 40°C
-
Certifications: CE, FCC, RoHS
-
Warranty: 5-year limited
