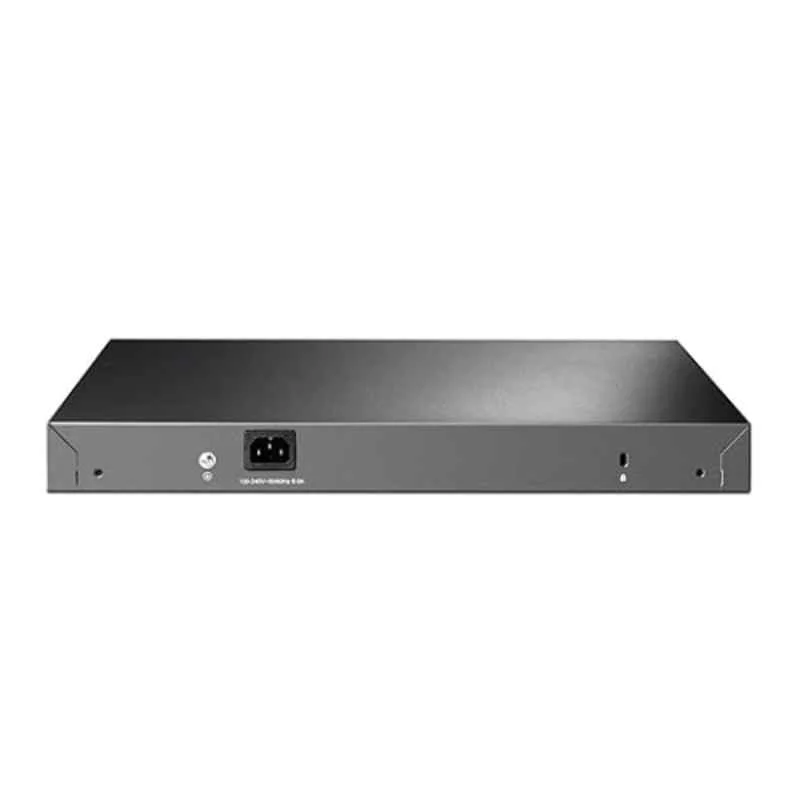

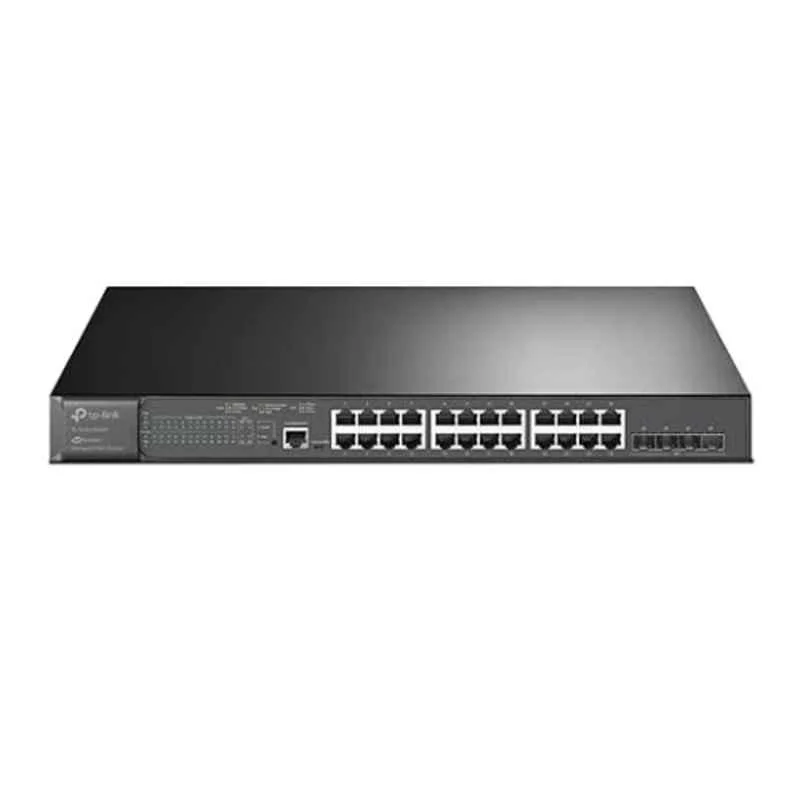

TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP
TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP - Image 2
TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP - Image 3
TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP - Image 4
TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP - Image 5
TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP - Image 6
,

TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE, TL-SG3428XMP

Compare

The TP-Link TL-SG3428XMP provides 24 Gigabit PoE+ ports (384W) and 4× 10GE SFP+ slots. Omada SDN-managed, it’s ideal for surveillance and VoIP networks.

₹26,500.00 ₹31,000.00

Compare

The TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ is a high-performance, enterprise-grade switch designed for small to medium businesses requiring robust network scalability and power delivery. It features 24 Gigabit RJ45 PoE+ (802.3af/at) ports with a 384W total power budget, supporting up to 30W per port for powering IP cameras, VoIP phones, and access points. Four 10 Gbps SFP+ slots provide high-bandwidth fiber uplinks, delivering a 128 Gbps switching capacity for non-blocking performance. Integrated with the Omada SDN platform, it offers centralized cloud management via the Omada app, web GUI, or controller, supporting L2+ and L3 features like static routing, 802.1Q VLAN (up to 4,000), QoS, and IGMP Snooping. Security features include IP-MAC-Port Binding, 802.1x authentication, and ACLs. Its fan-cooled, rack-mountable metal casing ensures durability, though fan noise may be noticeable. Ideal for surveillance and VoIP networks, the TL-SG3428XMP is backed by OEM limited warranty.

SKU: TL-SG3428XMP Categories: , Tags: , , , , , , , , , , , , , , , , , , Brand:

  • Device Type: JetStream Gigabit L2+ Managed Switch with PoE+

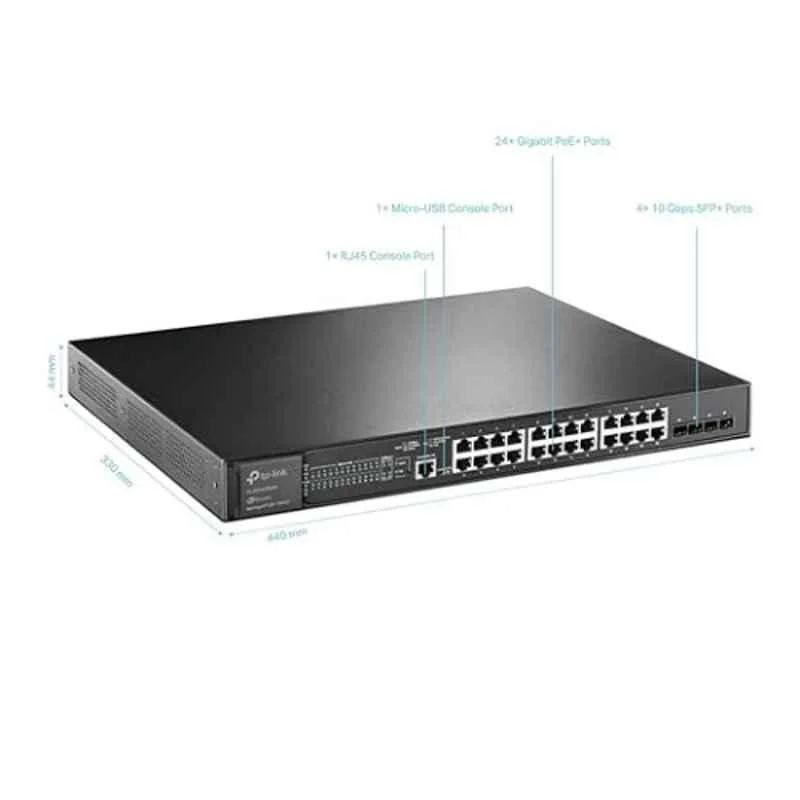

  • Ports: 24 x 10/100/1000 Mbps RJ45 PoE+ (802.3af/at, up to 30W per port), 4 x 10 Gbps SFP+ slots, 1 x RJ45 Console Port, 1 x Micro-USB Console Port

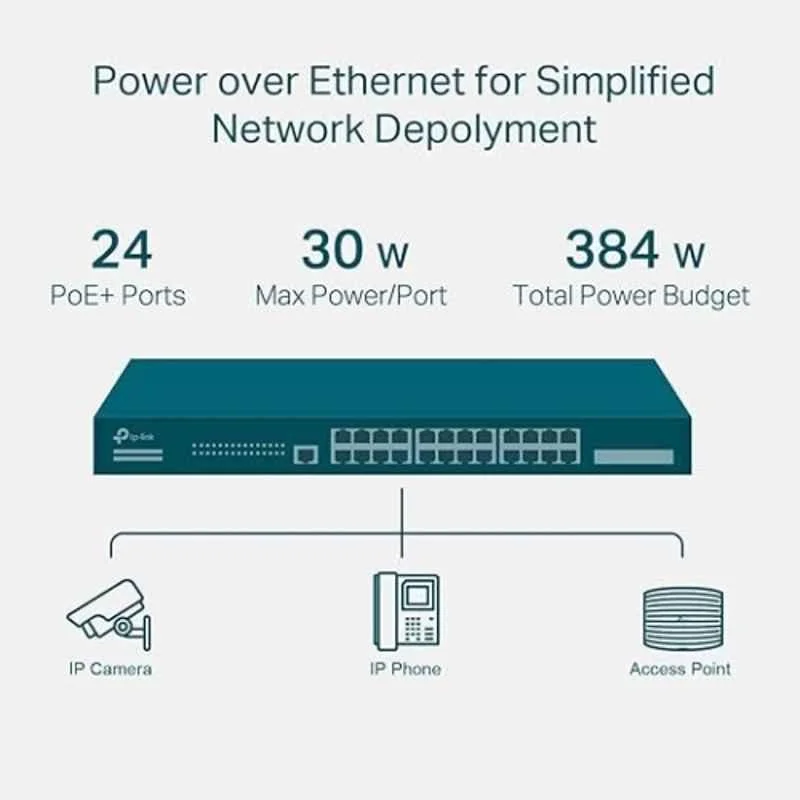

  • PoE Power Budget: 384W total

  • Switching Capacity: 128 Gbps

  • Forwarding Rate: 95.24 Mpps

  • MAC Address Table: 16,000 entries

  • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x, 802.3af, 802.3at

  • Management Features: 802.1Q VLAN (up to 4,000), L2+ static routing, QoS (L2/L3/L4, 802.1p/DSCP), IGMP Snooping (v1/v2/v3), Link Aggregation, STP/RSTP/MSTP, ACL, IP-MAC-Port Binding, Port Security, Storm Control, DHCP Snooping, 802.1x, AAA, IPv6, MLD Snooping, Port Mirroring

  • Management: Omada SDN (app, web, controller, cloud access, Zero-Touch Provisioning), standalone web GUI, CLI, SNMP (v1/v2c/v3), RMON

  • Packet Buffer: 12 Mb

  • Jumbo Frame: Up to 9 KB

  • Power: 100–240V AC, 50/60 Hz, internal power supply

  • Power Consumption: Max: 463.8W (with PoE), Idle: 28.2W

  • Cooling: Active cooling (fans)

  • Dimensions: 440 mm (W) x 330 mm (D) x 44 mm (H)

  • Weight: 4.2 kg

  • Operating Temperature: 0°C to 45°C

  • Certifications: CE, FCC, RoHS

  • Warranty: As per OEM
