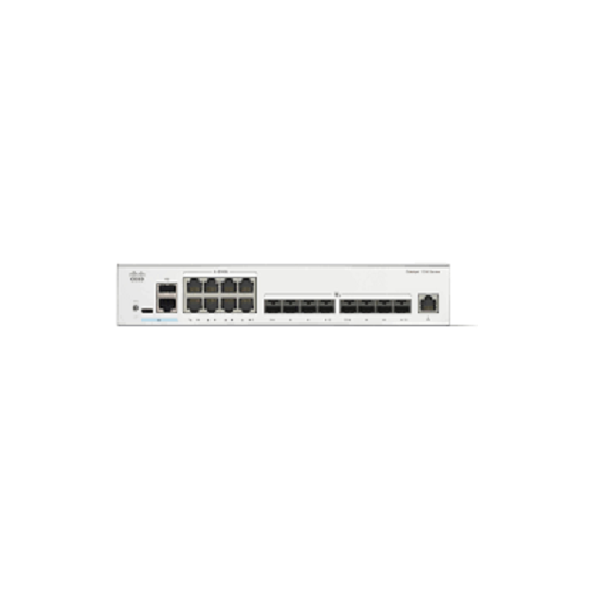

Cisco Catalyst C1300-16XTS Managed Switch – High-Performance 16-Port Gigabit & SFP+ Uplinks | KYS Infotech


The Cisco Catalyst C1300-16XTS Managed Switch is a high-performance Layer 3 switch for SMBs, offering 8 x 10GBase-T and 8 x 10G SFP+ ports with 320 Gbps capacity.



Price on Request

Powerful 16-Port Managed Switch for Modern Networks

The Cisco Catalyst C1300-16XTS Managed Switch is engineered for reliable performance in growing business environments. It offers 16 Gigabit Ethernet ports for wired connectivity and high-speed SFP+ uplinks for seamless integration into larger networks. This makes it ideal for businesses that require both capacity and speed without compromising stability.


Scalable, High-Speed Connectivity

This switch supports Gigabit throughput on all ports, ensuring smooth data flow even under heavy workloads. The SFP+ uplinks provide fast backbone connectivity to core switches or servers, enabling efficient network expansion without bottlenecks.


Secure and Easy to Manage

With Cisco’s advanced security features, including access control lists (ACLs), port security, and DHCP snooping, your network remains protected from unauthorized access. Its intuitive management interface allows easy configuration, whether through a web GUI or CLI, giving IT teams full control.


Designed for SMBs and Enterprise Branch Offices

The Cisco Catalyst C1300-16XTS is perfect for small to medium-sized businesses, educational institutions, and branch offices. Its fanless or low-noise design ensures quiet operation, while energy-efficient technology reduces operational costs.


Conclusion: Reliable Networking with Enterprise-Grade Features

Whether you’re upgrading an existing infrastructure or building a new network, the Cisco Catalyst C1300-16XTS Managed Switch offers secure, high-performance, and scalable networking that grows with your business.

Visit KYS Infotech Cisco Brand Page
Download Cisco Catalyst 1300 Series Switches Data Sheet (PDF)

Technical Specification:

  • Product Type: Managed Network Switch
  • Ports:
    • 8 x 10GBase-T RJ-45 (10/100/1000/10000 Mbps)
    • 8 x 10G SFP+ ports
    • 1 x Gigabit Ethernet management port (RJ-45)
  • Switching Capacity: 320 Gbps (non-blocking)
  • Forwarding Rate: 238.08 Mpps (64-byte packets)
  • Layer Support: Layer 2 and Layer 3 (static and dynamic routing, RIP)
  • MAC Address Table: 16,000 entries
  • Jumbo Frames: Up to 9,000 bytes
  • Processor: 800 MHz ARM
  • Memory: 512 MB DRAM, 256 MB flash
  • Power Supply: Internal, 100-240V AC
  • Power Consumption: 76.3W (maximum, no PoE)
  • Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet, automatic power shutoff, cable length detection
  • Cooling: 1 fan (not fanless)
  • Stacking: Virtual stacking up to 4 units via software
  • Management: Cisco Business Dashboard, Cisco Business mobile app, web-based UI, CLI, SNMP, Cisco Network Plug and Play (PnP)
  • Security Features:
    • IEEE 802.1X port authentication, port security
    • IP-MAC port binding, IPv6 First Hop Security
    • Access Control Lists (ACLs) for MAC, VLAN, IP
    • DHCP snooping, Secure Shell (SSH), Secure Copy (SCP)
  • Quality of Service (QoS):
    • 802.1p priority, DSCP, DiffServ for traffic prioritization
    • Ingress policing, egress shaping, VoIP/video optimization
  • VLAN Support: Up to 4,094 VLANs, voice VLAN, guest VLAN, protocol-based VLAN
  • Standards Compliance: IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1X, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z
  • Dimensions: 268 x 272 x 44 mm (10.56 x 10.69 x 1.73 in)
  • Weight: 2.49 kg (5.49 lb)
  • Mounting: Rack-mountable (1U)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • MTBF: Not specified (typical for series: ~200,000 hours)
  • Certifications: UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1, CE marking
  • Warranty: Limited lifetime
