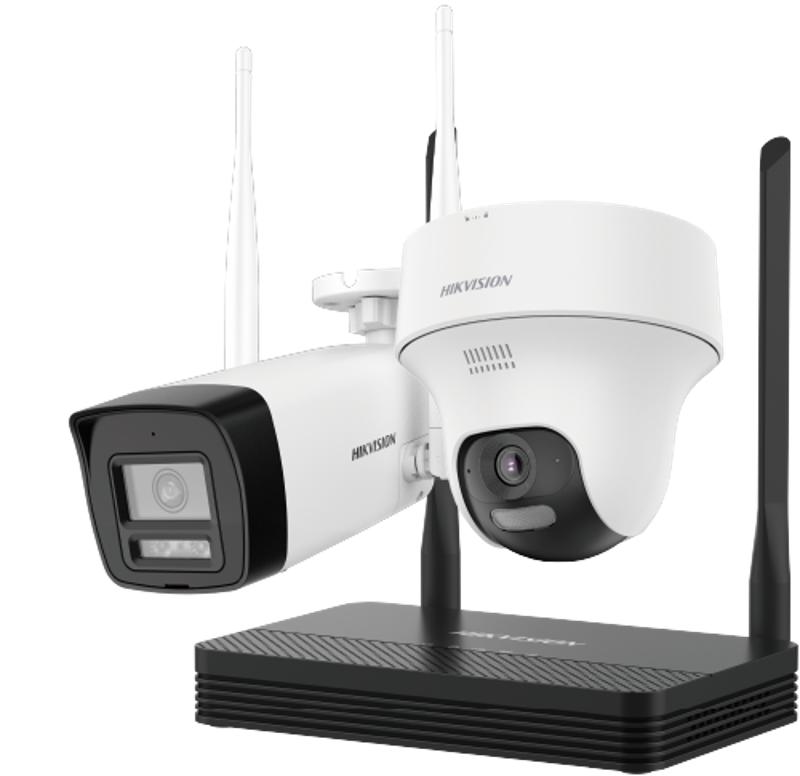

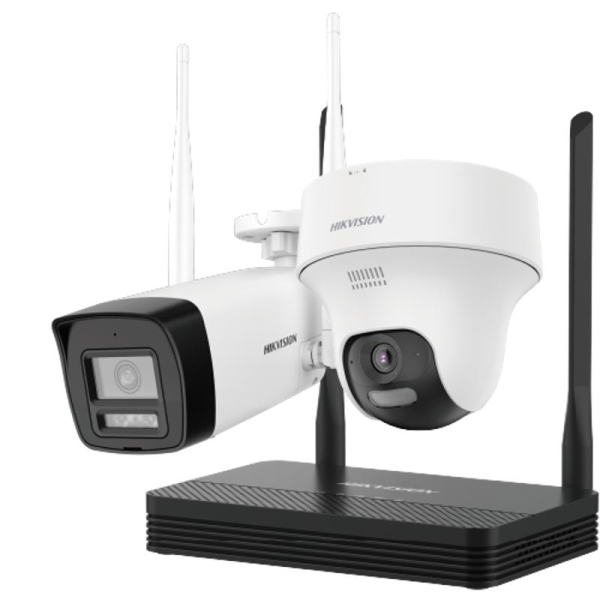

HIKVISION Cable free Series-Hikvision EasyLink Wi-Fi Kit
Available on backorder
Hikvision EasyLink Wi-Fi Kit (e.g., NKS424W02H) is a 4 MP wireless security solution with NVS storage (up to 512 GB), Wi-Fi 6, Smart Hybrid Light (30m), human/vehicle detection, two-way audio, and IP66 protection, ideal for homes and businesses.
The Hikvision EasyLink Wi-Fi Kit is a wireless surveillance solution designed for small to medium-sized businesses, homes, retail stores, and cafés, offering secure and efficient video security without complex wiring. It features centralized Network Video Storage (NVS) for safe recording, supporting up to 512 GB via microSD cards without additional costs. The kit leverages Wi-Fi 6 technology for faster, more stable connections, reducing latency and buffering, and allows multiple devices to connect simultaneously without performance loss. Configuration is streamlined through the Hik-Connect app, enabling instant device addition with a single scan, eliminating the need for manual camera setup. The kit includes cameras (e.g., 4 MP bullet and dome types in models like NKS424W02H) with Smart Hybrid Light technology for up to 30 meters of illumination (IR and white light), human and vehicle detection, two-way audio, and IP66/IP67 weatherproofing for reliable indoor and outdoor use. It supports remote monitoring, intelligent motion detection with mobile alerts, and H.265+ compression for efficient bandwidth and storage use. The system has no specific anti-corrosion protection, making it suitable for general environments
Technical Specification Summary
-
Camera Specifications (based on NKS424W02H and similar models):
-
Image Sensor: 1/2.7″ Progressive Scan CMOS (based on DS-2DE2C400MWG-4G)
-
Max. Resolution: 2560 × 1440 (4 MP for bullet and dome cameras)
-
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
-
Lens: Fixed focal lens, 2.8 mm (FOV: 94° horizontal, 49° vertical) or 4 mm (FOV: 70° horizontal, 35° vertical)
-
Illumination: IR and White Light (Smart Hybrid Light), up to 30 m
-
PTZ (if included, e.g., DS-2DE2C200MWG/W): Pan: 0° to 345°, Tilt: 0° to 80°, Pan Speed: up to 25°/s, Tilt Speed: up to 20°/s
-
-
Video:
-
Compression: H.265+/H.265/H.264 (main stream), H.265/H.264/MJPEG (sub-stream)
-
Frame Rate: Main stream: 20 fps (50 Hz/60 Hz) at 2560 × 1440; Sub-stream: 20 fps (50 Hz/60 Hz) at 768 × 432
-
-
Audio: Mono sound, built-in microphone and speaker (1.5 W, 95 dB at 10 cm), G.711/AAC-LC compression
-
Storage: MicroSD/microSDHC/microSDXC card, up to 512 GB; NVS supports up to 1 TB (dual slots) or NVR with HDD up to 8 TB
-
Network:
-
Wireless: Wi-Fi 6 (IEEE 802.11b/g/n/ax, 2.4 GHz), 150 Mbps transmission speed
-
Mobile Communication: 4G LTE (LTE-FDD: B1/3/5/8 for IN, uplink: 5.1 Mbps, downlink: 10.3 Mbps)
-
Ethernet: 1 RJ45 10 M/100 M self-adaptive port
-
Security: Password protection, HTTPS encryption, watermark, HTTP/HTTPS authentication
-
-
Power: 12 VDC ± 25%, max. 9 W (switching adapter included)
-
Protection: IP66 (water and dust resistant)
-
Dimensions (Cameras): Varies by model, e.g., 131.9 mm × 164 mm × 312.6 mm (PTZ models)
-
Weight (Cameras): Approx. 600 g (1.32 lb.)
-
Operating Conditions: -30°C to 40°C, humidity ≤ 95% (non-condensing)
-
NVS Specifications (based on kit details):
-
Channels: 4 channels
-
Resolution Support: Up to 6 MP/5 MP/4 MP/3 MP/1080p
-
Dimensions: Approx. 163 mm × 125 mm × 26 mm
-
Weight: Approx. 500 g
-
https://assets.hikvision.com/prd/public/all/doc/m000126326/NKS422W02H_Datasheet_20240605.pdf
