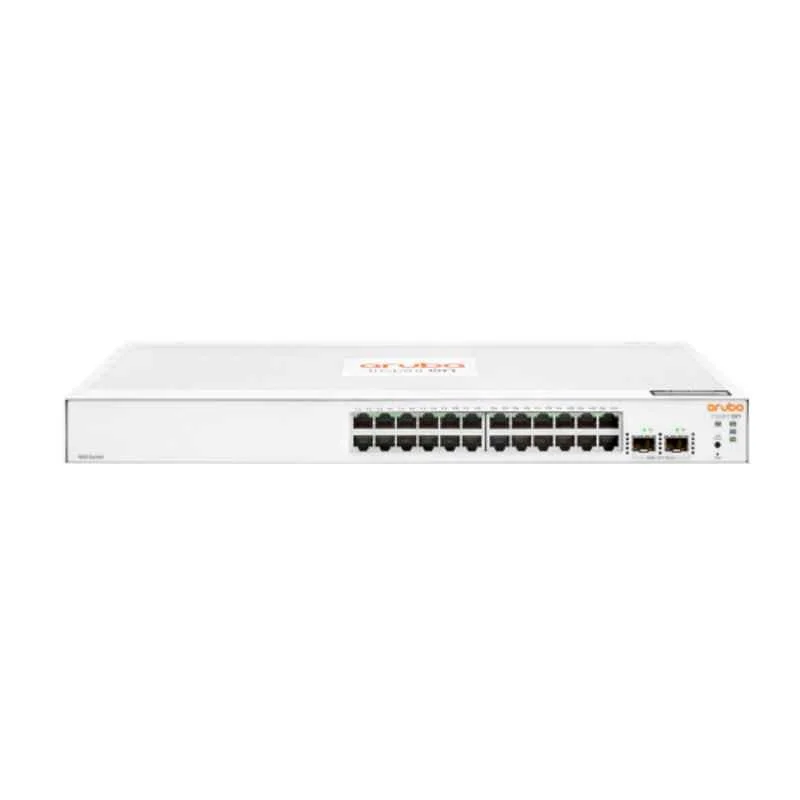

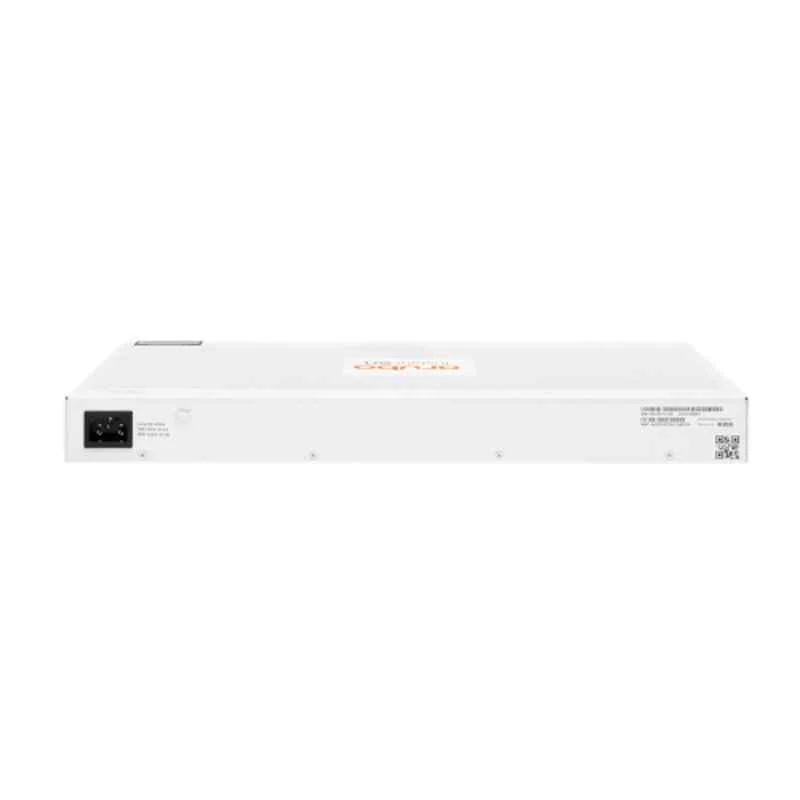

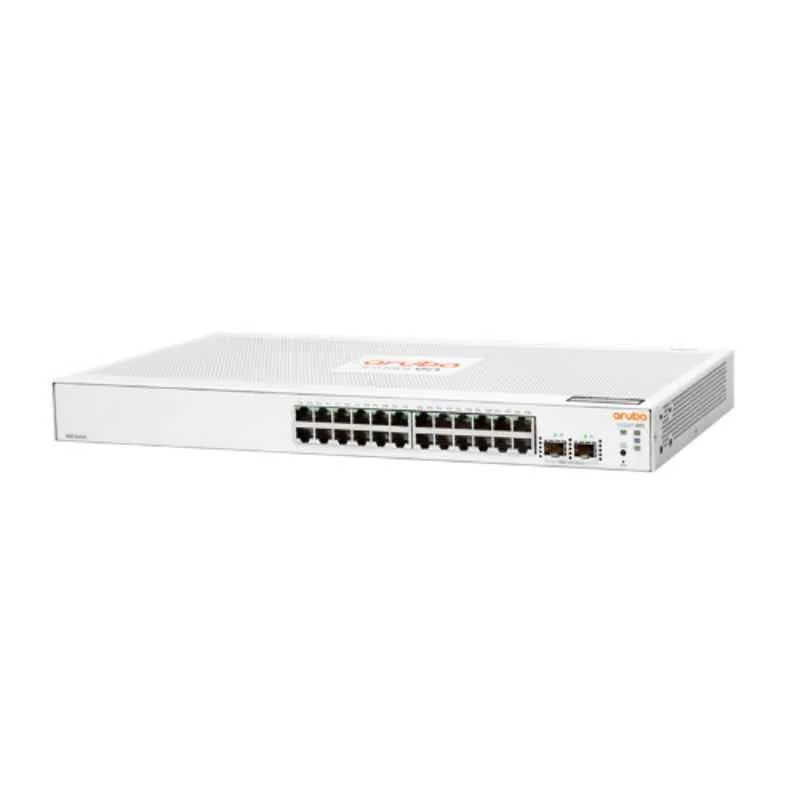

HPE Aruba Instant On 1830 24 Port 2SFP Network Switch, JL812A
₹18,000.00 ₹22,000.00
The HPE Aruba Instant On 1830 24G 2SFP Switch (JL812A) is a smart-managed, entry-level Layer 2 Ethernet switch designed for small businesses seeking an affordable, easy-to-deploy, and secure wired network solution. Featuring 24 Gigabit Ethernet ports and 2 SFP 1GbE ports for fiber connectivity, it supports evolving network demands with flexible management options, including the Aruba Instant On mobile app, cloud-based web portal, or local web GUI. The fanless design ensures silent operation, making it ideal for acoustically sensitive environments like offices or retail spaces. Advanced security features such as VLANs, Global Storm Control, Trusted Platform Module (TPM), and automatic Denial-of-Service (DoS) protection safeguard your network. Energy-efficient technologies, including IEEE 802.3az and auto-port shutdown, reduce power consumption, while the switch supports jumbo frames and Quality of Service (QoS) for optimized performance. With a limited lifetime warranty and no licensing fees, this switch delivers reliable, cost-effective connectivity for small businesses
Technical Specification
- Ports: 24 x RJ-45 10/100/1000 Mbps autosensing ports, 2 x SFP 1GbE ports
- Switching Capacity: 52 Gbps
- Throughput: 38.68 Mpps
- Processor: ARM Cortex-A9 @ 800 MHz
- Memory: 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer
- Power Consumption: Max: 19.1W (100-127V), 19W (200-220V); Idle: 7.6W (100-127V), 7.8W (200-220V)
- Input Voltage: 100 – 240 VAC
- Management: Aruba Instant On cloud (mobile app/web portal), local web GUI, SNMP
- Security: IEEE 802.1x, VLANs, Global Storm Control, TPM-based security, DoS protection
- Energy Efficiency: IEEE 802.3az (EEE), auto-port shutdown, fanless design
- Mounting: Rackmount (1U), tabletop, wall, under-table (ports up/down)
- Dimensions: 21.59 cm (D) x 44.30 cm (W) x 4.39 cm (H)
- Weight: 2.49 kg
- Warranty: Limited Lifetime
