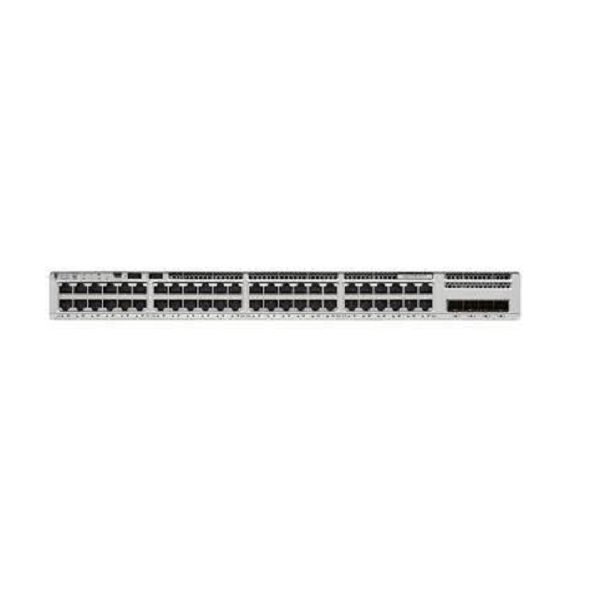

Cisco Catalyst 9200 Series 48-Port Network Switch – Reliable Gigabit for SMB & Branch Offices
Cisco Catalyst 9200 Series 48-Port Network Switch offers secure, high-performance Gigabit connectivity for SMBs and branch offices. Designed for scalability, reliability, and advanced network management.
High-Performance Networking for Growing Businesses
The Cisco Catalyst 9200 Series 48-Port Network Switch is engineered for small to medium-sized businesses and branch offices that demand enterprise-grade networking. With 48 Gigabit Ethernet ports, it supports high-speed data transfer for connected devices, ensuring smooth operations even during peak workloads.
This switch provides exceptional reliability, offering always-on connectivity to support business-critical applications like VoIP, video conferencing, and cloud services.
Scalable and Secure Network Infrastructure
With Cisco’s advanced security features, the Catalyst 9200 safeguards your network from internal and external threats. Integrated Cisco DNA Center support enables centralized management, making it easier to scale and maintain your infrastructure.
Its modular uplink options, including SFP+, provide flexible connectivity to core networks, ensuring future-proof performance.
Designed for Efficient Management
Cisco’s intent-based networking makes deployment and updates faster while reducing operational complexity. Network administrators can easily configure VLANs, QoS, and ACLs to optimize traffic flow and prioritize critical business applications.
The switch’s fanless or energy-efficient cooling system minimizes operational noise and lowers energy costs, making it ideal for office environments.
Key Benefits
-
48 Gigabit Ethernet ports for fast, reliable connectivity.
-
Enhanced Layer 2 and Layer 3 features for improved performance.
-
Integrated security to protect against cyber threats.
-
Easy management with Cisco DNA Center.
-
Scalable design suitable for future expansion.
Conclusion: Power, Security, and Reliability in One
The Cisco Catalyst 9200 Series 48-Port Network Switch delivers the speed, security, and scalability that growing businesses need. Whether you’re running cloud workloads, supporting remote teams, or enabling smart office solutions, this switch provides a rock-solid foundation for your network.
Download Cisco Catalyst 9200 Series Switches Data Sheet (PDF)
Technical Specification:
- Product Type: Layer 3 Managed Switch
- Ports:
- 48 x 10/100/1000Base-T Gigabit Ethernet (RJ-45)
- 4 x 10G SFP+ uplink ports
- 1 x RJ-45 management port
- Switching Capacity: 176 Gbps (non-blocking)
- Forwarding Rate: 261.9 Mpps (64-byte packets)
- Layer Support: Layer 2 and Layer 3 (static routing, RIP, OSPF, EIGRP for routed access)
- MAC Address Table: 32,000 entries
- VLAN Support: Up to 4,096 VLANs, voice VLAN, guest VLAN
- Jumbo Frames: Up to 9,198 bytes
- Memory: 2 GB DRAM, 4 GB flash
- Processor: UADP 2.0 Mini with integrated CPU
- Power over Ethernet (PoE): Not supported (data-only model)
- Power Supply:
- Default: 1 x PWR-C5-125WAC (125W AC)
- Redundant: 2 x slots (options: PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-BLANK)
- Power Consumption: 38W (typical, no PoE)
- Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet, per-port power control
- Cooling: Fixed redundant fans
- Stacking: StackWise-160 (up to 8 units, 160 Gbps bandwidth) via C9200L-STACK-KIT (not included)
- Stacking Cables: STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M (not included)
- Management: Cisco Catalyst Center, web-based UI, CLI, SNMP, Cisco Network Plug and Play (PnP)
- Security Features:
- AES-128 MACsec encryption, policy-based segmentation
- IEEE 802.1X, port security, DHCP snooping
- IP-MAC binding, IPv6 First Hop Security
- Quality of Service (QoS): 802.1p, DSCP, DiffServ, policing, shaping, VoIP optimization
- Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3ae, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w, 802.1s, 802.1X, 802.3az
- Dimensions: 445 x 288 x 44 mm (17.5 x 11.3 x 1.73 in)
- Weight: 4.8 kg (10.58 lb)
- Mounting: Rack-mountable (1U)
- Operating Temperature: -5°C to 45°C (23°F to 113°F)
- MTBF: 609,660 hours
- Certifications: UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1, CE marking
- Warranty: Limited lifetime
