Hardware, Router
Juniper MX Series Universal Routing Platforms
Availability:
Available on backorder
- MX304: Compact 4.8 Tbps router with 1/10/25/50/100/400GbE ports. Ideal for metro edge with MPLS and Segment Routing.
- MX960: Scalable 7.5 Tbps router with 1/10/40/100GbE ports. Suits core/edge with Layer 2/3 and CGNAT.
- MX10003: Cost-effective 2.4 Tbps router with 1/10/40/100GbE ports. Built for edge/metro with MACsec and MPLS.
- MX2008: High-density 16 Tbps router with 1/10/40/100/400GbE ports. Enables edge/core services with automation.
- MX2010: Modular 40 Tbps router with 1/10/40/100/400GbE ports. Ideal for core/edge and data center interconnects.
- MX2020: Premium 80 Tbps router with 1/10/40/100/400GbE ports. Suits high-traffic core/edge with IPsec.
- MX10004: Modular 38.4 Tbps router with 1/10/25/40/100/400GbE ports. Designed for core/edge and cloud services.
- MX10008: High-density 76.8 Tbps router with 1/10/25/40/100/400GbE ports. Ideal for hyperscale data centers.
- MX10016: Premium 153.6 Tbps router with 1/10/25/40/100/400GbE ports. Suits hyperscale core/edge with MACsec.
- vMX Virtual Router: Virtual 100 Gbps router for x86/cloud. Supports Layer 2/3, MPLS, and NFV/SD-WAN.
Compare
- MX304: Compact 2 RU router with 4.8 Tbps, supporting 1/10/25/50/100/400GbE ports. Ideal for metro Ethernet and edge services with Junos OS, MPLS, and Segment Routing.
- MX960: Scalable 14 RU router with 7.5 Tbps, offering 1/10/40/100GbE ports. Suits core/edge routing with Layer 2/3, MPLS, and CGNAT for service providers.
- MX10003: Cost-effective 3 RU router with 2.4 Tbps, supporting 1/10/40/100GbE ports. Designed for edge/metro services with MPLS and inline MACsec.
- MX2008: High-density 10 RU router with 16 Tbps, supporting 1/10/40/100/400GbE ports. Enables edge/core services with MPLS and automation.
- MX2010: Modular 24 RU router with 40 Tbps, offering 1/10/40/100/400GbE ports. Ideal for core/edge and data center interconnects with Layer 2/3 services.
- MX2020: Premium 45 RU router with 80 Tbps, supporting 1/10/40/100/400GbE ports. Suits high-traffic core/edge services with MPLS and IPsec.
- MX10004: Modular 7 RU router with 38.4 Tbps, supporting 1/10/25/40/100/400GbE ports. Designed for core/edge and cloud interconnects with Segment Routing.
- MX10008: High-density 13 RU router with 76.8 Tbps, offering 1/10/25/40/100/400GbE ports. Ideal for core/edge and hyperscale data centers.
- MX10016: Premium 21 RU router with 153.6 Tbps, supporting 1/10/25/40/100/400GbE ports. Suits hyperscale core/edge with MPLS and MACsec.
- vMX Virtual Router: Software-based router with up to 100 Gbps on x86 servers/cloud. Supports Layer 2/3, MPLS, and CGNAT for NFV and SD-WAN.

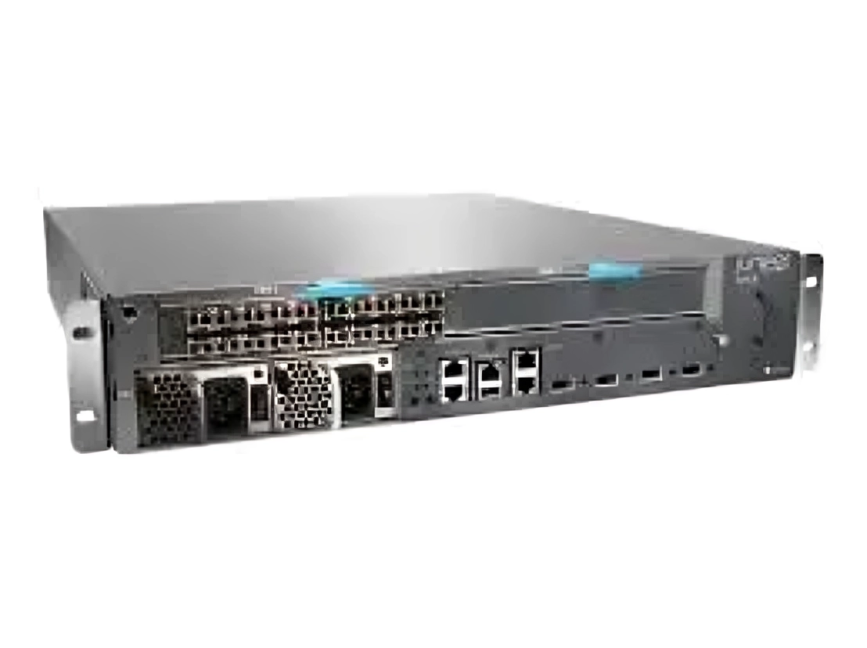

MX304
- Form Factor: 2U fixed
- Port Configuration: 96x 10/25GbE, 48x 40/50/100GbE, or 12x 400GbE
- Throughput: 4.8 Tbps (system capacity)
- Processor: Advanced Forwarding Toolkit (AFT) with Penta Silicon
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, embedded MACsec/IPsec, BPDU protection, Junos Telemetry, OpenConfig
- Power Consumption: Not specified (dual PSU supported)
- Cooling: Front-to-back airflow, redundant fans
- Operating System: Junos OS
- Use Case: Cloud, campus, enterprise, data center, service provider edge, mobile core
MX960
- Form Factor: 14U modular
- Port Configuration: Up to 12x Flexible Port Concentrators (FPCs), supports 10/40/100GbE (specific counts via line cards)
- Throughput: 10.56 Tbps (with enhanced SCBs and MPCs)
- Processor: Trio chipset
- Switch Fabric: 3x SCBs (2+1 redundancy), 6x fabric planes
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, Virtual Chassis, sFlow, TCP-AO, OpenConfig, NSR
- Power Consumption: ~4100W (fully loaded, 4x AC PSU)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Large service provider, enterprise, data center edge/core
MX10003
- Form Factor: 3U fixed
- Port Configuration: 160x 10GbE, 80x 40GbE, 72x 100GbE, or 24x 400GbE
- Throughput: 2.4 Tbps (system capacity)
- Processor: Trio chipset
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, TCP-AO, OpenConfig, NSR, high-density interfaces
- Power Consumption: Not specified (dual PSU supported)
- Cooling: Front-to-back airflow, redundant fans
- Operating System: Junos OS
- Use Case: Service provider, cloud operator, enterprise edge/core
MX2008
- Form Factor: 10U modular
- Port Configuration: Up to 192x 10GbE, 96x 40GbE, or 80x 100GbE (via line cards)
- Throughput: 9 Tbps (system capacity)
- Processor: Trio chipset
- Switch Fabric: 8x Switch Fabric Boards (SFBs), 8x fabric planes
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, embedded MACsec/IPsec, OpenConfig, NSR
- Power Consumption: Not specified (6x PSU bays)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Cloud, data center, service provider, mobile core
MX2010
- Form Factor: 34U modular
- Port Configuration: Up to 400x 100GbE or 80x 400GbE (via line cards)
- Throughput: 40 Tbps (system capacity)
- Processor: Trio chipset
- Switch Fabric: 8x SFBs, 8x fabric planes
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, Virtual Chassis, TCP-AO, OpenConfig, NSR, FAT label load balancing
- Power Consumption: ~12,000W (fully loaded, 8x AC PSU)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Large service provider, cloud, data center edge/core
MX2020
- Form Factor: 45U modular
- Port Configuration: Up to 800x 100GbE or 160x 400GbE (via line cards)
- Throughput: 80 Tbps (system capacity)
- Processor: Trio chipset
- Switch Fabric: 8x SFBs, 8x fabric planes
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, Virtual Chassis, TCP-AO, OpenConfig, NSR, FAT label load balancing
- Power Consumption: ~16,000W (fully loaded, 10x AC PSU)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Large service provider, cloud, data center edge/core
MX10004
- Form Factor: 7U modular
- Port Configuration: Supports dense 100/400GbE, future 800GbE (specific counts via line cards)
- Throughput: Up to 9.6 Tbps (system capacity)
- Processor: Not specified (uses advanced ASICs)
- Switch Fabric: Not specified (modular chassis design)
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, embedded MACsec/IPsec, OpenConfig, QoS telemetry
- Power Consumption: Not specified (power-optimized design)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Service provider, cloud, multi-service edge
MX10008
- Form Factor: 13U modular
- Port Configuration: Up to 192x 100GbE, 192x 40GbE, or 768x 10GbE
- Throughput: 19.2 Tbps (system capacity)
- Processor: Not specified (uses advanced ASICs)
- Switch Fabric: Not specified (modular chassis design)
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, embedded MACsec/IPsec, OpenConfig, QoS telemetry, SRv6
- Power Consumption: Not specified (power-optimized design)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Service provider, cloud, high-density data center
MX10016
- Form Factor: 21U modular
- Port Configuration: Up to 384x 100GbE, 384x 40GbE, or 1536x 10GbE
- Throughput: 38.4 Tbps (system capacity)
- Processor: Not specified (uses advanced ASICs)
- Switch Fabric: Not specified (modular chassis design)
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, embedded MACsec/IPsec, OpenConfig, QoS telemetry, SRv6
- Power Consumption: Not specified (power-optimized design)
- Cooling: Redundant, variable-speed fans
- Operating System: Junos OS
- Use Case: Ultra-high-capacity service provider, cloud, data center
vMX Virtual Router
- Form Factor: Virtual (VMware, KVM, AWS, Azure, Google Cloud)
- Port Configuration: Virtual interfaces (up to 10 vNICs, depending on hypervisor)
- Throughput: Up to 40 Gbps (varies by instance size and licensing)
- Processor: Virtualized Trio chipset
- Features: EVPN-VXLAN, MPLS, SR-TE with Flex Algo, OpenConfig, Virtual Chassis, full MX feature set
- Power Consumption: N/A (virtual)
- Cooling: N/A
- Operating System: Junos OS
- Use Case: Cloud, virtualized data centers, hybrid environments
