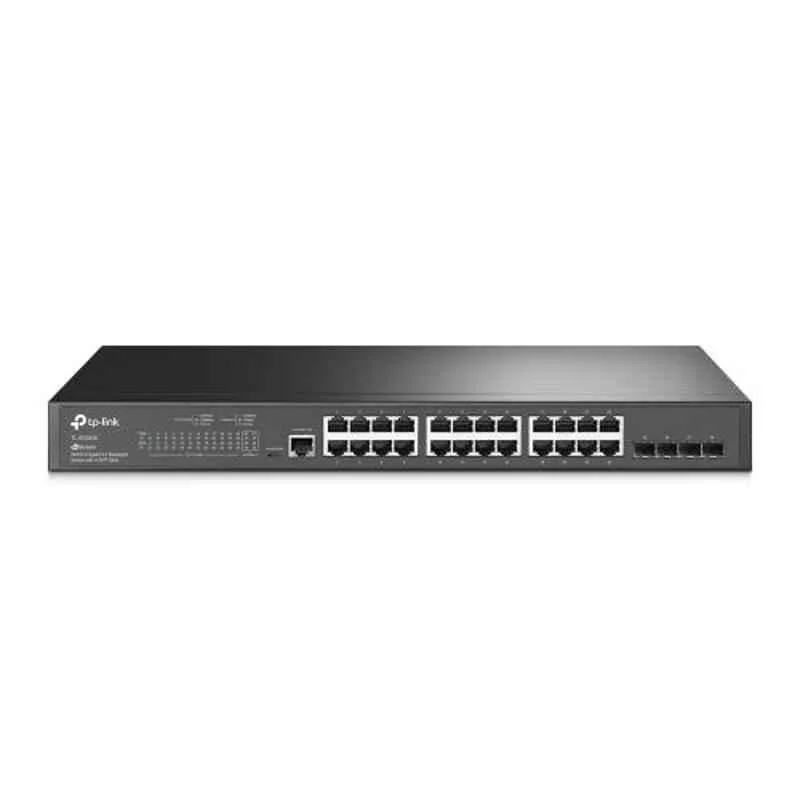

TP-Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch
The TP-Link TL-SG3428 offers 24 Gigabit RJ45 ports, 4 SFP slots, and L2+ features like static routing. Omada SDN-managed and fanless, it’s ideal for VoIP and surveillance.
₹10,600.00 ₹12,500.00
The TP-Link TL-SG3428 JetStream 24-Port Gigabit L2+ Managed Switch is a high-performance, enterprise-grade solution for small to medium businesses, offering 24 Gigabit RJ45 ports and 4 Gigabit SFP slots for fiber uplinks, with a 56 Gbps switching capacity for non-blocking performance. Integrated with the Omada SDN platform, it supports centralized cloud management via the Omada app, web GUI, or controller, featuring advanced L2+ and L3 capabilities like static routing, 802.1Q VLAN (up to 4,000), QoS (L2/L3/L4), IGMP Snooping, and Link Aggregation. Security features include IP-MAC-Port Binding, Port Security, DHCP Snooping, and 802.1x authentication. Management options include CLI, SNMP, and RMON, with Zero-Touch Provisioning for easy setup. Its fanless, rack-mountable metal casing ensures silent operation, though some users note complex configurations for advanced features. Ideal for VoIP, surveillance, and high-speed networks, the TL-SG3428 is backed by a 5-year limited warranty.
-
Device Type: JetStream Gigabit L2+ Managed Switch
-

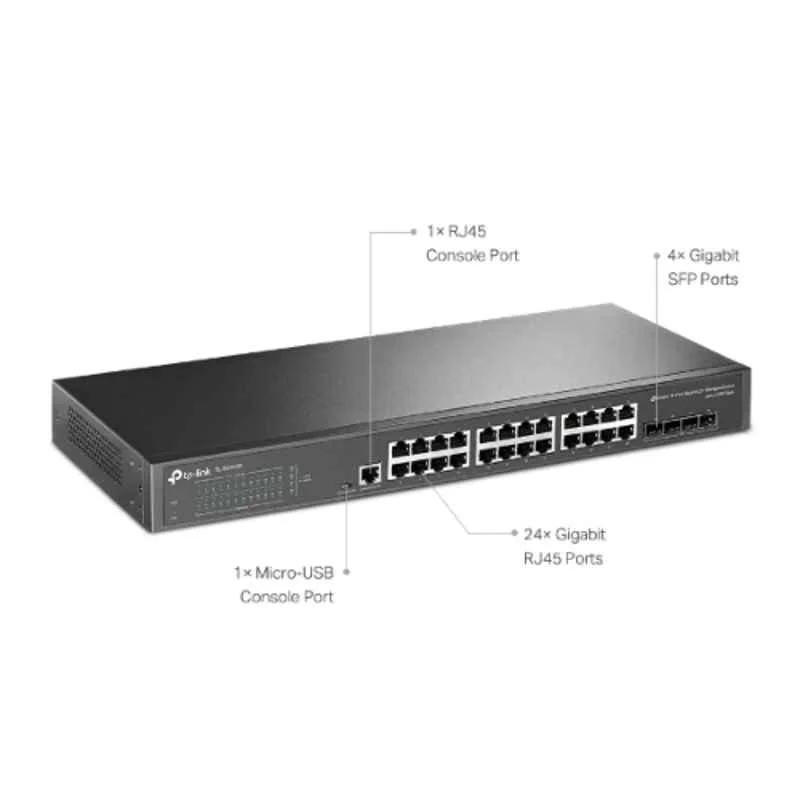

Ports: 24 x 10/100/1000 Mbps RJ45 (auto-negotiation, Auto-MDI/MDIX), 4 x Gigabit SFP slots, 1 x RJ45 Console Port, 1 x Micro-USB Console Port
-
Switching Capacity: 56 Gbps
-
Forwarding Rate: 41.66 Mpps
-
MAC Address Table: 8,000 entries
-
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
-
Management Features: 802.1Q VLAN (up to 4,000), L2+ static routing, QoS (L2/L3/L4, 802.1p/DSCP), IGMP Snooping (v1/v2/v3), Link Aggregation, STP/RSTP/MSTP, ACL, IP-MAC-Port Binding, Port Security, Storm Control, DHCP Snooping, 802.1x, AAA, IPv6, MLD Snooping, Port Mirroring
-
Management: Omada SDN (app, web, controller, cloud access, Zero-Touch Provisioning), standalone web GUI, CLI, SNMP (v1/v2c/v3), RMON
-
Packet Buffer: 4.1 Mb
-
Jumbo Frame: Up to 9 KB
-
Power: 100–240V AC, 50/60 Hz, internal power supply
-
Power Consumption: Max: 19.22W
-
Cooling: Fanless, silent operation
-
Dimensions: 440 mm (W) x 180 mm (D) x 44 mm (H)
-
Weight: 2.8 kg
-
Operating Temperature: 0°C to 45°C
-
Certifications: CE, FCC, RoHS
-
Warranty: 5-year limited
